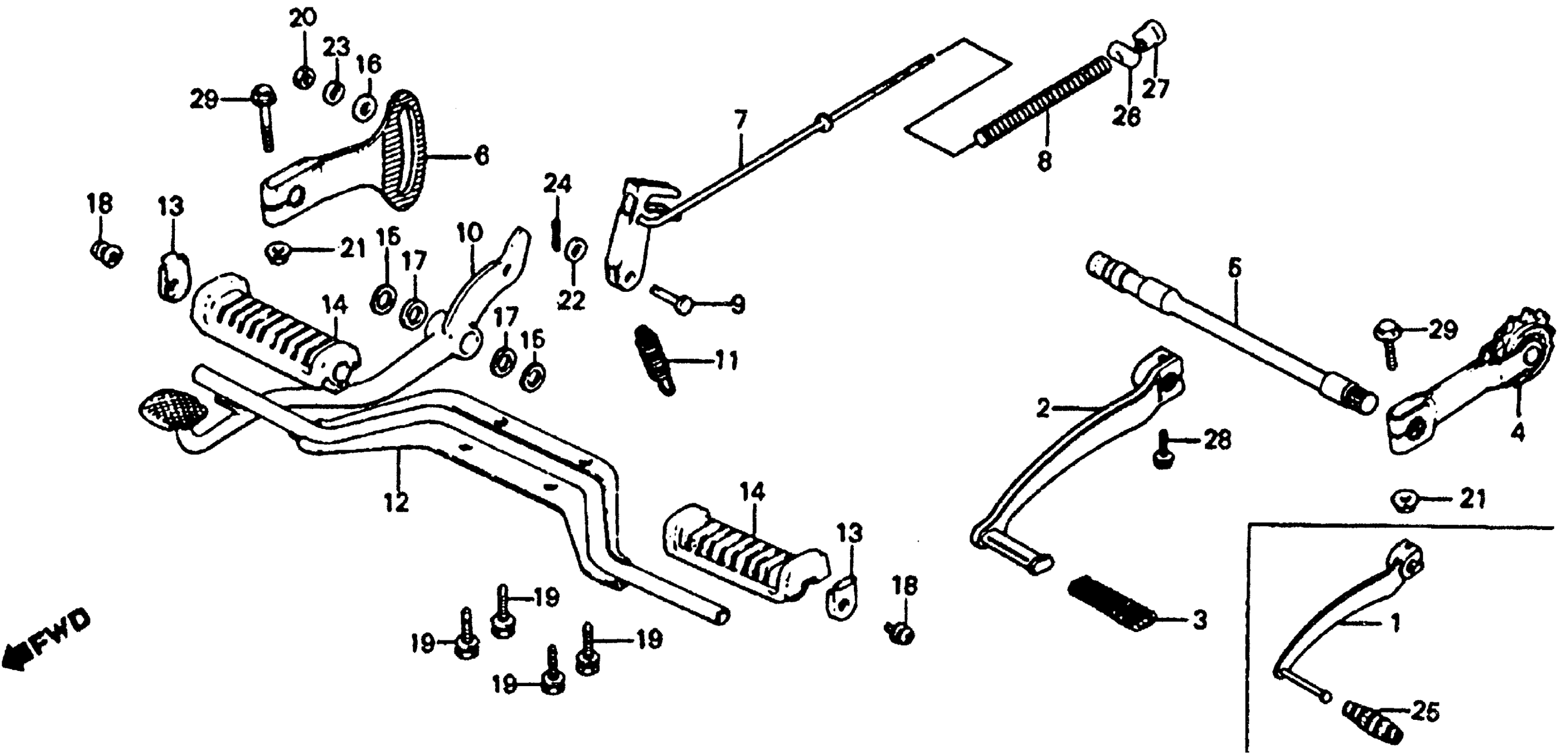

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 STEP + GEARSHIFT PEDAL + BRAKE PEDAL Diagram

#

Description
Price

2

PEDAL, GEARSHIFT

24700-943-020

Unavailable

3

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

4

TENSIONER, CHAIN (NOT AVAILABLE)

40500-918-000

Unavailable

5

SHAFT, TENSIONER

40511-918-040

Unavailable

6

ARM, TENSIONER LOCK

40512-943-010

Unavailable

7

LEVER, ESCAPE (NOT AVAILABLE)

43470-918-000

$15.57

8

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.49

8

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

8

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

8

SPRING A, BRAKE ROD

95014-73100

$1.49

9

SHAFT, ESCAPE (NOT AVAILABLE)

43472-918-000

Unavailable

10

PEDAL, BRAKE (NOT AVAILABLE)

46500-943-000

Unavailable

11

SPRING, BRAKE PEDAL

46514-VM3-000

Unavailable

11

SPRING, BRAKE PEDAL This part replaces 46514-942-000.

46514-VM3-000

Unavailable

12

BAR, STEP (NOT AVAILABLE) This part replaces 50610-943-020.

50610-943-305

Unavailable

12

BAR, STEP (NOT AVAILABLE)

50610-943-305

Unavailable

13

STOPPER, STEP RUBBER (NOT AVAILABLE)

50651-943-000

Unavailable

14

RUBBER, STEP (NOT AVAILABLE)

50661-943-010

Unavailable

16

WASHER, PLAIN (10MM)

90401-437-000

$2.67

18

BOLT-WASHER (6X12)

93402-06012-08

$1.62

18

BOLT-WASHER (6X12) This part replaces 93412-06012-08.

93402-06012-08

$1.62

18

BOLT-WASHER (6X12) This part replaces 93492-06012-08.

93402-06012-08

$1.62

19

BOLT-WASHER (8X20)

93402-08020-08

$1.79

19

BOLT-WASHER (8X20) This part replaces 93492-08020-08.

93402-08020-08

$1.79

20

NUT, FLANGE (10MM)

94050-10000

$1.59

21

NUT, FLANGE (6MM)

94050-06080

$1.49

22

WASHER, PLAIN (8MM)

94101-08800

$1.93

23

WASHER, SPRING (10MM)

94111-10800

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

24

PIN, SPLIT (2.0X22)

94201-20220

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

24

PIN, COTTER (2.0X35)

94201-20350

$1.49

24

PIN, COTTER (2.0X22)

94201-29220

$1.49

26

JOINT A, BRAKE ARM

95015-31001

$1.53

27

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

28

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

28

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

29

BOLT, FLANGE (6X35) This part replaces 95700-06035-08.

95701-06035-08

$1.79

29

BOLT, FLANGE (6X35)

95701-06035-08

$1.79
