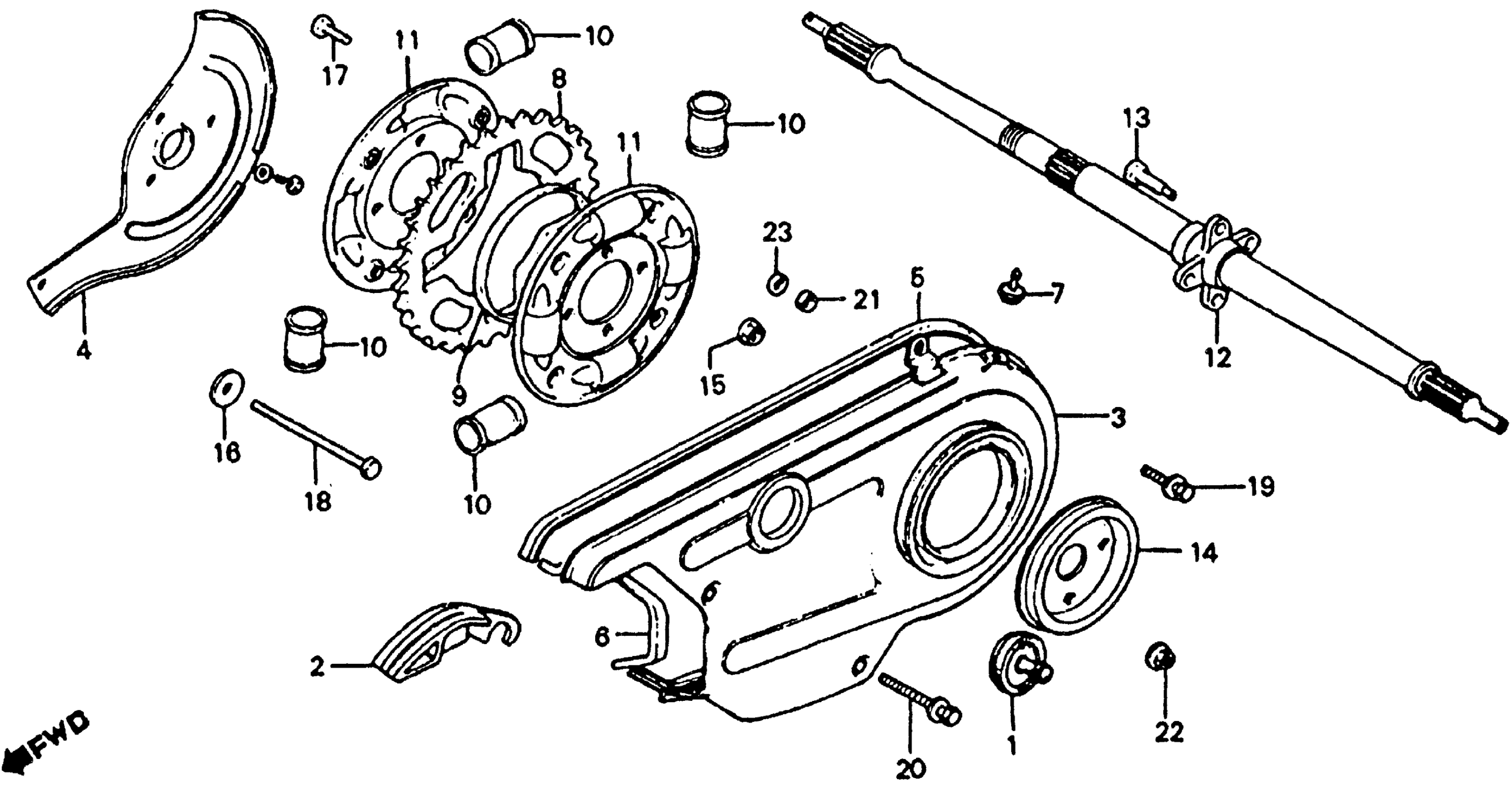

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 REAR WHEEL AXLE + CHAIN CASE 79-83 Diagram

CAP, CHAIN

40529-958-010

Unavailable

GUIDE, DRIVE CHAIN

40513-943-000

Unavailable

CASE, DRIVE CHAIN This part replaces 40521-943-030.

40521-943-405

Unavailable

COVER, SUB-CHAIN (NOT AVAILABLE)

40523-943-010

Unavailable

SEAL A, CHAIN CASE (NOT AVAILABLE)

40524-918-300

Unavailable

SEAL B, CHAIN CASE (NOT AVAILABLE)

40525-918-300

Unavailable

CAP, CHAIN

40545-958-000

Unavailable

SPROCKET, FINAL DRIVEN (49T)

41201-942-000

Unavailable

SPROCKET, FINAL DRIVEN (49T) This part replaces 41201-943-000.

41201-942-000

Unavailable

RING, SPROCKET

41202-942-000

Unavailable

RUBBER, DAMPER

41241-943-003

$15.28

HOLDER, DAMPER

41245-942-000

Unavailable

HOLDER, DAMPER This part replaces 41245-943-000.

41245-942-000

Unavailable

AXLE, RR. WHEEL

42310-943-010

Unavailable

BOLT, DRIVE FLANGE

42316-942-000

Unavailable

PLATE, SHIELD (NOT AVAILABLE)

42327-943-000

Unavailable

NUT, SELF-LOCK (10MM)

90212-671-005

$1.49

WASHER (8.5MM)

90521-259-000

$1.92

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

BOLT, HEX. (6X12)

92101-06012-0H

$1.49

BOLT, HEX. (8X120) This part replaces 92000-08120-0H.

92101-08120-0H

$3.61

BOLT, HEX. (8X120)

92101-08120-0H

$3.61

BOLT-WASHER (6X12)

93401-06012-08

$1.55

BOLT-WASHER (6X12) This part replaces 93491-06012-08.

93401-06012-08

$1.55

BOLT-WASHER (6X50) (NOT AVAILABLE)

93491-06050-08

Unavailable

NUT, HEX. (6MM)

94001-06080-0S

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, SPRING (6MM)

94111-06800

$1.49
