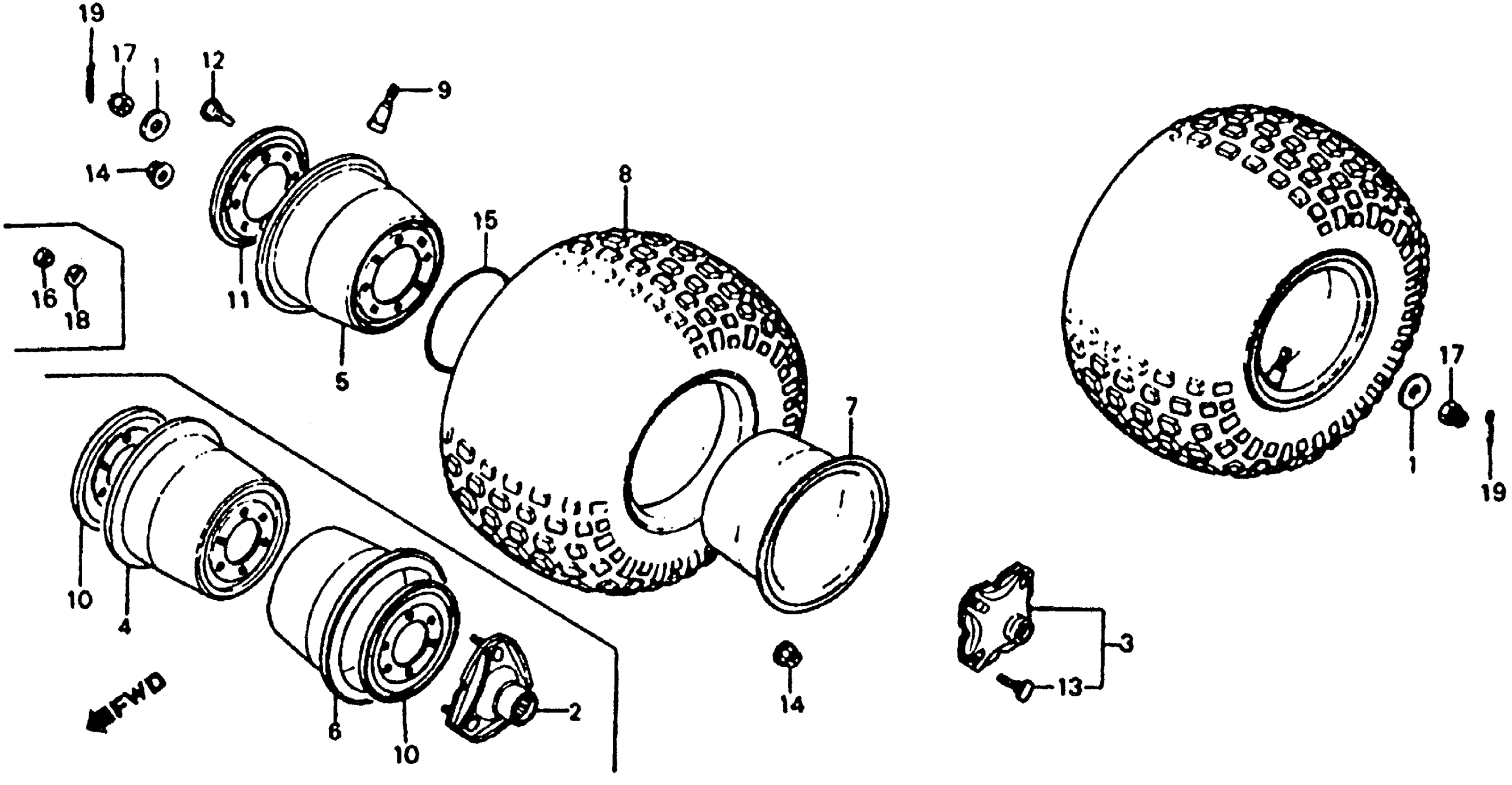

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 REAR WHEEL Diagram

WASHER (14MM)

42322-950-000

$3.97

HUB, RR. WHEEL (NOT AVAILABLE)

42410-958-671

Unavailable

RIM, WHEEL (OUTER) (NOT AVAILABLE)

42712-958-670

Unavailable

RIM, WHEEL (INNER)

42713-958-670

Unavailable

TIRE, WHEEL (22X11-8) (OHTSU) (NOT AVAILABLE) | (Optional). This part replaces 42751-942-811.

42751-961-811

Unavailable

TIRE, WHEEL (22X11.0-8) (OHTSU) (NOT AVAILABLE) | (Optional).

42751-961-811

Unavailable

TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU) This part replaces 42750-968-000.

42750-VM6-681

Unavailable

TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU) This part replaces 42751-950-003.

42750-VM6-681

Unavailable

TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU)

42750-VM6-681

Unavailable

TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU) This part replaces 42750-968-003.

42750-VM6-681

Unavailable

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-634-006.

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-634-007.

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

VALVE, RIM (SCHRADER) This part replaces 42753-937-000.

42753-SB8-661

$1.93

PATCH, RIM SUPPORT *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

44714-958-671ZA

Unavailable

BOLT, WHEEL

90101-942-000

Unavailable

BOLT, HUB (8X25)

90103-943-300

$8.11

O-RING, WHEEL (160X4.2)

91351-958-670

$15.23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, CASTLE (14MM)

94011-14000-0S

$1.80

WASHER, SPRING (8MM)

94111-08000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49
