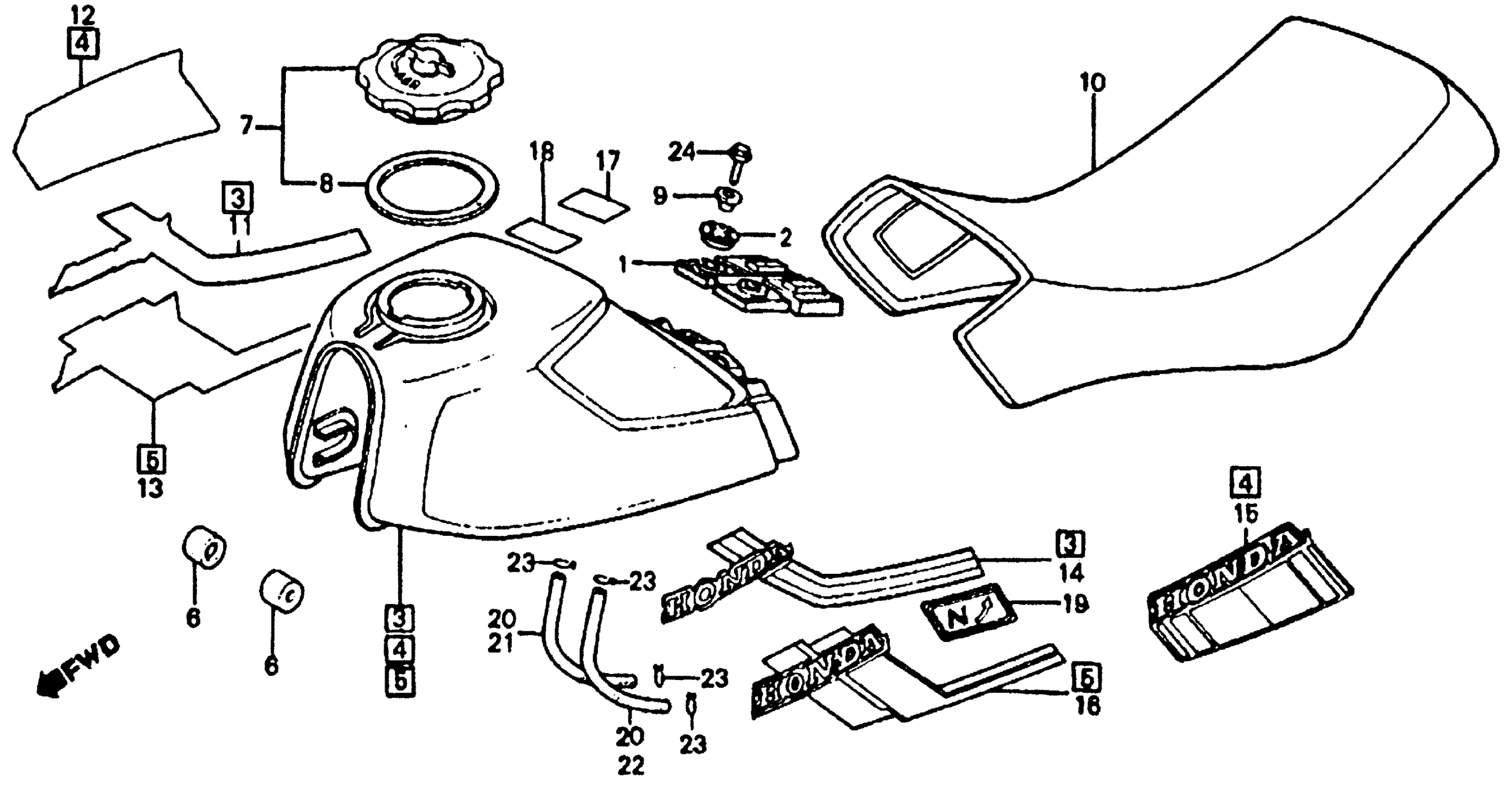

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 FUEL TANK + SEAT 83-85 Diagram

#

Description
Price

1

RUBBER, FUEL TANK CUSHION (NOT AVAILABLE) | Use up to Frame SN DC426693 This part replaces 17506-943-010.

17506-943-020

Unavailable

1

RUBBER, FUEL TANK CUSHION (NOT AVAILABLE)

17506-943-020

Unavailable

3

TANK SUB-ASSY., FUEL *R109* (PASSION RED) (NOT AVAILABLE)

17520-943-050ZA

Unavailable

3

TANK SUB-ASSY., FUEL *PB122* (SUPERIOR BLUE) (NOT AVAILABLE)

17520-943-670ZA

Unavailable

6

RUBBER, FR. FUEL TANK

17611-303-000

$7.63

7

FUEL FILL CAP (TOYOSHA) This part replaces 17620-958-681.

17620-HC3-505

Unavailable

7

FUEL FILL CAP (TOYOSHA) This part replaces 17620-VM5-000.

17620-HC3-505

Unavailable

7

FUEL FILL CAP (TOYOSHA) This part replaces 17620-968-003.

17620-HC3-505

Unavailable

7

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HC3-771.

17620-HC3-505

Unavailable

7

FUEL FILL CAP (TOYOSHA) This part replaces 17620-VM6-013.

17620-HC3-505

Unavailable

8

GASKET This part replaces 17631-958-680.

17631-899-010

$6.32

8

GASKET This part replaces 17631-VM6-300.

17631-899-010

$6.32

8

GASKET This part replaces 17631-899-000.

17631-899-010

$6.32

9

COLLAR, FUEL TANK SETTING

61104-943-000

Unavailable

10

SEAT | Use up to Frame SN DC400010 This part replaces 77100-943-043.

77100-943-405

Unavailable

10

SEAT | Use up to Frame SN DC400010 This part replaces 77100-943-053.

77100-943-405

Unavailable

10

SEAT This part replaces 77100-943-053.

77100-943-405

Unavailable

10

SEAT | Use up to Frame SN DC400010 This part replaces 77100-943-063.

77100-943-405

Unavailable

10

SEAT This part replaces 77100-943-063.

77100-943-405

Unavailable

10

SEAT | Use up to Frame SN DC400010

77100-943-405

Unavailable

10

SEAT

77100-943-405

Unavailable

10

SEAT | Use up to Frame SN DC400010 This part replaces 77100-943-680.

77100-943-405

Unavailable

10

SEAT This part replaces 77100-943-680.

77100-943-405

Unavailable

11

STRIPE, R. FUEL TANK *R109* (PASSION RED) (NOT AVAILABLE)

87123-943-020

Unavailable

11

STRIPE, R. FUEL TANK *PB122* (SUPERIOR BLUE) (NOT AVAILABLE)

87123-943-670

Unavailable

14

STRIPE, L. FUEL TANK *R109* (PASSION RED) (NOT AVAILABLE)

87124-943-020

Unavailable

14

STRIPE, L. FUEL TANK *PB122* (SUPERIOR BLUE) (NOT AVAILABLE)

87124-943-670

Unavailable

18

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87504-130-720ZA

Unavailable

19

LABEL, CHOKE (BLACK) (NOT AVAILABLE)

87545-943-000

Unavailable

19

LABEL, CHOKE (SILVER)

87545-943-670

Unavailable

21

BULK HOSE, FUEL (5.5X3000) (5.3X150)

95001-55003-60M

$47.32

22

BULK HOSE, FUEL (5.5X3000) (5.3X170)

95001-55003-60M

$47.32

23

CLIP, TUBE (B10)

95002-02100

$1.90

24

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

24

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
