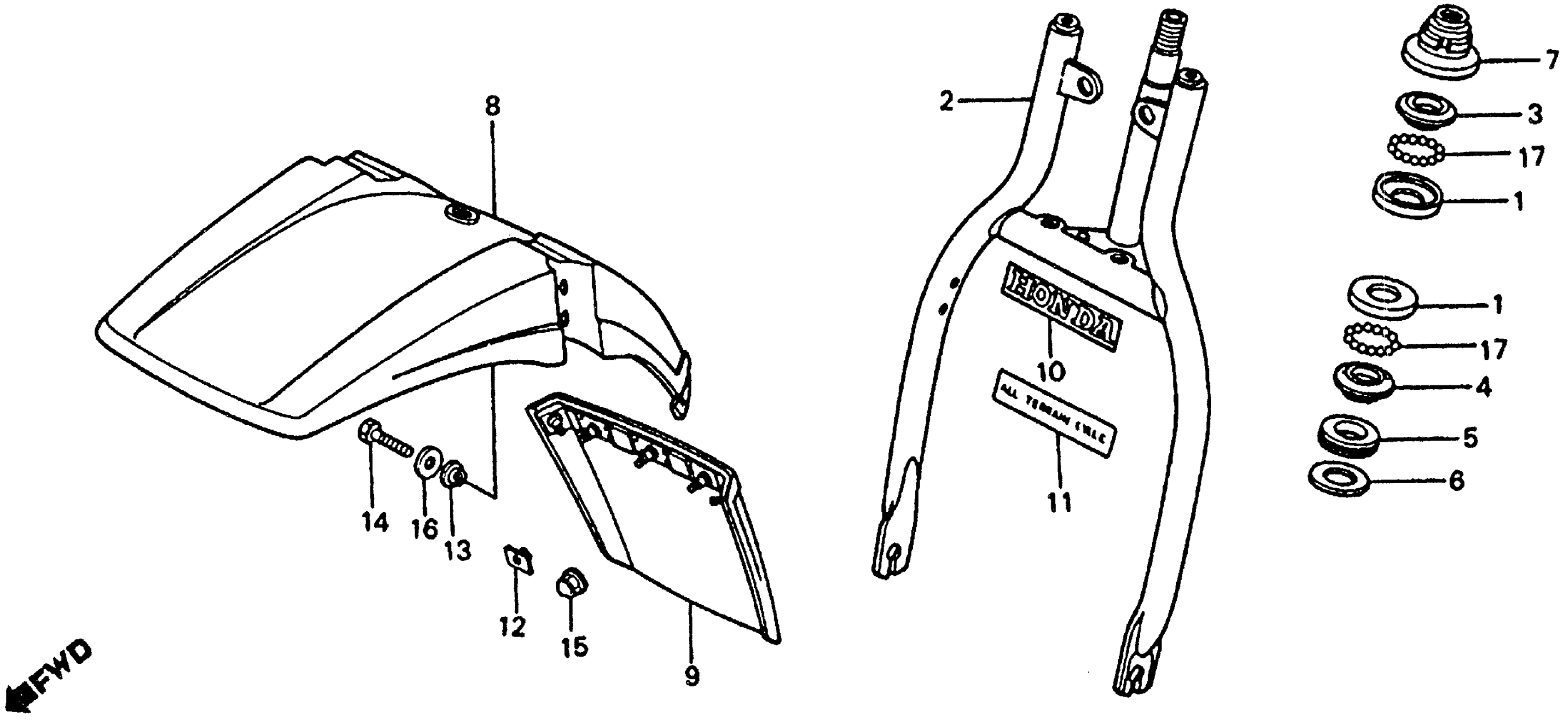

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 FRONT FENDER + FRONT FORK 83-85 Diagram

#

Description
Price

1

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

1

RACE, STEERING BALL

50301-041-010

$12.39

2

FORK, FR. *R109* (PASSION RED) (NOT AVAILABLE)

51400-943-020ZA

Unavailable

2

FORK, FR. *PB122* (SUPERIOR BLUE) (NOT AVAILABLE)

51400-943-020ZB

Unavailable

3

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

3

RACE, STEERING TOP CONE

53211-028-010

$11.09

4

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

4

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

4

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

5

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

6

WASHER, DUST SEAL

53215-GF8-000

$4.17

6

WASHER, DUST SEAL This part replaces 53215-918-000.

53215-GF8-000

$4.17

7

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

8

FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE) This part replaces 61110-943-013ZA.

61110-943-023ZA

Unavailable

8

FENDER, FR. *PB122* (SUPERIOR BLUE) (NOT AVAILABLE) This part replaces 61110-943-013ZB.

61110-943-023ZB

Unavailable

8

FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE)

61110-943-023ZA

Unavailable

8

FENDER, FR. *PB122* (SUPERIOR BLUE) (NOT AVAILABLE)

61110-943-023ZB

Unavailable

9

SPLASH GUARD, FR. | Use up to Frame SN DC439668 This part replaces 61111-943-013.

61111-943-033

Unavailable

9

SPLASH GUARD, FR. | Use up to Frame SN DC439668 This part replaces 61111-943-023.

61111-943-033

Unavailable

9

SPLASH GUARD, FR. | Use from Frame SN DC438669 This part replaces 61111-943-023.

61111-943-033

Unavailable

9

SPLASH GUARD, FR. | Use up to Frame SN DC439668

61111-943-033

Unavailable

9

SPLASH GUARD, FR. | Use from Frame SN DC438669

61111-943-033

Unavailable

10

LABEL, FR. FORK (NOT AVAILABLE)

87102-943-000

Unavailable

13

WASHER (6X20)

90512-300-000

$3.08

14

BOLT, HEX. (6X16) This part replaces 92000-06016-0H.

92101-06016-0H

$1.49

14

BOLT, HEX. (6X16) This part replaces 92100-06016-0H.

92101-06016-0H

$1.49

14

BOLT, HEX. (6X16)

92101-06016-0H

$1.49

15

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

15

NUT, CAP (6MM)

94021-06020

$1.73

15

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

15

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

16

WASHER, PLAIN (6MM)

94103-06800

$1.49

17

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
