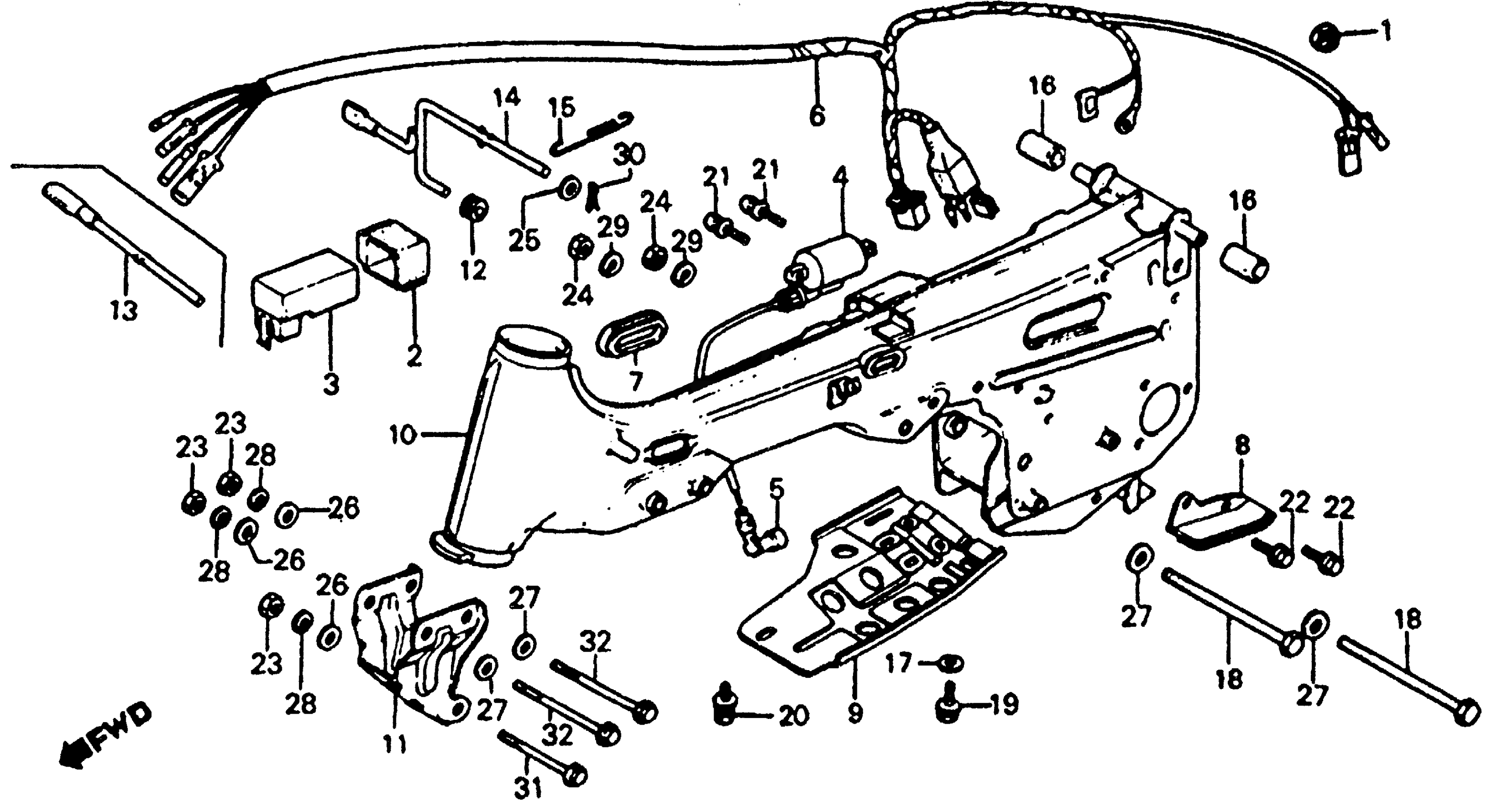

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 FRAME + WIRE HARNESS 79-83 Diagram

#

Description
Price

1

GROMMET, WIRE HARNESS

32983-447-000

$2.92

2

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-958-000.

30401-GB4-770

$5.72

3

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-958-003.

30410-187-008

Unavailable

4

COIL ASSY., IGNITION

30500-VM3-405

Unavailable

4

COIL ASSY., IGNITION This part replaces 30500-958-000.

30500-VM3-405

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

6

WIRE HARNESS (NOT AVAILABLE)

32100-943-030

Unavailable

7

GROMMET, WIRE HARNESS (NOT AVAILABLE)

32984-918-000

Unavailable

8

GUIDE, CHAIN (NOT AVAILABLE)

40526-942-000

Unavailable

9

PLATE, PROTECTOR (NOT AVAILABLE)

40528-943-010

Unavailable

10

FRAME

50100-943-030

Unavailable

11

HANGER, ENGINE (NOT AVAILABLE) This part replaces 50121-943-000.

50121-943-680

Unavailable

11

HANGER, ENGINE (NOT AVAILABLE)

50121-943-680

Unavailable

12

GROMMET, SEAT LOCK LEVER

50220-943-000

Unavailable

14

LEVER, SEAT LOCK (NOT AVAILABLE)

50221-943-010

Unavailable

15

SPRING, COVER SETTING (NOT AVAILABLE)

50222-918-000

Unavailable

16

RUBBER, SEAT MOUNTING (NOT AVAILABLE)

50801-918-000

Unavailable

17

WASHER (NOT AVAILABLE)

71979-538-940

Unavailable

18

BOLT, HEX. (10X120) This part replaces 92000-10120-0A.

92101-10120-0A

$3.17

18

BOLT, HEX. (10X120)

92101-10120-0A

$3.17

19

BOLT-WASHER (6X16)

93402-06016-08

$1.55

19

BOLT-WASHER (6X16) This part replaces 93492-06016-08.

93402-06016-08

$1.55

20

BOLT-WASHER (8X16)

93403-08016-08

$1.89

20

BOLT-WASHER (8X16) This part replaces 93493-08016-08.

93403-08016-08

$1.89

21

SCREW-WASHER (5X20)

93891-05020-08

$1.49

22

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

22

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

NUT, HEX. (10MM)

94001-10000-0S

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

WASHER, PLAIN (10MM)

94101-10000

$1.49

28

WASHER, SPRING (8MM)

94111-08000

$1.49

29

WASHER, SPRING (10MM)

94111-10000

$1.49

30

PIN, LOCK (6MM)

94251-06400

Unavailable

31

BOLT, FLANGE (8X55) This part replaces 95700-08055-00.

95701-08055-00

$2.28

31

BOLT, FLANGE (8X55)

95701-08055-00

$2.28

32

BOLT, FLANGE (8X80) This part replaces 95700-08080-00.

95701-08080-00

$1.64

32

BOLT, FLANGE (8X80)

95701-08080-00

$1.64
