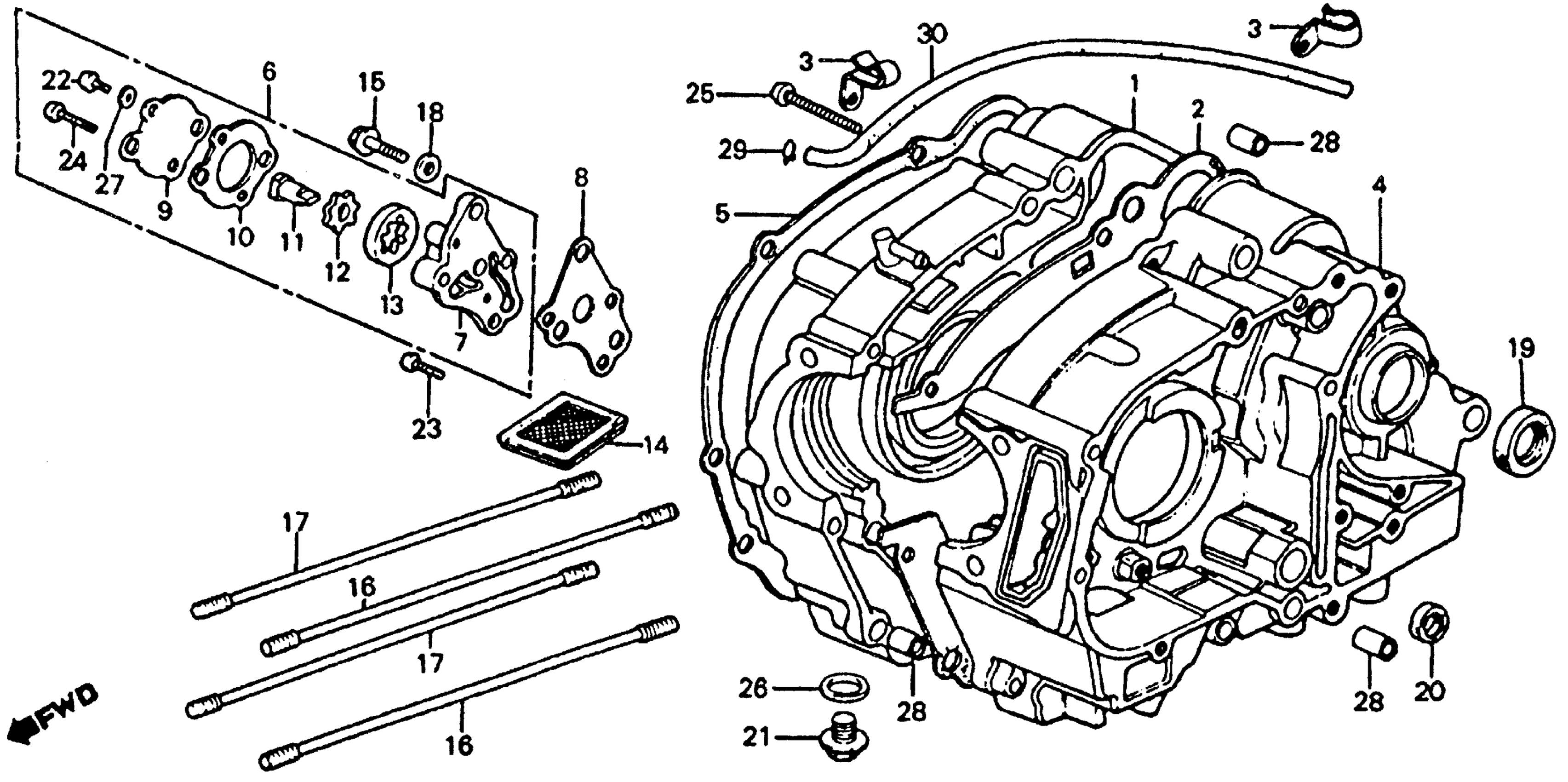

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R.

11100-943-010

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-121-630.

11191-121-631

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-459-000.

11191-121-631

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-459-306.

11191-121-631

Unavailable

3

CLAMP, TUBE (NOT AVAILABLE)

11195-943-000

Unavailable

4

CRANKCASE, L.

11200-943-010

Unavailable

5

GASKET, R. This part replaces 11393-121-630.

11393-121-632

$13.52

5

GASKET, R. This part replaces 11393-459-000.

11393-121-632

$13.52

5

GASKET, R. This part replaces 11393-459-306.

11393-121-632

$13.52

6

PUMP ASSY., OIL

15100-459-003

Unavailable

7

BODY, OIL PUMP

15111-459-003

Unavailable

8

GASKET, OIL PUMP BODY This part replaces 15119-028-030.

15119-028-306

Unavailable

8

GASKET, OIL PUMP BODY

15119-028-306

Unavailable

9

COVER, OIL PUMP (NOT AVAILABLE)

15121-028-060

Unavailable

10

GASKET, OIL PUMP COVER

15128-028-030

Unavailable

11

DRIVESHAFT, OIL PUMP

15181-943-000

Unavailable

12

ROTOR, OIL PUMP (INNER)

15331-436-000

Unavailable

13

ROTOR, OIL PUMP (OUTER)

15332-436-000

Unavailable

14

SCREEN, OIL FILTER

15421-035-010

$3.80

15

BOLT, OIL JOINT (NOT AVAILABLE)

90015-028-000

Unavailable

16

BOLT A, CYLINDER STUD

90031-943-000

Unavailable

17

BOLT B, CYLINDER STUD

90032-943-000

Unavailable

18

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

19

OIL SEAL (27X37X7)

91205-943-003

$11.58

19

OIL SEAL (27X37X7) This part replaces 91203-459-771.

91205-943-003

$11.58

20

OIL SEAL (11.6X19X6)

91204-HB2-003

$7.40

20

OIL SEAL (11.6X19X6) This part replaces 91204-121-711.

91204-HB2-003

$7.40

20

OIL SEAL (11.6X19X6) This part replaces 91204-121-712.

91204-HB2-003

$7.40

21

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

22

SCREW, PAN (5X12)

93500-05012-0A

$1.49

23

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

23

SCREW, PAN (6X16)

93500-06016-0A

$1.49

24

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

25

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

25

SCREW, PAN (6X40)

93500-06040-0A

$1.49

26

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

28

PIN A, DOWEL (10X14) This part replaces 90702-259-000.

94301-10140

$2.28

28

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

28

PIN A, DOWEL (10X14)

94301-10140

$2.28

28

PIN A, DOWEL (10X14) This part replaces 94304-10140.

94301-10140

$2.28

29

CLIP, TUBE (B10)

95002-02100

$1.90

30

BULK HOSE, VACUUM (5.5X3000) (5.3X330)

95005-55003-20M

$34.09
