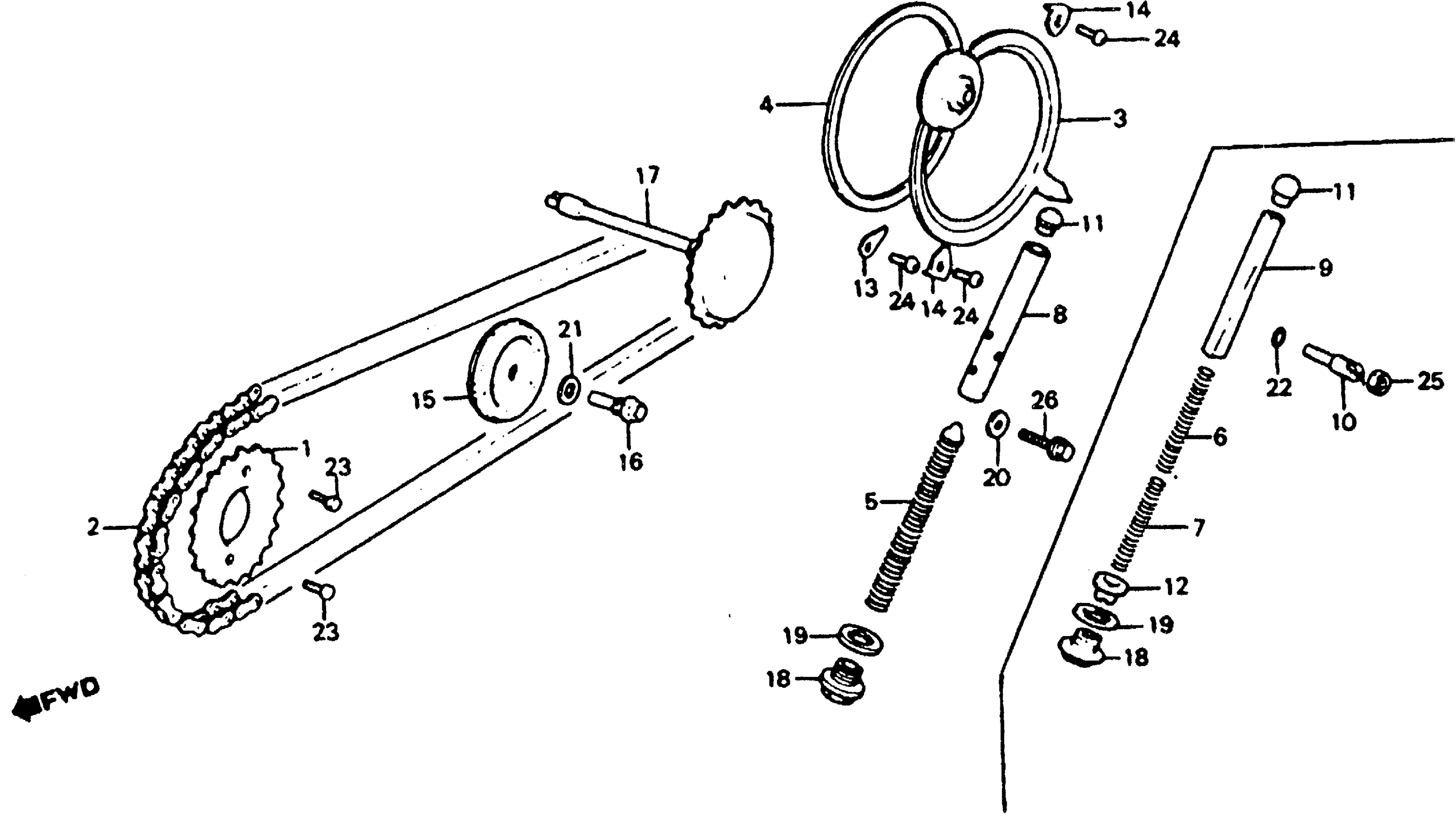

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (30T)

14321-028-000

Unavailable

2

CHAIN, CAM (25H-88L)

14401-943-013

$56.66

3

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-096-020

Unavailable

6

SPRING A, CAM CHAIN TENSIONER

14541-086-010

Unavailable

7

SPRING B, CAM CHAIN TENSIONER

14542-086-000

$4.24

9

ROD, CAM CHAIN TENSIONER PUSH

14550-086-010

Unavailable

10

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-086-010

$10.41

11

HEAD, CAM CHAIN TENSIONER PUSH ROD

14561-096-000

$1.80

12

BOLT B, CAM CHAIN TENSIONER ADJUSTING

14562-086-000

Unavailable

13

PLATE A, CAM CHAIN TENSIONER SETTING (NOT AVAILABLE)

14592-028-010

Unavailable

14

PLATE B, CAM CHAIN TENSIONER SETTING

14593-028-010

Unavailable

15

ROLLER, CAM CHAIN GUIDE This part replaces 14610-105-690.

14610-105-691

Unavailable

15

ROLLER, CAM CHAIN GUIDE

14610-105-691

Unavailable

16

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.84

16

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

17

SPROCKET, CAM CHAIN GUIDE (29T)

14670-028-000

Unavailable

18

BOLT, SEALING (14MM)

90081-086-000

$5.44

19

WASHER, SEALING (14MM)

90441-035-000

$2.39

21

WASHER (8MM)

90481-035-000

$1.87

22

O-RING (5.5X1.5)

91301-216-000

$2.38

23

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

23

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

24

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

NUT, HEX. (8MM)

94002-08000-0S

$1.49
