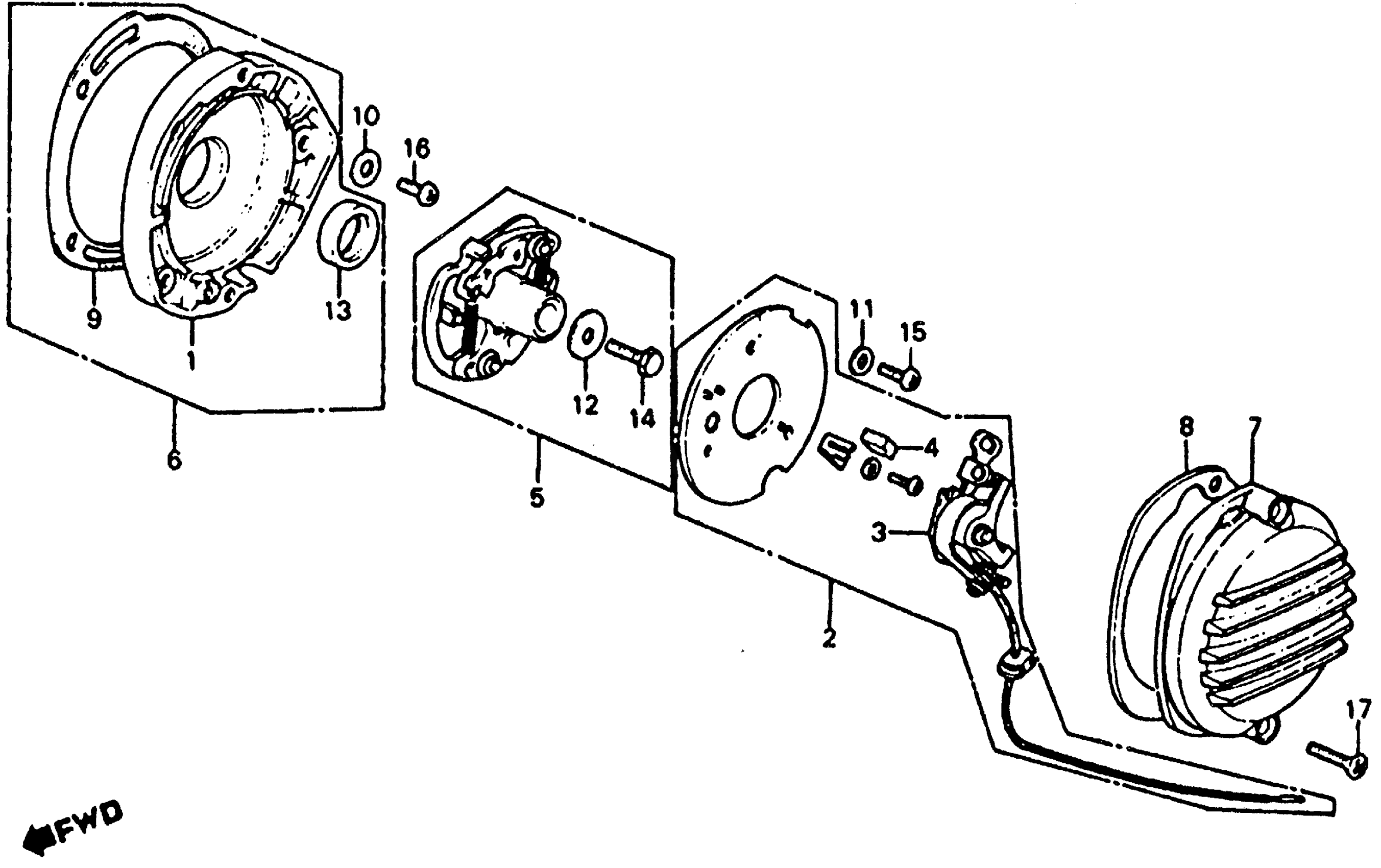

Honda ATC110A (80) ALL TERRAIN CYCLE, JPN, VIN# TB02-2000001 TO TB02-2075225 POINTS 79-80 Diagram

#

Description
Price

1

BASE, POINTS (NOT AVAILABLE)

12332-028-040

Unavailable

2

POINTS ASSY. (TOYO) (NOT AVAILABLE)

30200-107-154

Unavailable

3

POINTS (DENSO)

30202-107-004

$43.04

3

POINTS (TOYO)

30202-107-154

$27.89

4

FELT, OIL (KOKUSAN) (NOT AVAILABLE) This part replaces 30205-028-004.

30205-028-003

Unavailable

5

ADVANCER ASSY., SPARK (NOT AVAILABLE)

30220-943-005

Unavailable

6

BASE ASSY., POINTS

30360-028-030

Unavailable

7

COVER, POINT (NOT AVAILABLE)

30370-943-000

Unavailable

8

GASKET, POINT COVER This part replaces 30391-028-000.

30391-459-952

$4.21

8

GASKET, POINT COVER This part replaces 30391-028-306.

30391-459-952

$4.21

8

GASKET, POINT COVER This part replaces 30391-459-950.

30391-459-952

$4.21

9

GASKET, POINTS BASE This part replaces 30392-028-020.

30392-028-306

Unavailable

9

GASKET, POINTS BASE

30392-028-306

Unavailable

10

WASHER, SEALING (6MM)

90441-028-010

$2.92

11

WASHER (5MM)

90482-028-000

$2.09

12

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

13

OIL SEAL (13X22X5)

91201-028-005

$8.11

14

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

14

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

15

SCREW, PAN (5X10)

93500-05010-0A

$1.49

16

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

16

SCREW, PAN (6X12)

93500-06012-0A

$1.49

16

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

17

SCREW, OVAL (5X22)

93700-05022-0B

$1.49
