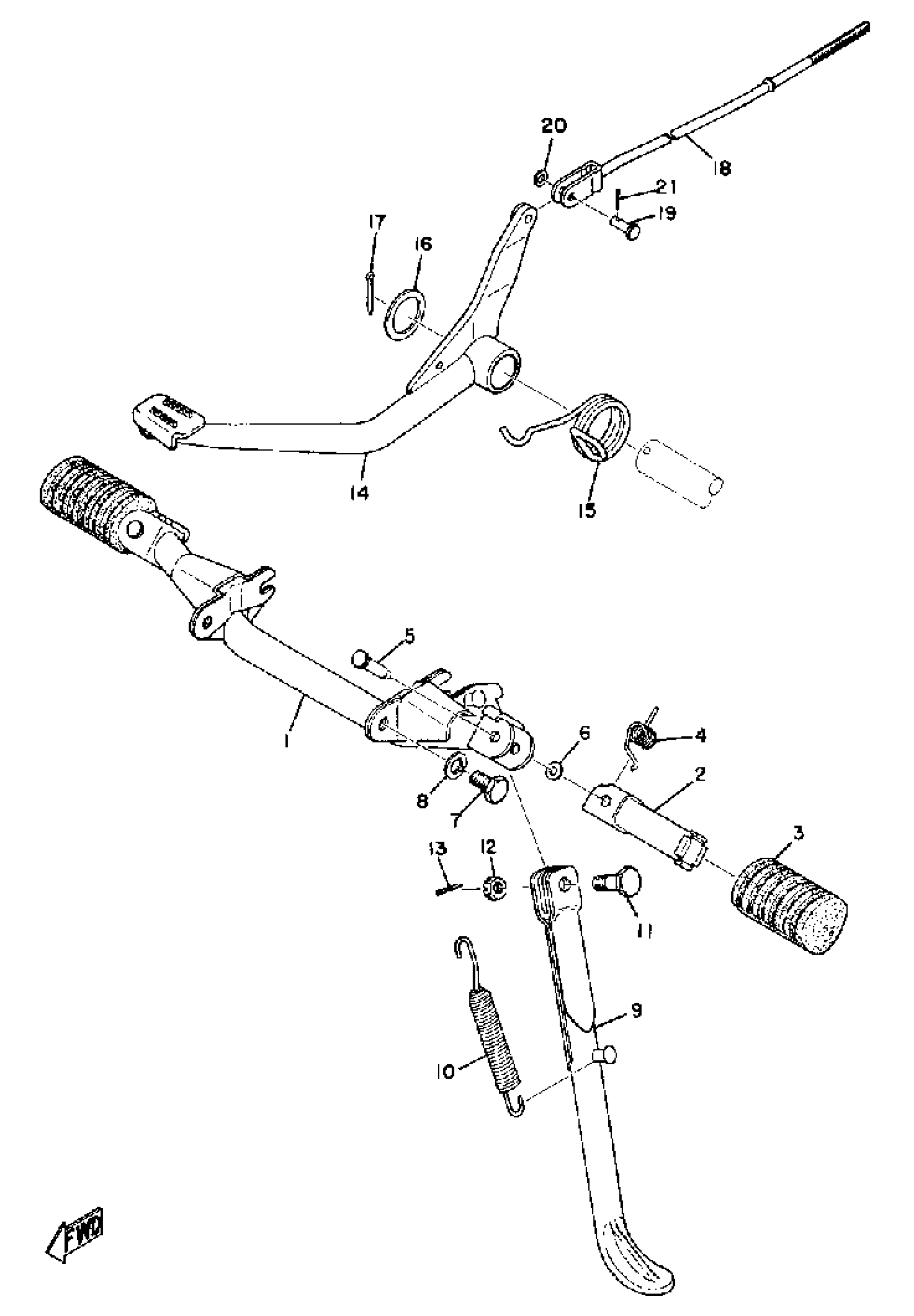

Yamaha AT2M (AT2M_ATMX) 1972 STAND - FOOT REST - BRAKE PEDAL Diagram

#

Description
Price

1

FOOTREST 1

248-27411-00-00

Unavailable

2

FOOT REST

214-27421-00-00

$37.99

3

COVER, FOOT REST

214-27413-00-00

$23.99

4

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

5

PIN (214-27418-00)

90243-08006-00

$12.49

6

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

7

BOLT

97027-10018-00

Unavailable

8

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

9

STAND, SIDE

248-27311-01-00

Unavailable

10

SPRING, TENSION (1L9)

90506-26270-00

$15.99

11

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

12

NUT, CASTLE

95307-10900-00

Unavailable

13

PIN, COTTER

91490-20025-00

$1.99

14

PEDAL, BRAKE

248-27211-00-33

Unavailable

15

SPRING, TORSION (248-27216-00)

90508-35070-00

Unavailable

16

WASHER, PLATE (248-27226-00)

90201-25289-00

Unavailable

17

PIN, COTTER

91490-40045-00

Unavailable

18

ROD, BRAKE

248-27231-00-00

Unavailable

19

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable
