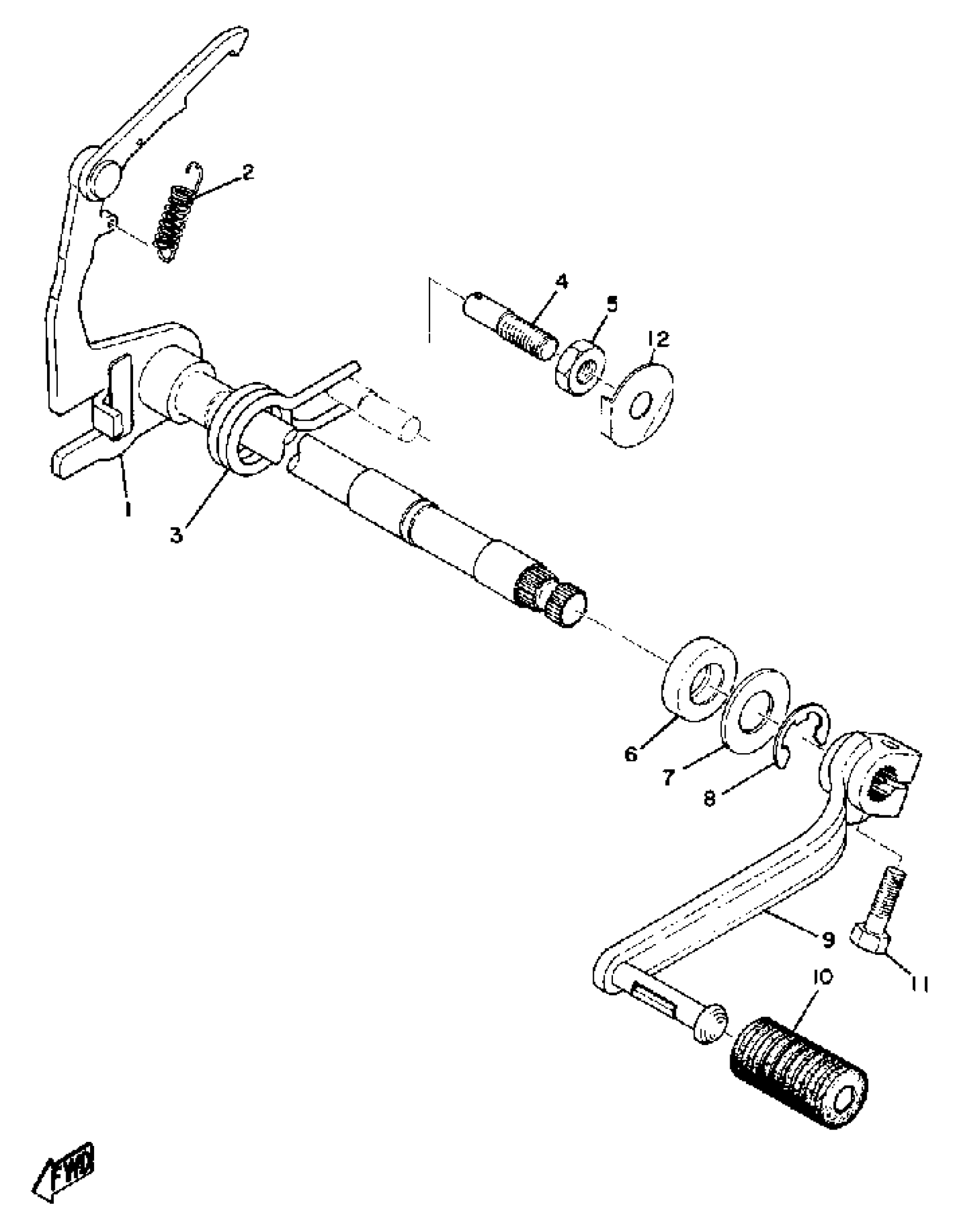

Yamaha AT2M (AT2M_ATMX) 1972 SHIFTER 2 Diagram

SHIFT SHAFT ASSY

3M5-18101-01-00

Unavailable

SPRING TENSION 132181230000

90506-09009-00

Unavailable

SPRING TORSION 132181240000

90508-32207-00

$10.49

SCREW, ADJUSTING (367)

90149-08094-00

$7.49

NUT (583)

90170-08193-00

$4.29

OIL SEAL (14X24X6-256)

93109-14010-00

$13.49

WASHER PLATE 248181370000

90201-14220-00

$8.49

. CIRCLIP

99001-12600-00

Unavailable

PEDAL, SHIFT

367-18111-00-00

$44.99

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER LOCK 248181390000

90215-08014-00

$5.60
