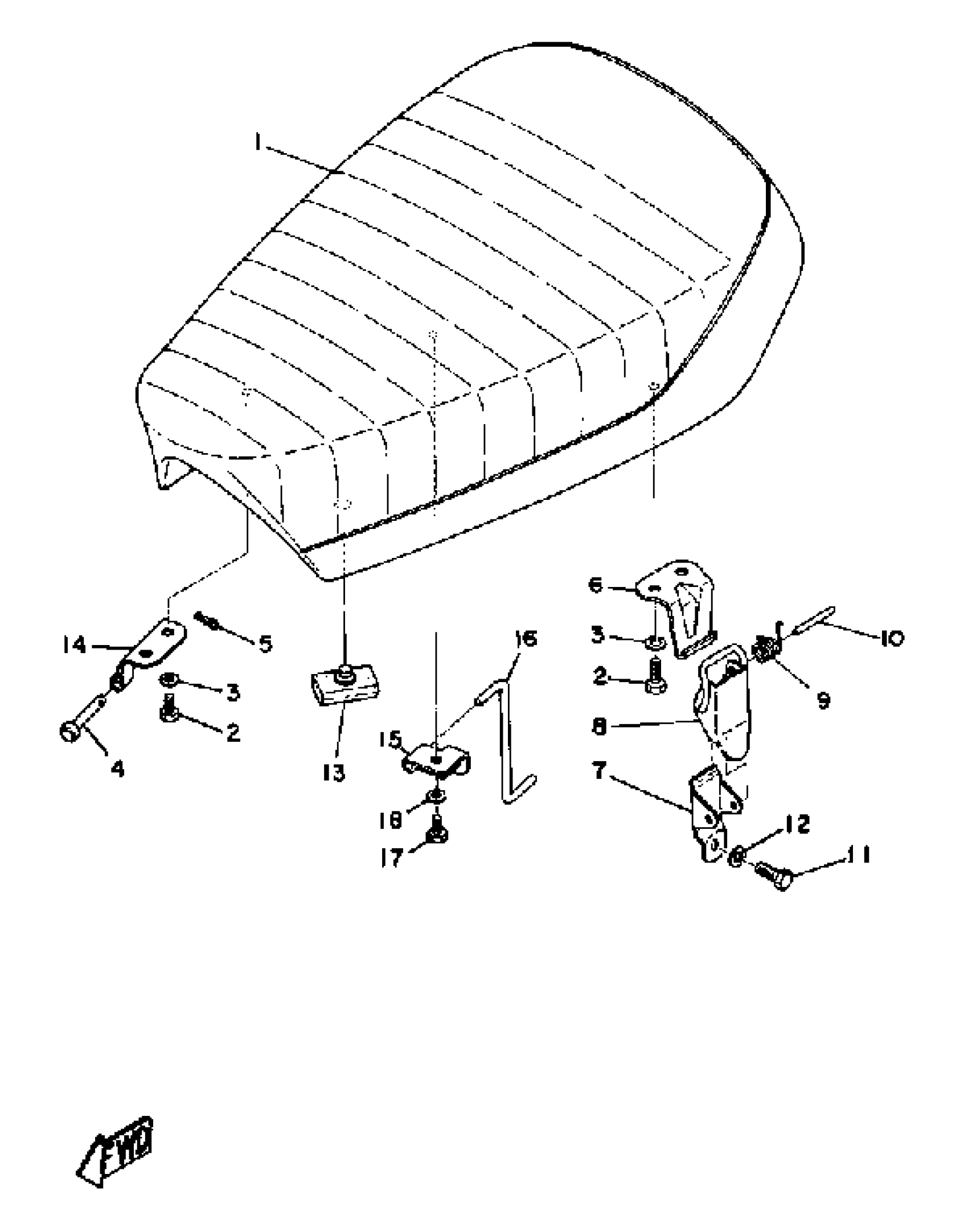

Yamaha AT2M (AT2M_ATMX) 1972 SEAT Diagram
#
Description
Price
1
SEMI-DBL SEAT ASSEMBLY
(318-24770-00-00)
Unavailable
1
COVER, SM-DBL SEAT
(318-24771-00-00)
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
6
BRACKET, SEAT
(214-24728-00-33)
Unavailable
7
BRACKET, SEAT
214-24718-00-00
Unavailable
8
LEVER, SEAT
214-24776-00-33
Unavailable
9
. SPRING, TORSION
90508-10012-00
Unavailable
10
. PIN, SPECIAL SHAPE
90249-04068-00
Unavailable
14
HINGE, SEAT
(315-24726-00-00)
Unavailable
15
BRACKET, SEAT
(278-24748-00-00)
Unavailable
16
STOPPER
(276-24768-00-00)
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
