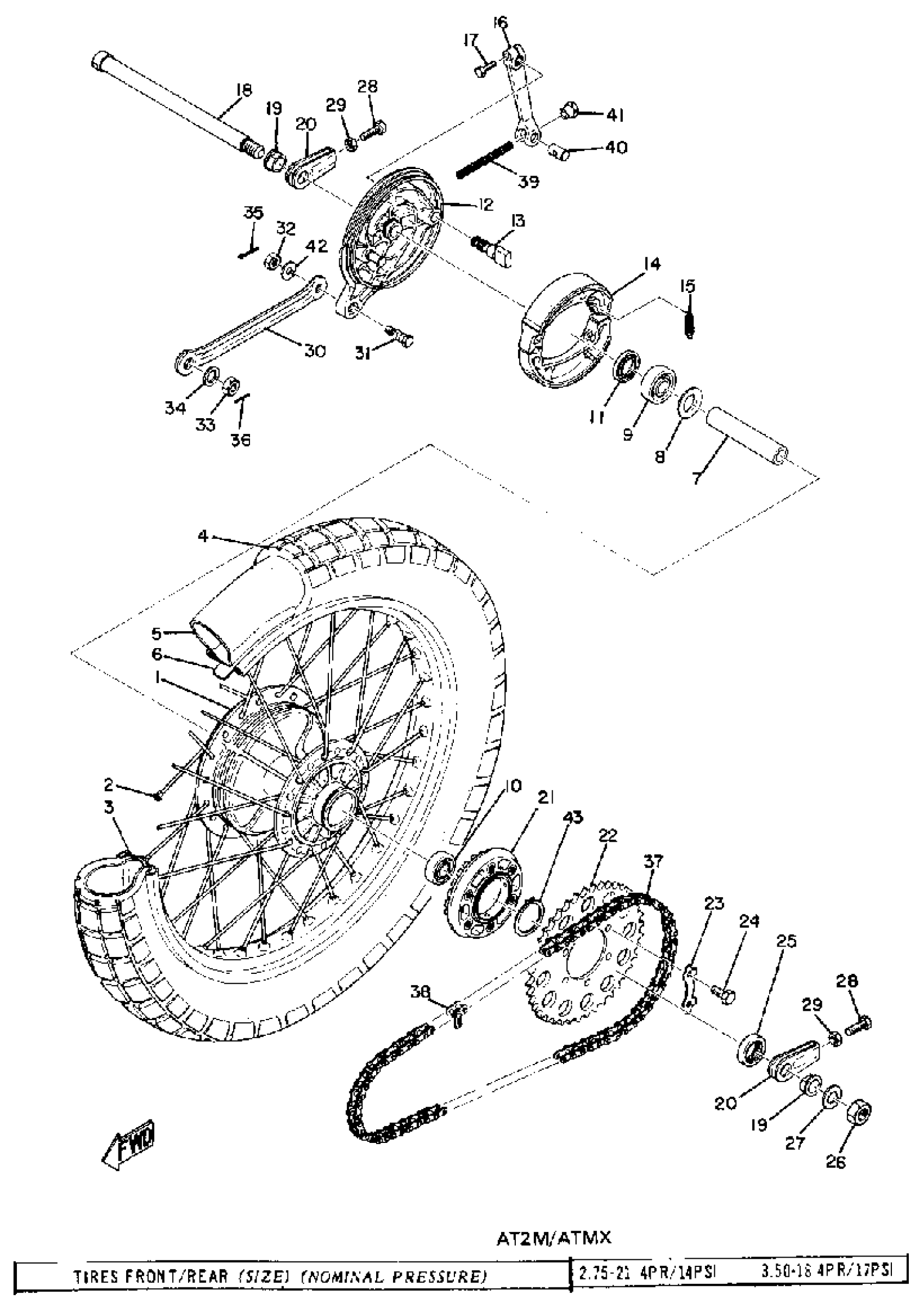

Yamaha AT2M (AT2M_ATMX) 1972 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(443-25311-00-00)

Unavailable

2

SPOKE SET, REAR

248-25304-00-00

Unavailable

2

SPOKE SET, INNER 1

(248-25391-90-00)

Unavailable

2

SPOKE SET, OUTER 1

(248-25392-90-00)

Unavailable

2

SPOKE SET, INNER 2

(248-25396-90-00)

Unavailable

2

SPOKE SET, OUTER 2

(248-25397-90-00)

Unavailable

3

RIM (1.85-18)

94418-18007-00

Unavailable

4

CS 350X18 C-755-1

(94135-18551-00)

Unavailable

5

TUBE (2RH)

94232-18113-00

$29.99

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER

90560-15313-00

$46.99

8

FLANGE, SPACER

146-25115-00-00

$6.99

9

BRG, R-B (7H4)

93306-20211-00

$25.99

10

BEARING

93306-30212-00

$40.99

11

OIL SEAL (22X35X5)

93104-22018-00

$11.49

12

BRAKE SHOE PLATE ASSY

437-25026-10-35

Unavailable

13

CAMSHAFT

2RH-25351-00-00

Unavailable

14

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

15

SPRING (5T9)

90506-17328-00

Unavailable

16

LEVER, CAM SHAFT

214-25355-00-00

Unavailable

17

BOLT, HEXAGON

97017-06020-00

Unavailable

18

AXLE, WHEEL (2R7-25381-00)

401-25381-00-00

Unavailable

19

COLLAR

90387-15115-00

Unavailable

20

PULLER, CHAIN

248-25388-00-00

Unavailable

21

DAMPER

248-25364-00-00

Unavailable

22

SPROCKET, DRVN45T

248-25445-11-00

Unavailable

22

SPROCKET, DRVN 48T

248-25448-11-00

Unavailable

22

SPROCKET, DRVN 44T (44T)

4V1-25444-10-00

Unavailable

23

WASHER, LOCK

22W-25412-00-00

Unavailable

24

BOLT(62E)

97013-08012-00

Unavailable

25

SEAL,OIL

93106-26005-00

Unavailable

26

NUT(6TC)

95337-14600-00

Unavailable

27

WASHER(6TC)

92907-14100-00

Unavailable

28

BOLT

90101-08060-00

Unavailable

29

. NUT

95380-08700-00

Unavailable

30

BAR, TENSION

(248-25371-00-00)

Unavailable

31

BOLT 1092537300

90109-08063-00

Unavailable

32

. NUT

95380-08700-00

Unavailable

33

NUT (682)

95380-10700-00

Unavailable

34

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

35

PIN, COTTER

91490-20025-00

Unavailable

36

PIN, COTTER

91490-25020-00

Unavailable

37

428H 112L

(94524-28112-00)

Unavailable

38

JOINT, CHAIN

94682-51001-00

Unavailable

39

SPRING, (180-27236-00)

90501-10245-00

Unavailable

40

PIN 1562723700

90249-12008-00

Unavailable

41

NUT (25K)

90179-06411-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

CIRCLIP (8L9)

93410-52061-00

Unavailable
