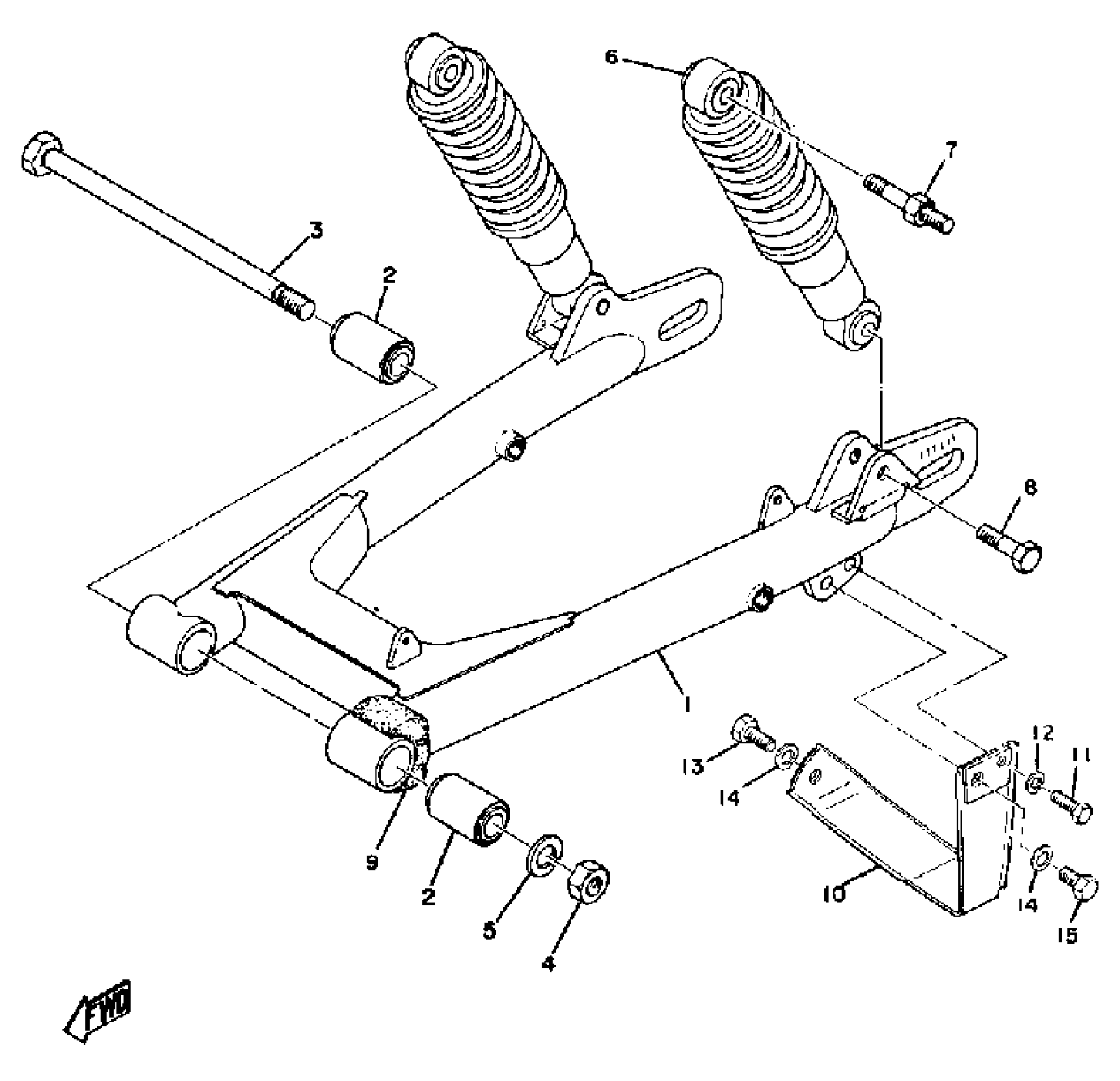

Yamaha AT2M (AT2M_ATMX) 1972 REAR ARM - REAR CUSHION - CHAIN CASE Diagram

SEAT, SPRING UPPER

(291-22213-71-00)

Unavailable

REAR ARM

(315-22110-01-33)

Unavailable

BUSH 1

174-22123-00-00

Unavailable

SHAFT, PIVOT

(248-22141-00-00)

Unavailable

NUT(6TC)

95337-14600-00

$11.49

WASHER(6TC)

92907-14100-00

$7.49

SHOCK ABS ASSY, REAR

291-22210-71-00

Unavailable

BOLT ROUND 214222410000

90106-10025-00

$5.60

BOLT, DOME HEAD

(90106-10026-00)

Unavailable

SEAL, GUARD

(248-22151-00-00)

Unavailable

GUARD, CHAIN

(248-22318-00-33)

Unavailable

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER, SPRING

92995-06100-00

Unavailable

BOLT, HEXAGON

97013-08016-00

$1.01

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

BOLT, HEXAGON

97013-08020-00

Unavailable
