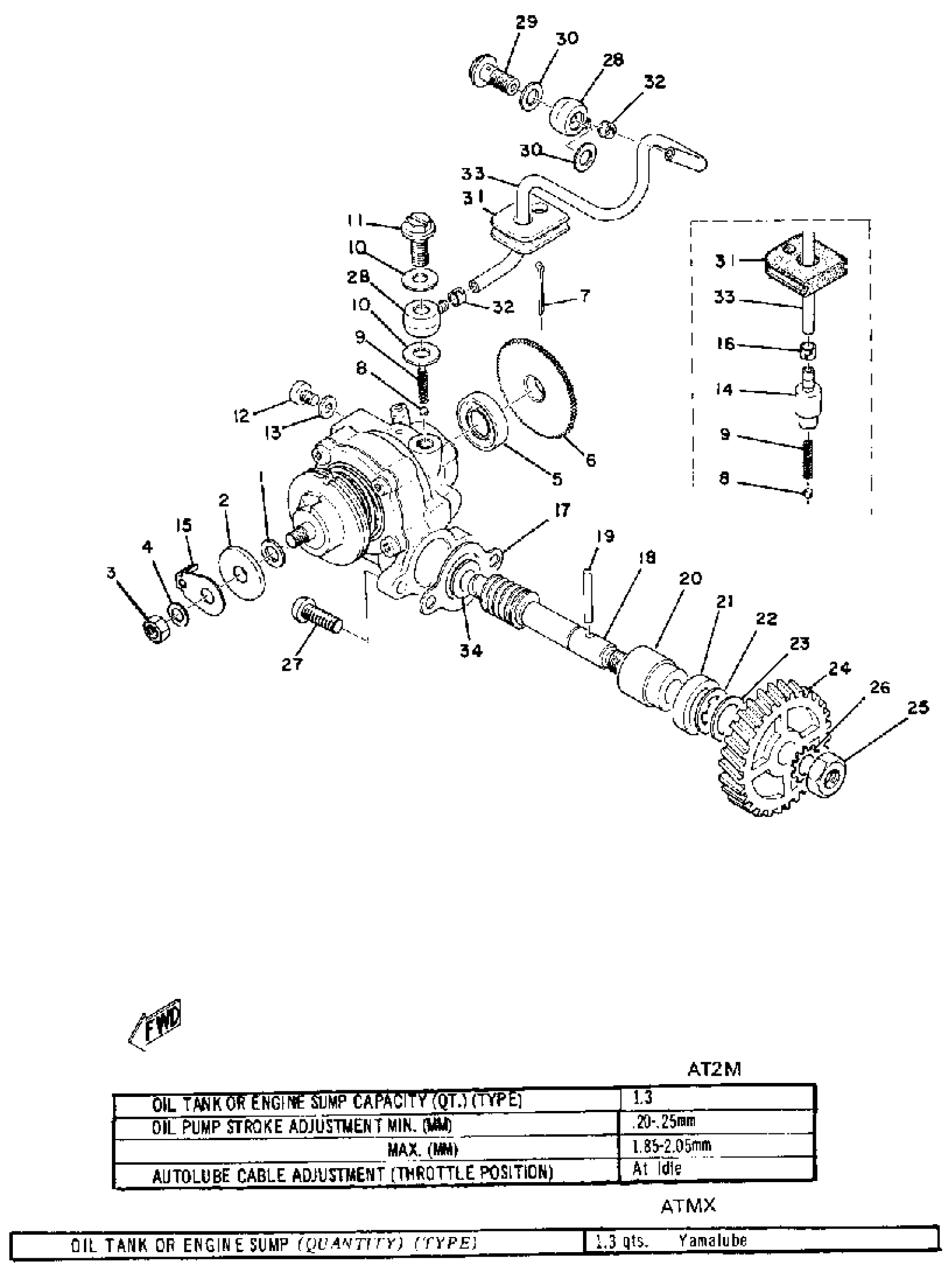

Yamaha AT2M (AT2M_ATMX) 1972 OIL PUMP Diagram

#

Description
Price

1

SHIM,PLUNGER

137-13137-00-10

$7.99

1

OIL PUMP ASSEMBLY

(214-13101-04-00)

Unavailable

2

PLATE, ADJUSTING

137-13138-01-00

Unavailable

3

NUT, HEXAGON (663)

95380-05600-00

$8.49

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

OIL SEAL (J10)

93101-10090-00

$8.49

6

PLATE, STARTER

(137-13128-00-00)

Unavailable

7

. PIN, COTTER

91401-12018-00

Unavailable

8

BALL

93505-32002-00

$2.92

9

SPRING, COMPRESSION

(90501-02017-00)

Unavailable

10

GASKET(3FP)

90430-06224-00

$5.60

11

BOLT UNION 137131650000

90401-06001-00

Unavailable

12

SCREW, BIND

98980-04008-00

Unavailable

13

GASKET 137131870000

90430-04004-00

$9.49

14

NOZZLE

402-13552-00-00

Unavailable

15

COVER, AJST PULLEY

(402-13146-00-00)

Unavailable

16

CLIP (214-13164-00)

90468-02033-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

Unavailable

18

SHAFT, WORM

(214-13175-01-00)

Unavailable

19

PIN,DOWEL (137)

93603-22028-00

Unavailable

20

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

21

OIL SEAL (10X22X7-137)

93101-10002-00

Unavailable

22

CIRCLIP (137)

93430-08007-00

Unavailable

22

CIRCLIP(2R6)

99001-08600-00

Unavailable

23

WASHER, PLATE(52H)

90201-105J4-00

Unavailable

24

GEAR, DRIVE

248-13178-00-00

Unavailable

25

. NUT

95380-08700-00

Unavailable

26

WASHER (688)

92990-08400-00

Unavailable

27

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

28

BANJO, DELIVERY PIPE

214-13162-01-00

Unavailable

29

BOLT UNION 137131650000

90401-06001-00

Unavailable

30

SPRING, COMPRESSION

(90501-02017-00)

Unavailable

31

HOLDER, OIL PIPE

248-13174-00-00

Unavailable

32

CLIP (214-13164-00)

90468-02033-00

Unavailable

33

HOSE (L700)

90445-05M07-00

Unavailable

34

WASHER, PLATE (1E7)

90201-08624-00

Unavailable
