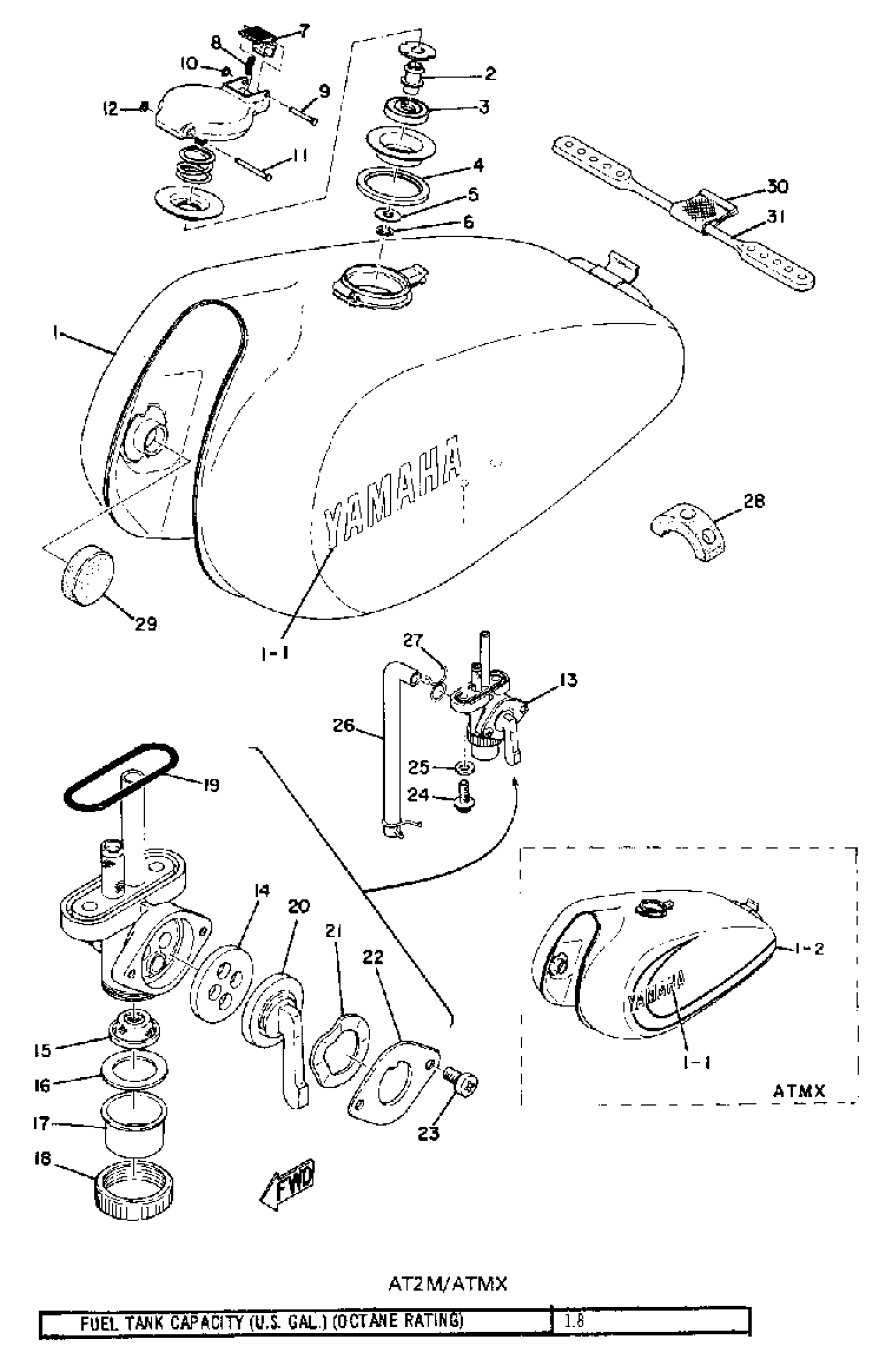

Yamaha AT2M (AT2M_ATMX) 1972 FUEL TANK Diagram

#

Description

Price

1

EMBLEM 1

(304-24161-00-00)

Unavailable

1

EMBLEM 1

(304-24161-00-00)

Unavailable

1

CAP ASSEMBLY

(308-24610-00-00)

Unavailable

1

FUEL TANK

(315-24110-00-04)

Unavailable

1

FUEL TANK

(315-24110-00-71)

Unavailable

1

EMBLEM, YAMAHA(4GA)

99221-00140-00

$4.46

2

GASKET, CAP 2

(308-24642-00-00)

Unavailable

2

GRAPHIC, FUEL TNK 1

(318-24244-00-00)

Unavailable

2

GRAPHIC, FUEL TNK 2

(318-24245-00-00)

Unavailable

3

GASKET, CAP 1

(308-24641-00-00)

Unavailable

4

. GASKET, CAP

308-24612-00-00

Unavailable

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

CIRCLIP(53L)

99001-06600-00

$1.01

7

. HOOK

308-24628-00-00

Unavailable

8

SPRING, COMPRESSION

(90501-07301-00)

Unavailable

9

PIN, SPECIAL SHAPE

90249-03088-00

Unavailable

10

CIRCLIP (604)

93430-02001-00

Unavailable

11

PIN, SPECIAL SHAPE (308-24623-00)

90249-03087-00

Unavailable

12

CIRCLIP (604)

93430-02001-00

Unavailable

13

FUEL COCK ASSY

498-24500-01-00

Unavailable

14

VALVE

214-24523-00-00

Unavailable

15

. NET, FILTER 2

214-24515-00-00

Unavailable

16

GASKET, FILTER

214-24522-00-00

Unavailable

17

. CUP, FILTER

214-24521-00-00

Unavailable

18

. NUT

214-24531-00-00

Unavailable

19

GASKET, BODY

214-24512-00-00

Unavailable

20

LEVER, COCK

(214-24524-01-00)

Unavailable

21

WASHER WAVE 137245180000

90206-18025-00

Unavailable

22

PLATE, LEVER FITTING

(214-24525-00-00)

Unavailable

23

SCREW, LEVER FITTING

214-24535-00-00

Unavailable

24

SCREW 256241430000

90149-06011-00

Unavailable

25

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

26

HOSE (L198)

90445-11293-00

Unavailable

27

CLIP

90467-100A1-00

Unavailable

28

DAMPER, LOCATING 3

(248-24183-00-00)

Unavailable

29

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

30

BAND, TANK FITTING 1

214-24173-00-00

Unavailable

31

BAND, TANK FITTING 2

248-24173-00-00

Unavailable
