FRONT FENDER - REAR FENDER

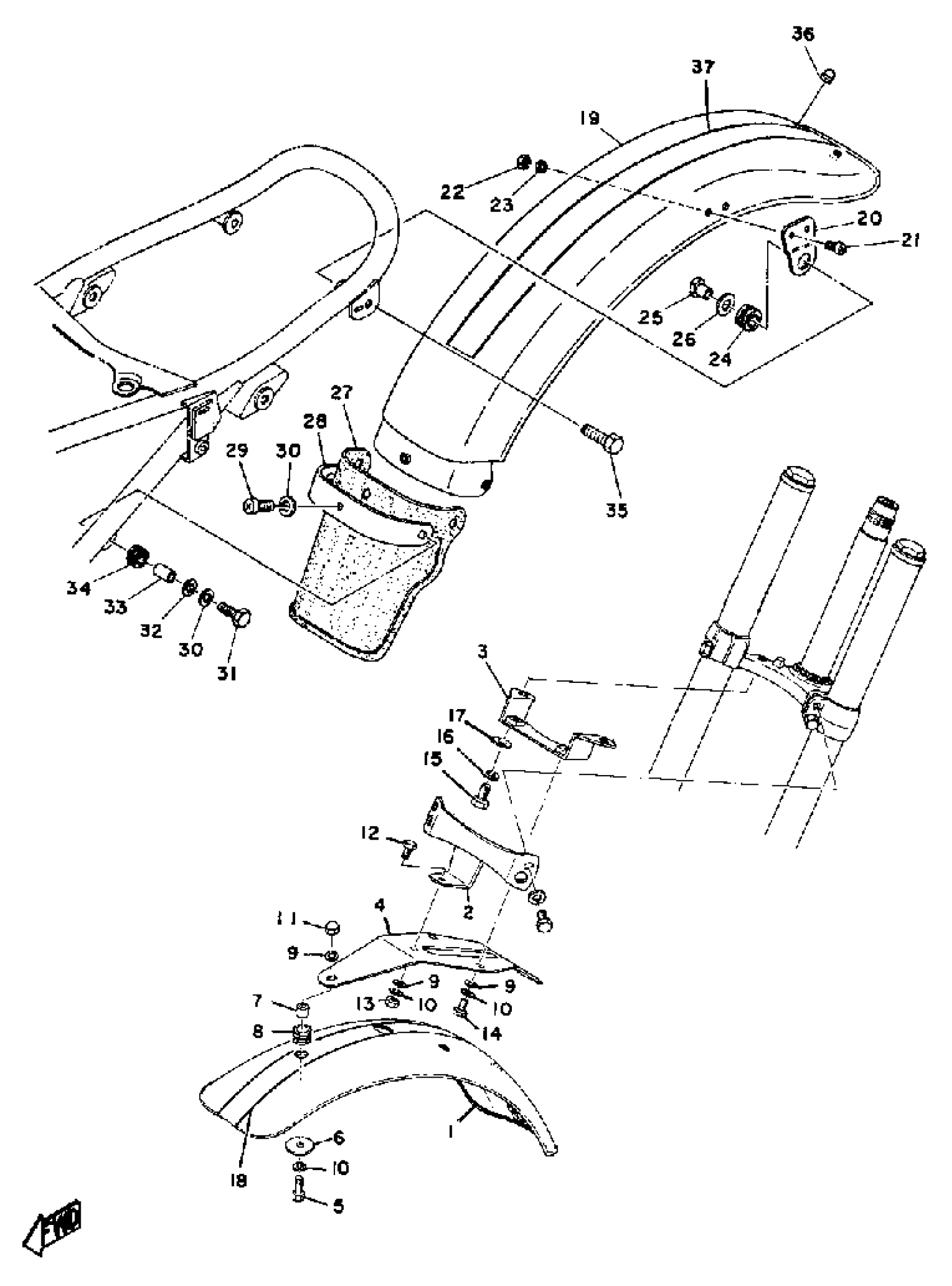

Yamaha AT2M (AT2M_ATMX) 1972 FRONT FENDER - REAR FENDER Diagram
#
1
FENDER, FRONT
(284-21510-00-35)
Unavailable
1
FENDER, FRONT
(284-21510-00-Y1)
Unavailable
2
STAY, FENDER 1
(284-21513-00-35)
Unavailable
2
STAY, FENDER 1
(284-21513-00-Y1)
Unavailable
3
STAY, FENDER 2
284-21514-00-35
Unavailable
3
STAY, FENDER 2
(284-21514-00-Y1)
Unavailable
4
BRACKET, FENDER
(284-21512-00-35)
Unavailable
4
BRACKET, FENDER
(284-21512-00-Y1)
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
12
BOLT (661)
97013-06012-00
Unavailable
13
NUT, HEXAGON
95380-06600-00
Unavailable
14
BOLT (661)
97013-06012-00
Unavailable
15
BOLT, HEXAGON
97013-08016-00
Unavailable
16
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
17
WASHER, PLAIN
92990-08200-00
Unavailable
18
MOLD, FENDER
(318-21519-00-00)
Unavailable
19
FENDER, REAR
(248-21610-00-35)
Unavailable
19
FENDER, REAR
(318-21610-00-Y1)
Unavailable
20
STAY, FENDER 1
(248-21613-00-91)
Unavailable
21
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
22
NUT, HEXAGON
95380-06600-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
DAMPER, FRONT
168-21638-00-00
Unavailable
25
NUT, REAR FENDER
248-21635-00-00
Unavailable
26
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
27
GUARD, MUD
(248-21629-00-00)
Unavailable
28
BAND, FLAP
(248-21622-00-33)
Unavailable
29
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
BOLT, HEXAGON
97017-06025-00
Unavailable
33
COLLAR (J10)
90387-06026-00
Unavailable
34
GROMMET 839774310000
90480-14023-00
Unavailable
35
BOLT
97013-08045-00
Unavailable
36
DAMPER 2
5A8-21639-00-00
Unavailable
37
STRIPE, REAR FENDER
(318-21619-00-00)
Unavailable
