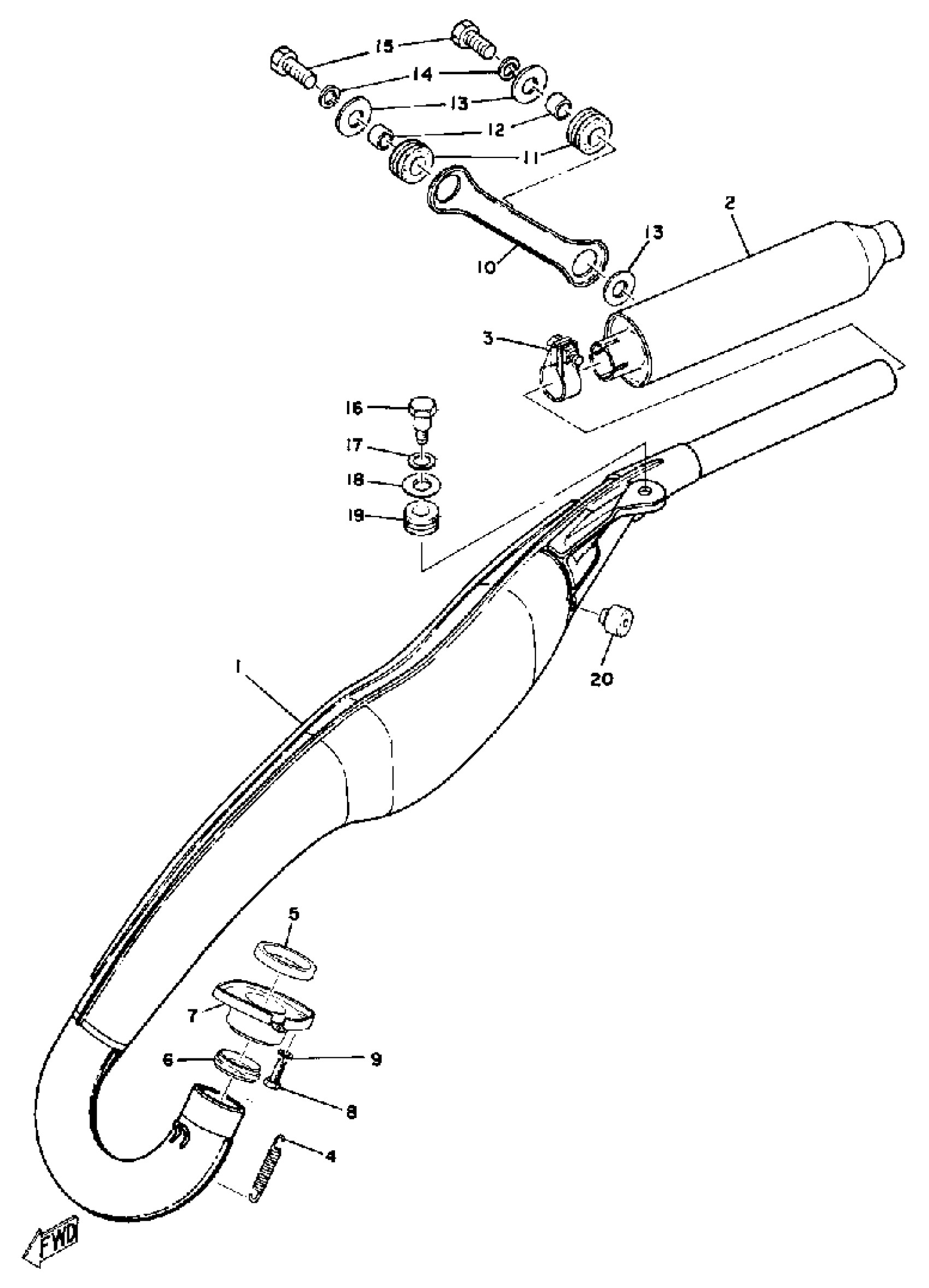

Yamaha AT2M (AT2M_ATMX) 1972 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(318-14610-01-00)

Unavailable

2

SILENCER, EXHAUST

(318-14753-00-00)

Unavailable

3

CLAMP, HOSE

90460-26047-00

Unavailable

4

SPRING 214-14683-01

90506-12029-00

Unavailable

5

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

6

GASKET

248-14623-10-00

$7.99

7

NUT, RING

2K5-14612-00-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

STAY, MUFFLER

(318-14791-00-00)

Unavailable

11

DAMPER, FRONT

168-21638-00-00

$9.99

12

COLLAR

90387-09065-00

Unavailable

13

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

BOLT, HEXAGON

97013-08020-00

$1.16

16

BOLT

90109-08391-00

Unavailable

17

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

18

WASHER PLATE 168217580000

90201-18262-00

Unavailable

19

DAMPER, FRONT

168-21638-00-00

$9.99

20

STOPPER, MAIN STAND

116-27114-00-00

Unavailable
