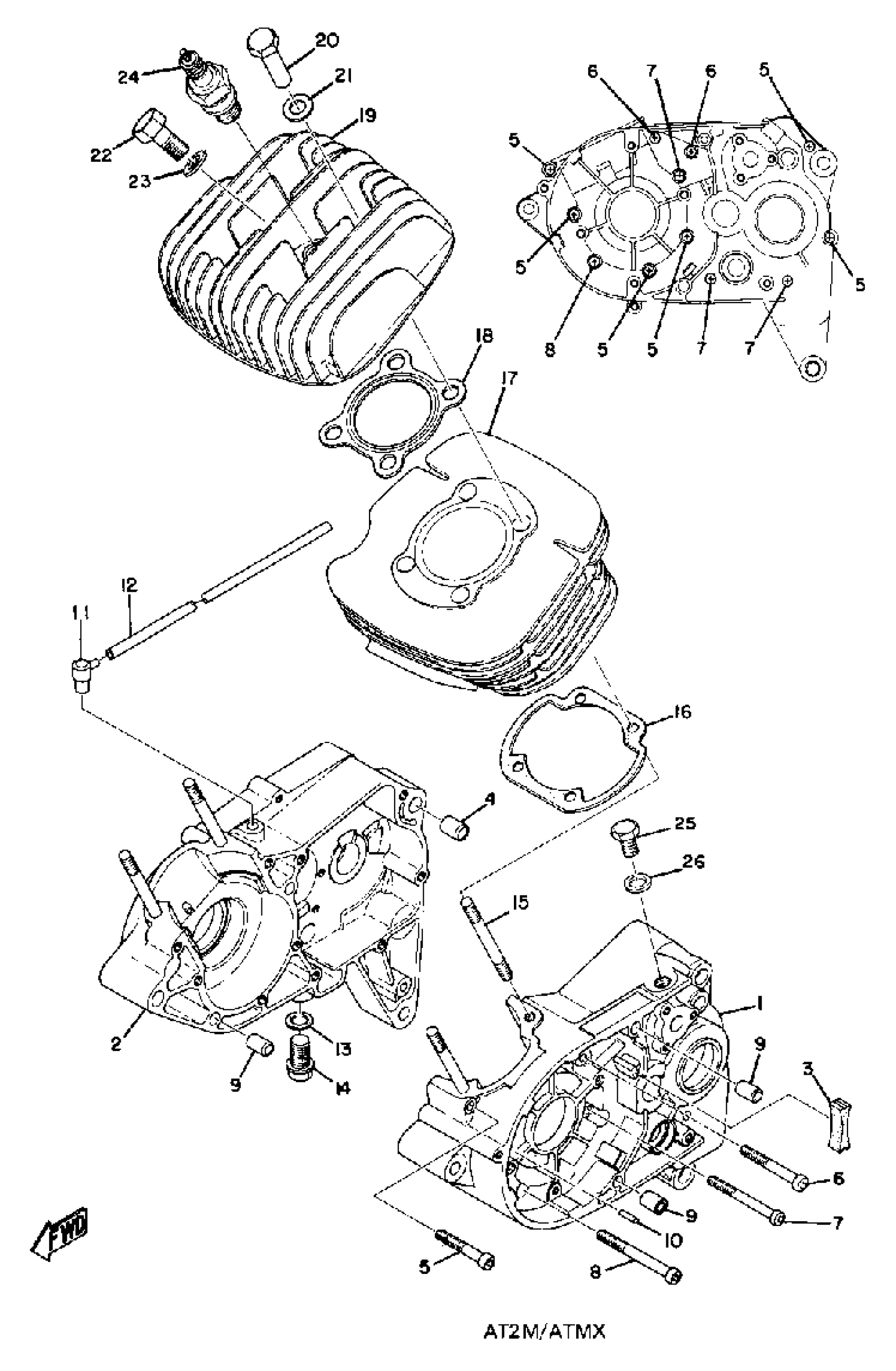

Yamaha AT2M (AT2M_ATMX) 1972 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE 1

(248-15111-02-00)

Unavailable

1

CRANKCASE 1

(318-15111-00-00)

Unavailable

2

CRANKCASE 2

(318-15121-00-00)

Unavailable

2

CRANKCASE 2

(444-15121-01-00)

Unavailable

2

CRANKCASE 2

(444-15121-01-00)

Unavailable

3

GROMMET

248-15357-00-00

$7.99

4

PIN, DOWEL

99530-14016-00

$3.80

5

SCREW PAN HEAD

98580-06545-00

$5.60

6

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

7

SCREW PAN HEAD

98580-06565-00

Unavailable

8

SCREW, BIND (JH1)

98580-06560-00

Unavailable

8

SCREW PAN HEAD

98580-06570-00

$18.99

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

PIN, DOWEL

93603-14026-00

$8.49

11

BREATHER

583-15371-00-00

$6.99

12

HOSE

(90446-07009-00)

Unavailable

13

GASKET (3JD1)

90430-12207-00

Unavailable

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

Unavailable

15

BOLT (248-11361-00)

90116-08064-00

Unavailable

16

GASKET, CYLINDER

1WE-11351-00-00

Unavailable

17

CYLINDER 1

(318-11311-00-00)

Unavailable

18

GASKET, CYLINDER HEAD

248-11181-00-00

Unavailable

19

HEAD, CYLINDER 1

(318-11111-00-00)

Unavailable

19

HEAD, CYLINDER 1

(318-11111-01-00)

Unavailable

20

NUT (3V6)

90179-08303-00

Unavailable

21

WASHER PLATE 278111750000

90201-12362-00

Unavailable

22

PLUG, BLIND

90340-14022-00

Unavailable

23

GASKET

214-11198-01-00

Unavailable

24

SPARK PLUG B9EN

(94701-00016-00)

Unavailable

25

PLUG, STRAIGHT SCREW

90340-12004-00

Unavailable

26

WASHER, PLATE

90201-12790-00

Unavailable

26

GEAR, KICK IDLE

401-15651-00-00

Unavailable

26

PLATE, COVER

401-17471-00-00

Unavailable

26

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable
