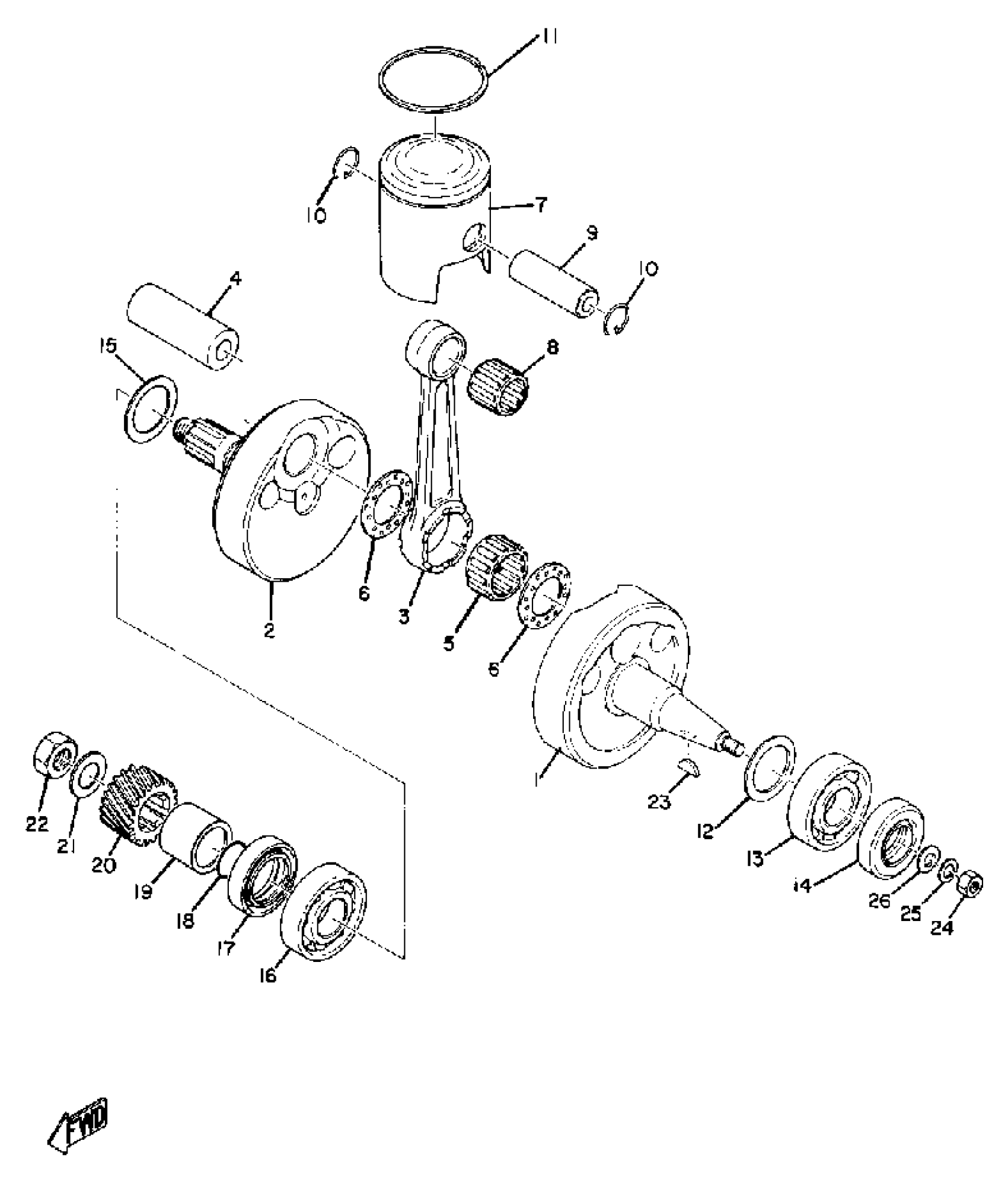

Yamaha AT2M (AT2M_ATMX) 1972 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(314-11400-02-00)

Unavailable

1

CRANK 1

(452-11412-00-00)

Unavailable

2

CRANK 2

(248-11422-00-00)

Unavailable

3

. ROD, CONNECTING

3R2-11651-01-00

Unavailable

4

PIN, CRANK 1

3M5-11681-00-00

$24.99

5

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

$46.99

6

WASHER (29L)

90209-22248-00

Unavailable

7

PISTON STD

(318-11631-00-96)

Unavailable

7

PISTON 1 O/S 0.25

(318-11635-00-00)

Unavailable

7

PISTON 2 O/S 0.50

(318-11636-00-00)

Unavailable

8

BEARING, NEEDLE (24X)

93310-216L2-00

$33.99

9

PIN, PISTON

137-11633-10-00

$27.99

10

CIRCLIP (137-11634-00)

93450-17025-00

$8.49

11

RING, PISTON

(248-11611-70-00)

Unavailable

11

RING, PISTON 1ST

(248-11611-80-00)

Unavailable

11

RING, PISTON 2ND

248-11611-90-00

Unavailable

12

. SHIM, CRANK 1

132-11561-00-03

Unavailable

13

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

14

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

15

SHIM, CRANK 1

136-11561-00-03

Unavailable

15

SHIM, CRANK 1

136-11561-00-04

Unavailable

15

SHIM, CRANK 1

136-11561-00-05

Unavailable

15

SHIM, CRANK 1

136-11561-00-06

Unavailable

15

SHIM, CRANK 1

136-11561-00-07

Unavailable

16

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

17

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

18

O-RING(3KX)

93210-180A6-00

Unavailable

19

COLLAR (4Y2)

90387-205E9-00

Unavailable

20

GEAR, PRI DRIVE

(248-16111-00-00)

Unavailable

21

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

22

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

23

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

24

NUT(55K)

90170-12347-00

Unavailable

25

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

26

WASHER (492)

90201-12535-00

Unavailable
