CARBURETOR

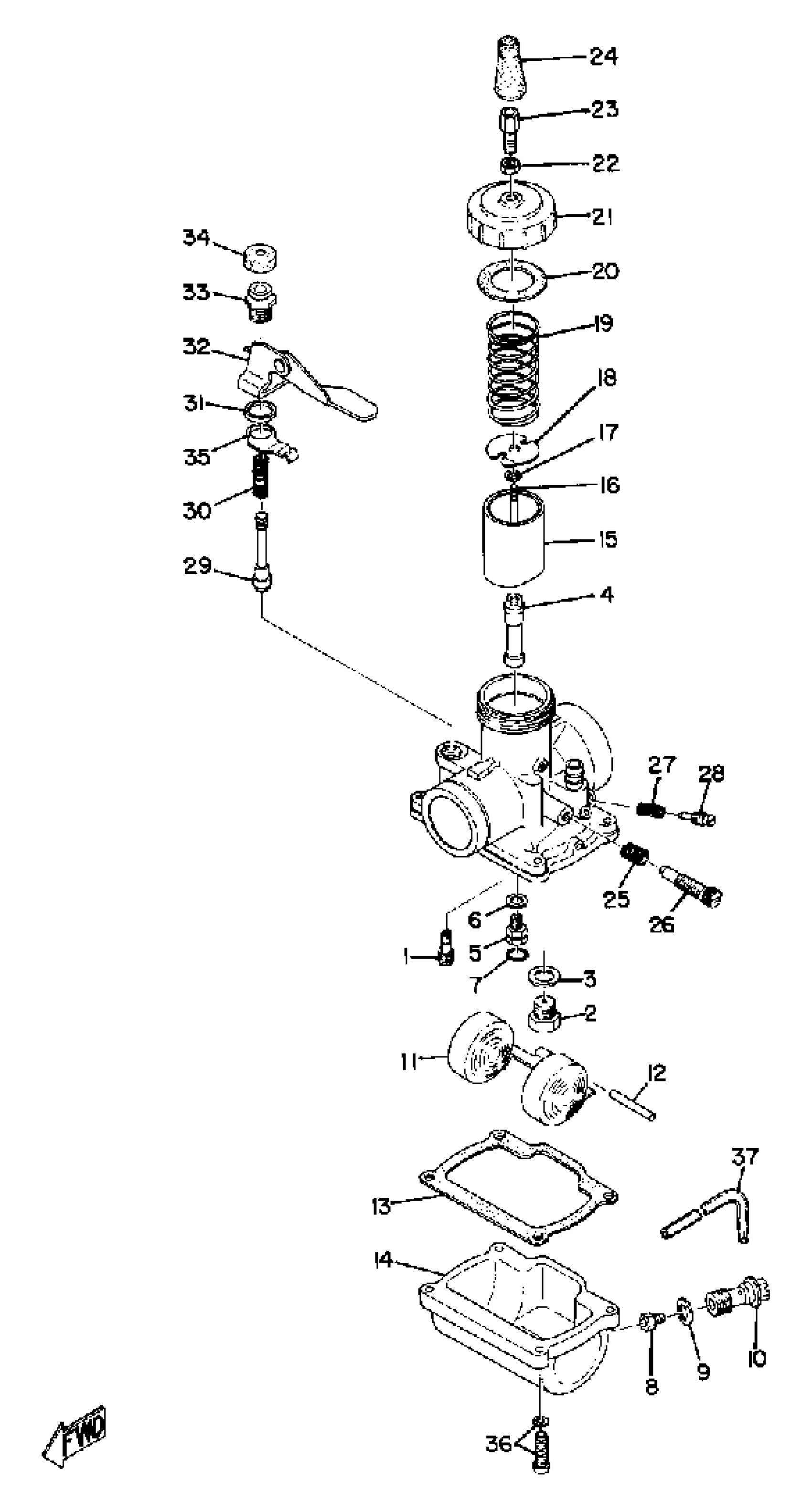

Yamaha AT2M (AT2M_ATMX) 1972 CARBURETOR Diagram
#
1
. JET, PILOT #60
193-14142-60-00
Unavailable
1
CARBURETOR ASSEMBLY 1
(318-14101-00-00)
Unavailable
4
NOZZLE, MAIN
(261-14141-28-00)
Unavailable
5
SETTER, NEEDLE JET
(248-14145-01-00)
Unavailable
8
JET, MAIN #180
137-14143-36-A1
Unavailable
8
JET,MAIN #190
137-14143-38-A0
Unavailable
9
GASKET
(248-14198-70-00)
Unavailable
10
BOLT,BANJO
479-14166-00-00
Unavailable
11
. FLOAT
156-14185-00-00
Unavailable
13
. GASKET, FLOAT CHAMBER
156-14184-00-00
Unavailable
14
BODY, FLOAT CHMBR 1
(248-14181-01-33)
Unavailable
15
VALVE, THROTTLE 1
(204-14112-25-00)
Unavailable
16
. NEEDLE
152-14116-15-00
Unavailable
17
CLIP
3FA-14137-00-00
Unavailable
18
. STOPPER, CABLE
246-14132-00-00
Unavailable
19
SPRING, THROTTLE VALVE
248-14131-00-00
Unavailable
20
GASKET
246-14126-00-00
Unavailable
21
. TOP, MIXING CHAMBER
802-14158-00-00
Unavailable
22
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
23
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
24
CAP
8A7-14169-00-00
Unavailable
25
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
26
THROTTLE SCREW SET
40T-14103-00-00
Unavailable
27
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
28
AIR SCREW SET
23X-14104-00-00
Unavailable
29
PLUNGER, STARTER
132-14171-00-00
Unavailable
30
SPRING, PLUNGER
156-14135-00-00
Unavailable
31
WASHER, STARTER LVR
(132-14179-00-00)
Unavailable
32
. LEVER, STARTER 1
(248-14175-00-00)
Unavailable
33
CAP, PLUNGER
(132-14174-00-00)
Unavailable
34
COVER, PLUNGER CAP
132-14173-00-00
Unavailable
35
. PLATE, STARTER LEVER
(170-14178-00-00)
Unavailable
36
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
37
PIPE
23F-14197-00-00
Unavailable
