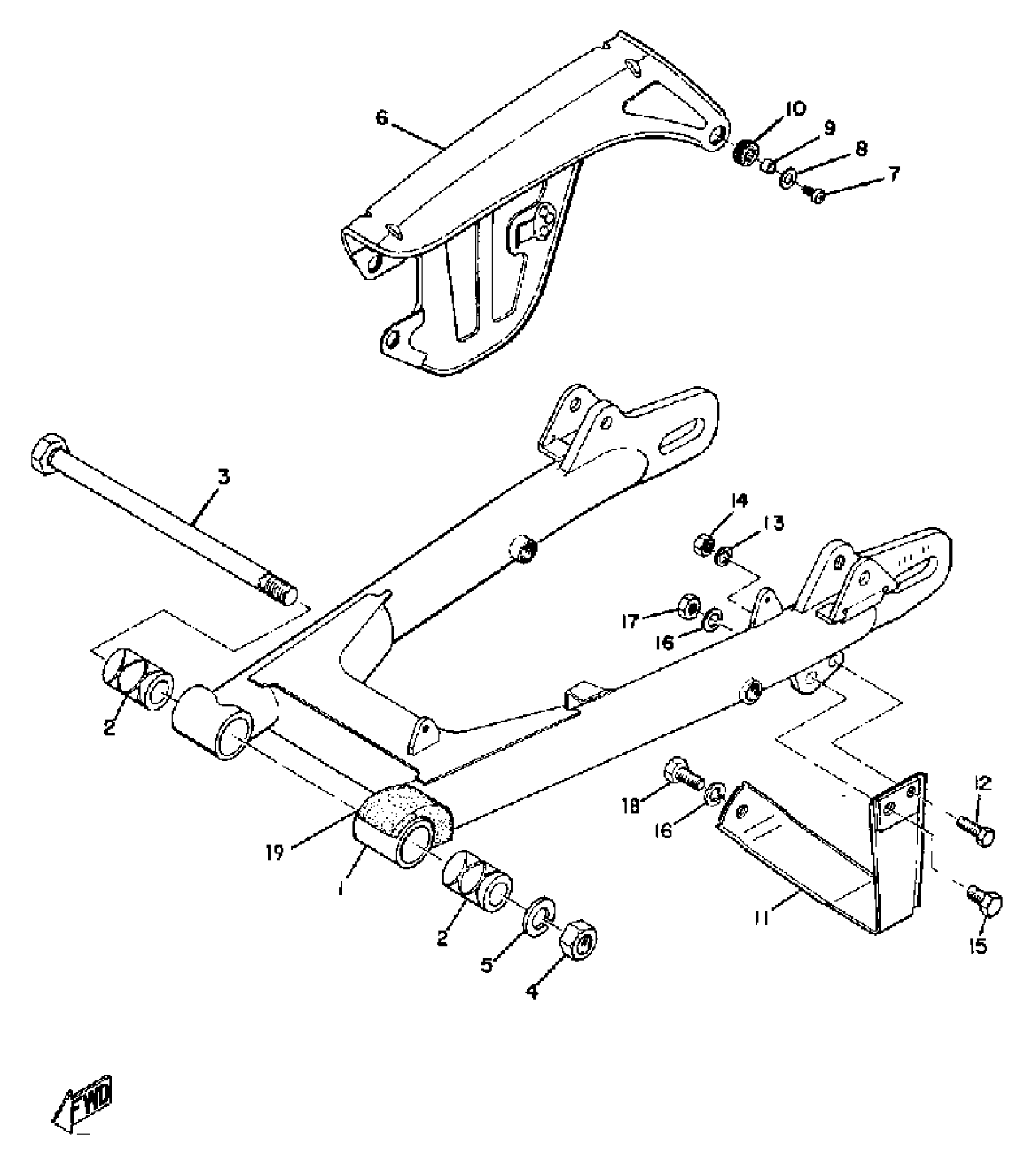

Yamaha AT1M (AT1E_AT1M) 1969 REAR ARM & CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(248-22110-00-33)

Unavailable

2

BUSH 1

174-22123-00-00

Unavailable

3

SHAFT, PIVOT

(248-22141-00-00)

Unavailable

4

NUT

(95303-14600-00)

Unavailable

5

WASHER(6TC)

92907-14100-00

$7.49

6

CASE, CHAIN

(248-22311-00-35)

Unavailable

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

WASHER, PLATE

90201-06M08-00

Unavailable

9

SPACER

90560-05001-00

Unavailable

10

GROMMET (141-82596-00)

90480-12096-00

Unavailable

11

GUARD, CHAIN

(248-22318-00-33)

Unavailable

12

BOLT(3DM)

97024-06020-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

BOLT, HEXAGON

97013-08016-00

$1.01

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

BOLT, HEXAGON

97027-08100-00

Unavailable

18

BOLT, HEXAGON

97013-08020-00

Unavailable

19

SEAL, GUARD

(248-22151-00-00)

Unavailable
