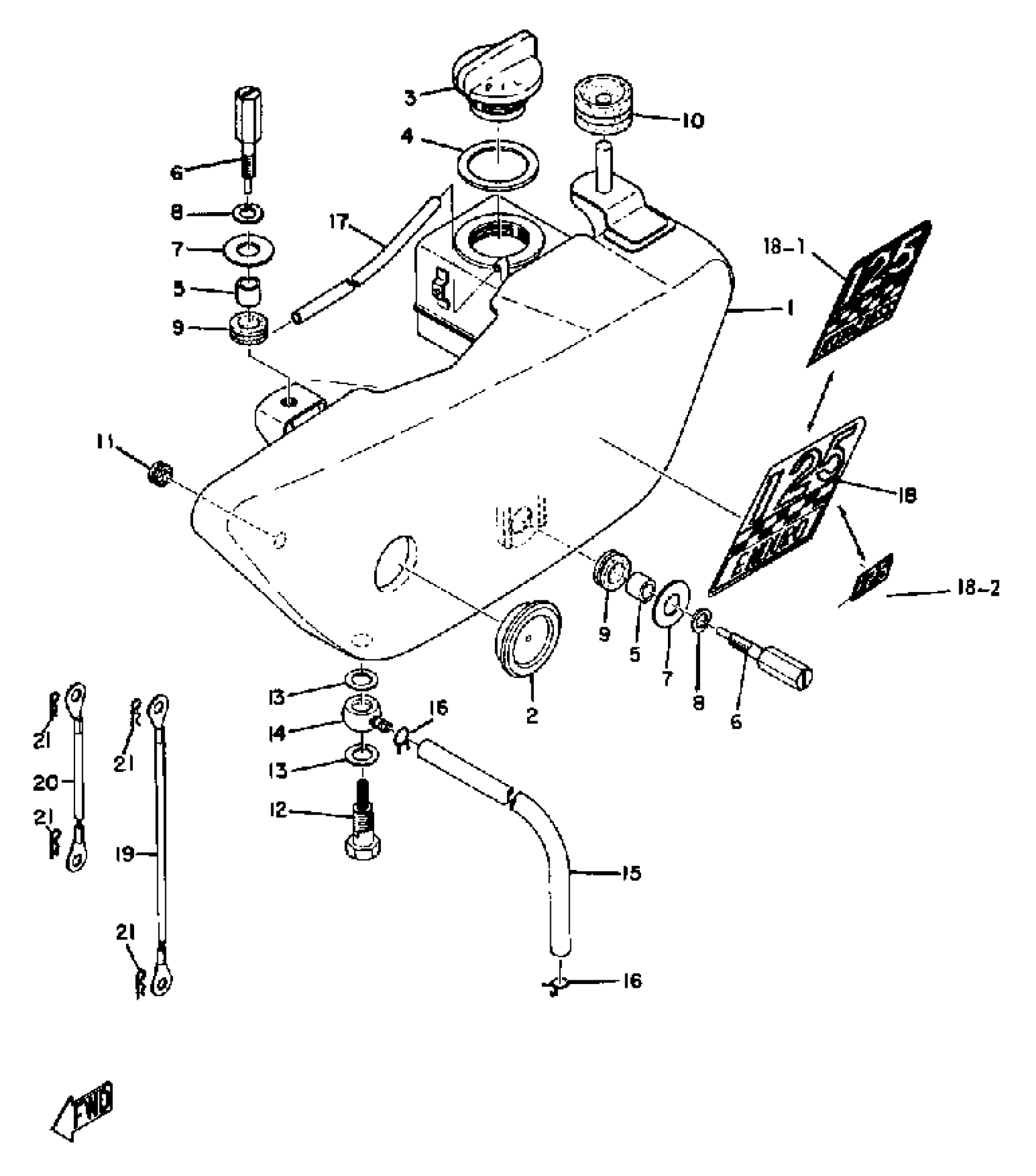

Yamaha AT1M (AT1E_AT1M) 1969 OIL TANK Diagram

#

Description
Price

1

OIL TANK ASSEMBLY

(248-21705-01-01)

Unavailable

1

EMBLEM 6

(263-21786-00-00)

Unavailable

2

GAUGE, LEVEL

214-21761-00-00

Unavailable

3

BODY, OIL TANK CAP

1A0-21771-00-00

$35.99

4

GASKET 214217720000

90430-29114-00

$8.49

5

COLLAR (J10)

90387-06026-00

$8.49

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

WASHER, PLATE

90201-06380-00

$0.60

8

WASHER, SPRING

92995-06100-00

Unavailable

9

GROMMET 839774310000

90480-14023-00

$7.49

10

GROMMET

(90480-16116-00)

Unavailable

11

DAMPER, LOCATING 1

(137-21778-00-00)

Unavailable

12

SCREW, UNION

(214-21768-00-00)

Unavailable

13

GASKET

(90430-10029-00)

Unavailable

14

COLLAR, UNION SCREW

214-21769-00-00

Unavailable

15

HOSE (L1500)

90445-090F6-00

Unavailable

16

CLIP 101235600

90467-08003-00

Unavailable

17

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

18

EMBLEM 7

(261-21787-00-00)

Unavailable

19

BOLT, TANK FITTING

(248-21775-00-00)

Unavailable

20

BOLT, TANK FITTING

(261-21775-00-00)

Unavailable

21

CLIP (156-83525-00)

90468-10050-00

Unavailable
