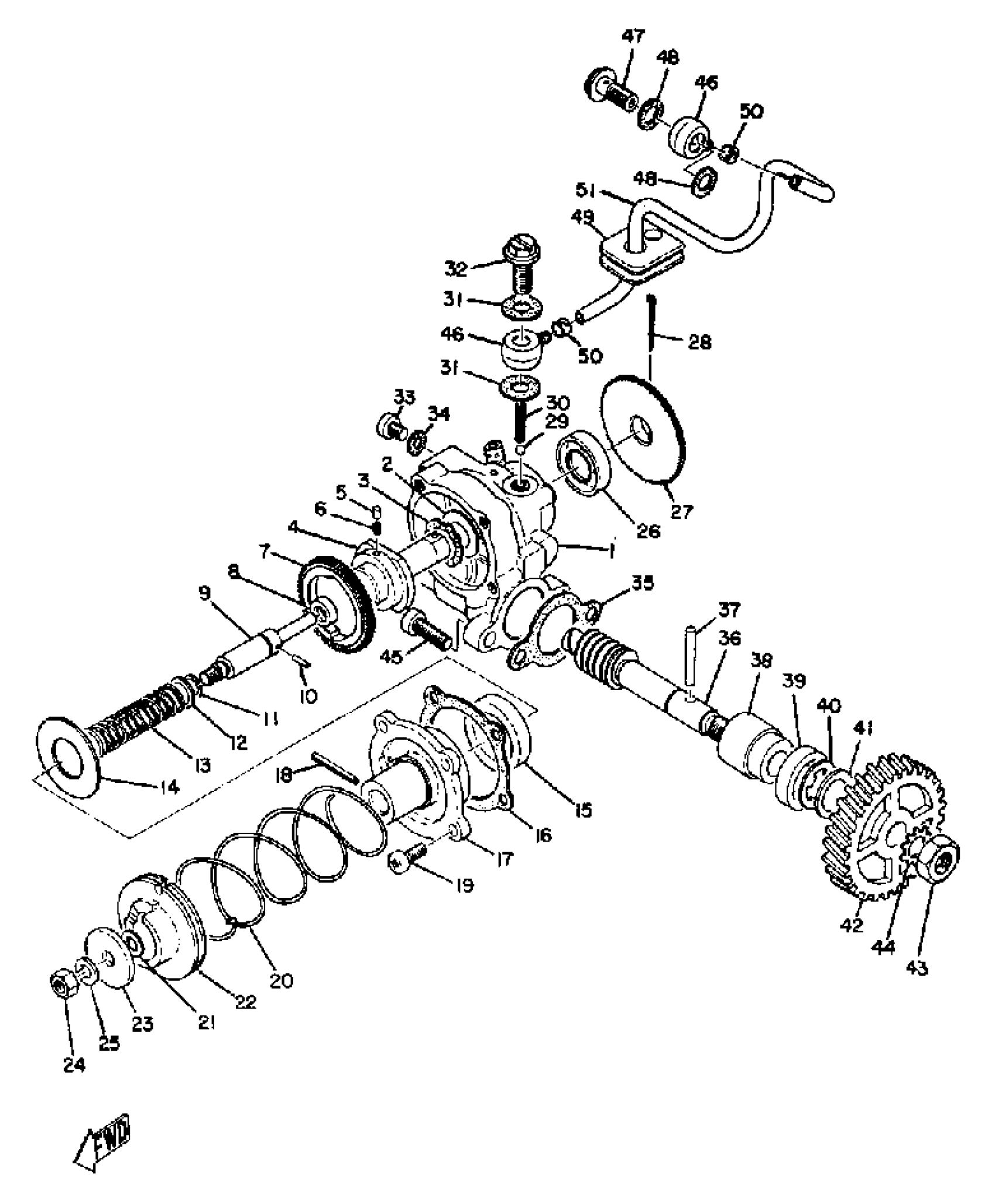

Yamaha AT1M (AT1E_AT1M) 1969 OIL PUMP Diagram
#
1
OIL PUMP ASSEMBLY
(214-13101-04-00)
Unavailable
1
TOOL
UNA-VAILA-BL-EI
Unavailable
2
PLATE, CAM THRUST
137-13148-00-00
Unavailable
3
WASHER, WAVE (137)
90206-11016-00
Unavailable
4
TOOL
UNA-VAILA-BL-EI
Unavailable
5
PIN, DOWEL
(93602-04029-00)
Unavailable
6
SPRING, COMPRESSION
(90501-02016-00)
Unavailable
7
GEAR, WORM WHEEL
(115-13124-60-00)
Unavailable
9
TOOL
UNA-VAILA-BL-EI
Unavailable
11
. CIRCLIP, PLUNGER
93440-08001-00
Unavailable
12
SEAT, SPRING
(137-13134-00-00)
Unavailable
13
SPRING, PLNGR RTRN
(137-13135-00-00)
Unavailable
14
PLATE, WORM WHEEL
(137-13127-00-00)
Unavailable
15
OIL SEAL (14X25X5-2H7)
93104-14059-00
Unavailable
16
. GASKET, PUMP CASE COVER
137-13142-00-00
Unavailable
17
TOOL
UNA-VAILA-BL-EI
Unavailable
18
. PIN
91608-20010-00
Unavailable
19
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
20
. SPRING, TORSION (156-13145-00)
90508-10013-00
Unavailable
21
SHIM,PLUNGER
137-13137-00-10
Unavailable
22
PULLEY, ADJUSTING
(364-13144-01-00)
Unavailable
23
PLATE, ADJUSTING
137-13138-01-00
Unavailable
24
NUT, HEXAGON (663)
95380-05600-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
OIL SEAL (J10)
93101-10090-00
Unavailable
27
PLATE, STARTER
(137-13128-00-00)
Unavailable
28
. PIN, COTTER
91401-12018-00
Unavailable
29
BALL
93505-32002-00
Unavailable
30
SPRING, COMPRESSION
(90501-02017-00)
Unavailable
31
GASKET(3FP)
90430-06224-00
Unavailable
32
BOLT UNION 137131650000
90401-06001-00
Unavailable
33
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
34
GASKET 137131870000
90430-04004-00
Unavailable
35
GASKET, PUMP CASE
126-13116-01-00
Unavailable
36
SHAFT, WORM
(214-13175-01-00)
Unavailable
37
PIN,DOWEL (137)
93603-22028-00
Unavailable
38
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
39
OIL SEAL (10X22X7-137)
93101-10002-00
Unavailable
40
CIRCLIP(2R6)
99001-08600-00
Unavailable
41
WASHER, PLATE(52H)
90201-105J4-00
Unavailable
42
GEAR, DRIVE
248-13178-00-00
Unavailable
43
. NUT
95380-08700-00
Unavailable
44
WASHER (688)
92990-08400-00
Unavailable
45
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
46
BANJO, DELIVERY PIPE
214-13162-01-00
Unavailable
47
BOLT UNION 137131650000
90401-06001-00
Unavailable
48
GASKET(3FP)
90430-06224-00
Unavailable
49
HOLDER, OIL PIPE
248-13174-00-00
Unavailable
50
CLIP (214-13164-00)
90468-02033-00
Unavailable
51
HOSE (L700)
90445-05M07-00
Unavailable
