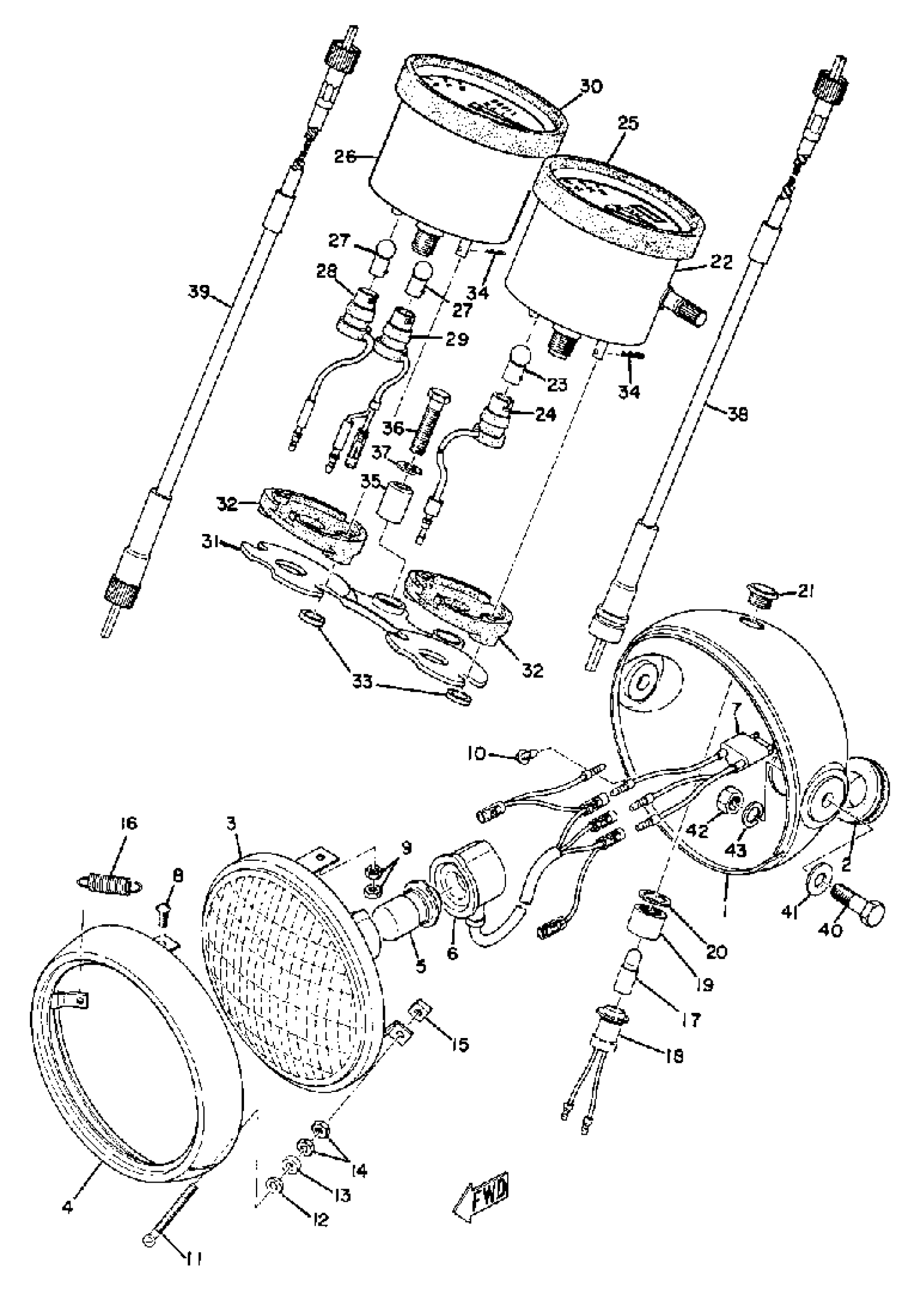

Yamaha AT1M (AT1E_AT1M) 1969 HEAD LAMP, SPEEDOMETER & TACHOMETER Diagram

#

Description
Price

1

BODY ASSEMBLY

(261-84330-60-36)

Unavailable

2

GROMMET, WIREHARNESS

214-84153-60-00

$7.99

2

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

Unavailable

3

LENS ASSEMBLY

(261-84320-60-00)

Unavailable

4

RIM, HEADLIGHT

(261-84315-60-00)

Unavailable

5

BULB, HEADLIGHT (12V-25/25W)

1YT-84314-00-00

$11.99

6

SOCKET

(261-84312-60-00)

Unavailable

7

CORD, HEADLIGHT

(214-84159-61-00)

Unavailable

8

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

9

NUT(6L4)

95380-04700-00

Unavailable

10

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

11

SCREW, RIM ADJUSTING

(198-84331-60-00)

Unavailable

12

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

13

. SPACER

132-84328-60-00

Unavailable

14

NUT(6L4)

95380-04700-00

Unavailable

15

NUT, ADJUST

198-84334-60-00

Unavailable

16

SPRING

(132-84335-60-00)

Unavailable

17

BULB

256-84347-00-00

Unavailable

18

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

Unavailable

19

PILOT LIGHT ASSEMBLY

214-84101-61-00

Unavailable

20

WASHER, IN.TOOTH

(92901-12300-00)

Unavailable

21

PILOT LIGHT ASSEMBLY

214-84101-61-00

Unavailable

22

SPEEDOMETER ASSEMBLY

(261-83570-41-00)

Unavailable

23

BULB (12V-3.4W)

123-83516-21-00

Unavailable

24

SOCKET, METER

(235-83536-21-00)

Unavailable

25

. DAMPER

336-83513-00-00

Unavailable

26

TACHOMETER ASSEMBLY

(261-83540-20-00)

Unavailable

27

BULB (12V-3.4W)

123-83516-21-00

Unavailable

28

SOCKET, METER

(235-83536-21-00)

Unavailable

29

SOCKET, NEUTRAL

(261-83537-20-00)

Unavailable

30

. DAMPER

336-83513-00-00

Unavailable

31

BRACKET, METER

(214-83519-00-33)

Unavailable

32

DAMPER

214-83523-00-00

Unavailable

33

WASHER 214835240000

90209-05029-00

Unavailable

34

CLIP (156-83525-00)

90468-10050-00

Unavailable

35

BUSH, SPEC''L RUBBER (214-83528-00)

90385-06001-00

Unavailable

36

BOLT(JF7)

97080-06030-00

Unavailable

37

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

38

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

Unavailable

39

TACHOMETER CABLE ASSY

3T2-83560-00-00

Unavailable

40

BOLT (682)

97013-08025-00

Unavailable

41

WASHER, PLAIN

92990-08200-00

Unavailable

42

NUT(6L2)

95333-08600-00

Unavailable

43

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
