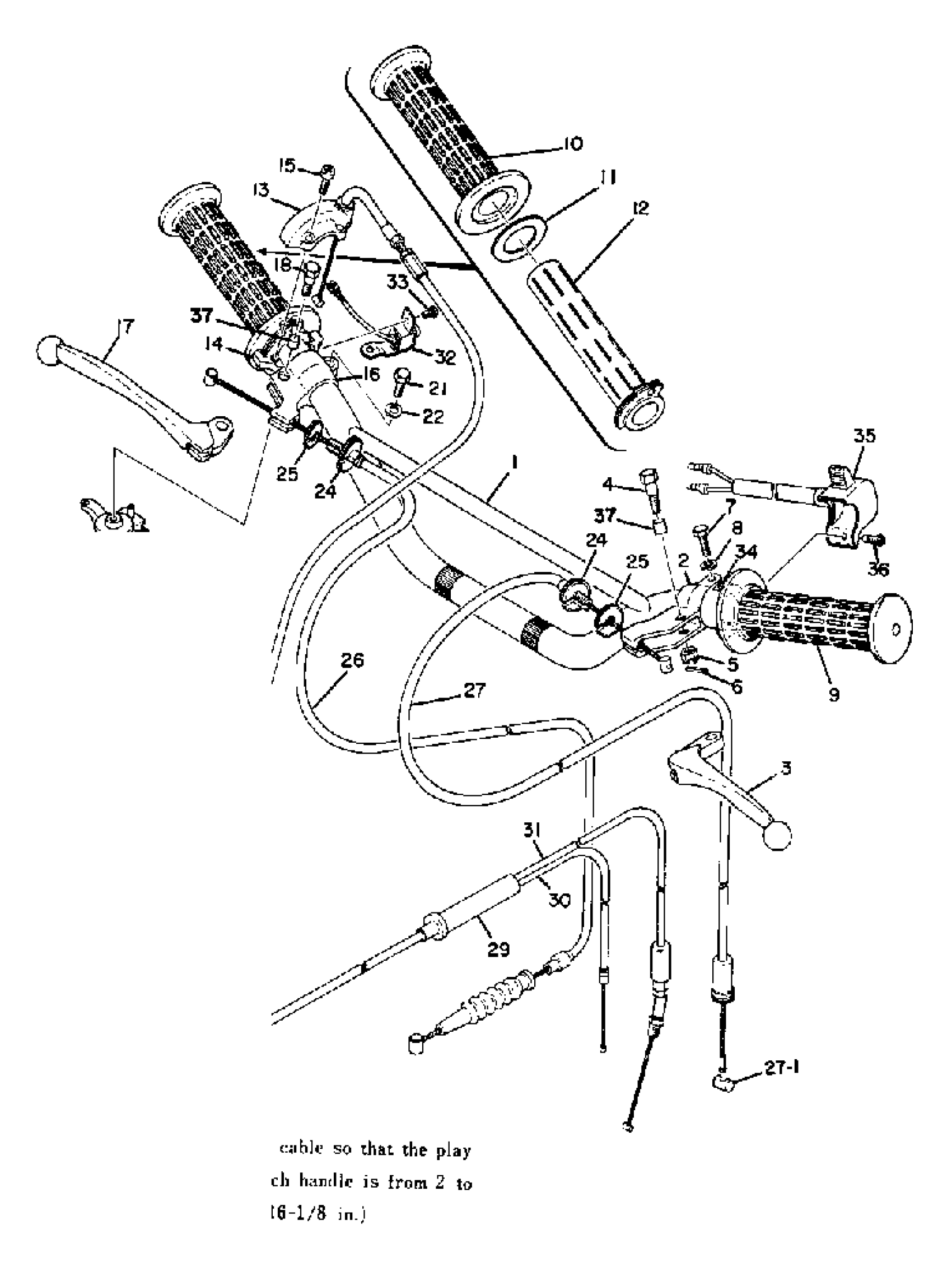

Yamaha AT1M (AT1E_AT1M) 1969 HANDLE & WIRE Diagram

#

Description
Price

1

END, WIRE

164-26363-00-00

$7.99

1

LEVER HOLDER ASSY 1

214-82910-07-00

Unavailable

1

HANDLEBAR

438-26111-00-00

Unavailable

1

UNAVAILABLE IN PRICE BOOK

438-26111-02-00

Unavailable

2

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

2

LEVER HOLDER ASSY 2

233-82920-32-00

Unavailable

3

LEVER(L.H)

214-83912-00-00

$23.99

4

. SCREW, LVR FITTING

214-83915-00-00

Unavailable

4

BOLT(3DM)

97024-06020-00

$8.49

5

. NUT, SLOTTED

95301-06900-00

Unavailable

5

NUT(650)

95380-06700-00

$8.49

6

. PIN, COTTER

91401-12018-00

Unavailable

7

BOLT(3DM)

97024-06020-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

GRIP LH

214-26241-00-00

Unavailable

10

GRIP (R.H)

1A0-26242-01-00

Unavailable

10

GRIP RH

214-26242-00-00

Unavailable

11

RING, LEAF

150-26249-00-00

Unavailable

12

TUBE, GUIDE

214-26243-00-00

Unavailable

13

CAP, GRIP UPPER

214-26281-01-00

Unavailable

14

CAP, GRIP LOWER

248-26282-00-00

Unavailable

15

SCREW, PAN HEAD

98580-05020-00

Unavailable

16

HOLDER, LEVER (R.H)

233-82921-31-00

Unavailable

17

LEVER(R.H)

233-83922-30-00

Unavailable

18

SCREW, LVR FITTING

(233-83915-00-00)

Unavailable

18

. BOLT

90109-05197-00

Unavailable

19

NUT, SLTED

95307-05900-00

Unavailable

20

. PIN, COTTER

91401-12018-00

Unavailable

21

BOLT(3DM)

97024-06020-00

$8.49

22

WASHER, SPRING

92995-06100-00

Unavailable

23

FRONT STOP SWITCH ASSY

232-83980-30-00

Unavailable

24

BOLT

90123-08002-00

Unavailable

25

NUT

90179-08030-00

Unavailable

26

CABLE, BRAKE

248-26341-00-00

Unavailable

27

WIRE, CLUTCH

248-26335-00-00

Unavailable

28

CABLE, THROTTLE 1

248-26311-01-00

Unavailable

29

CONNECTOR, CABLE

214-26261-01-00

Unavailable

30

CABLE, THROTTLE 2

248-26312-00-00

Unavailable

31

CABLE, PUMP

248-26321-00-00

Unavailable

32

SWITCH, HANDLE 1

261-83976-00-00

Unavailable

33

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

34

HOLDER, HANDLE SWCH

214-83974-00-00

Unavailable

35

SWITCH, HANDLE 2

214-83975-09-00

Unavailable

36

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

37

COLLAR, LEVER

214-83913-00-00

Unavailable
