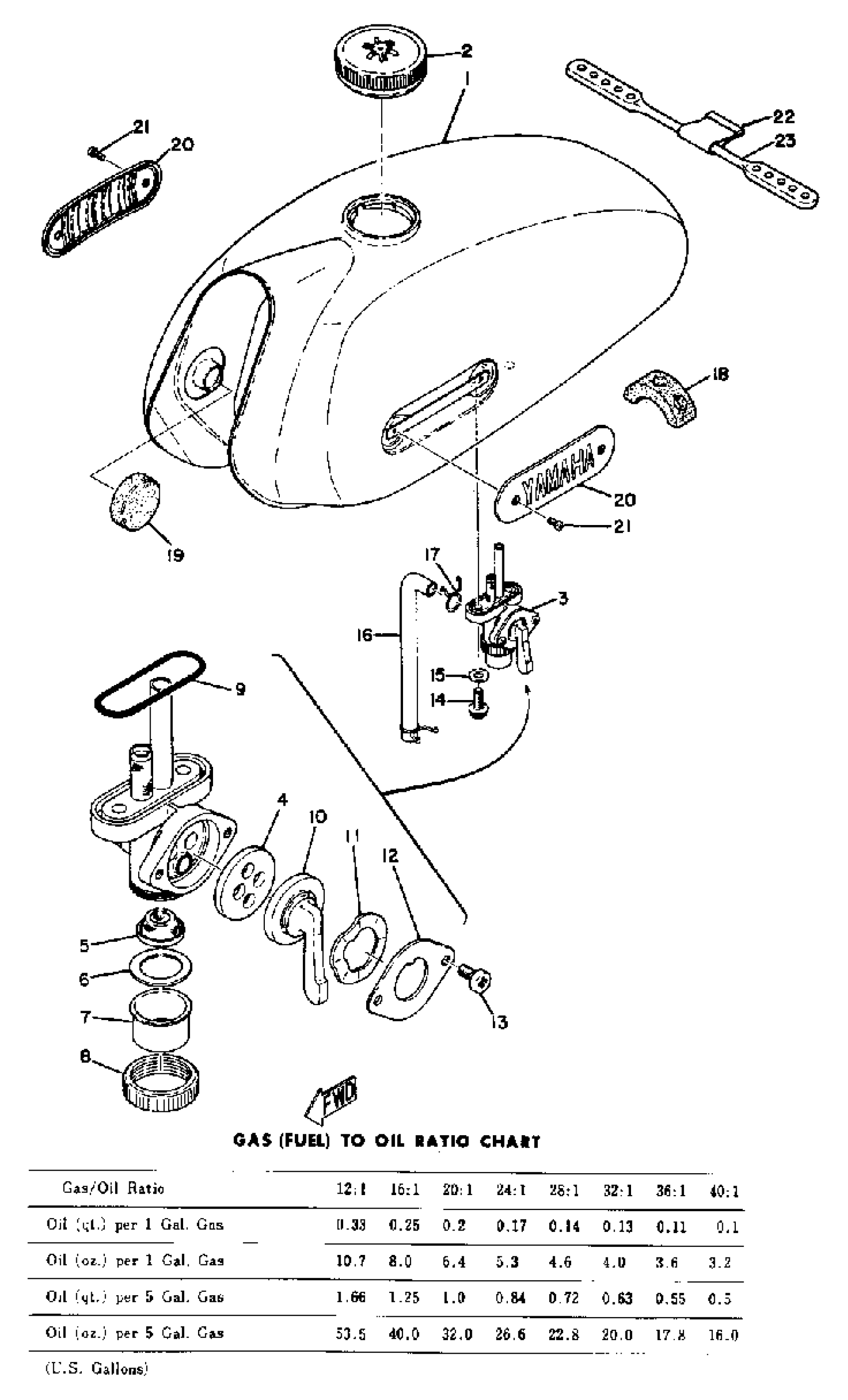

Yamaha AT1M (AT1E_AT1M) 1969 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

248-24110-00-06

Unavailable

2

CAP ASSY

122-24610-01-00

$22.99

3

FUEL COCK ASSY

498-24500-01-00

$127.99

3

FUEL COCK ASSY

498-24500-01-00

$127.99

4

VALVE

214-24523-00-00

$43.99

5

. NET, FILTER 2

214-24515-00-00

Unavailable

6

GASKET, FILTER

214-24522-00-00

Unavailable

7

. CUP, FILTER

214-24521-00-00

Unavailable

8

. NUT

214-24531-00-00

Unavailable

9

GASKET, BODY

214-24512-00-00

$30.99

10

LEVER, COCK

(214-24524-01-00)

Unavailable

11

WASHER WAVE 137245180000

90206-18025-00

Unavailable

12

PLATE, LEVER FITTING

(214-24525-00-00)

Unavailable

13

SCREW, LEVER FITTING

214-24535-00-00

$6.99

14

SCREW 256241430000

90149-06011-00

$5.60

15

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

15

GASKET(J17)

90430-06218-00

Unavailable

16

HOSE (L198)

90445-11293-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

DAMPER, LOCATING 3

(248-24183-00-00)

Unavailable

19

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

20

EMBLEM 1

227-24161-00-00

Unavailable

21

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

22

BAND, TANK FITTING 1

214-24173-00-00

Unavailable

23

CAP ASSY

127-24650-10-00

Unavailable

23

BAND, TANK FITTING 2

248-24173-00-00

Unavailable
