FRONT FORK & FRONT FENDER

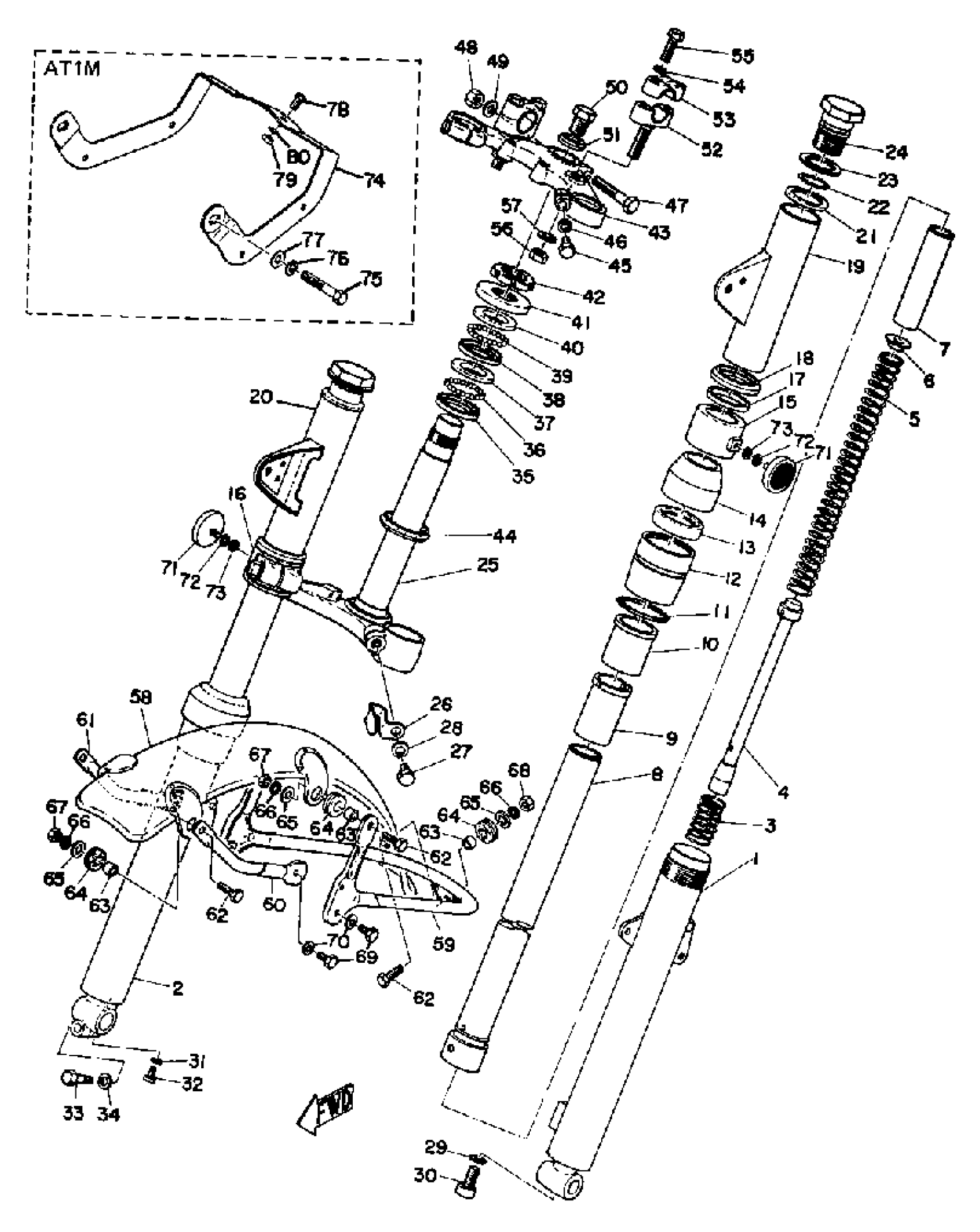

Yamaha AT1M (AT1E_AT1M) 1969 FRONT FORK & FRONT FENDER Diagram
#
1
TUBE, OUTER 1
(248-23126-00-35)
Unavailable
1
TOOL
UNA-VAILA-BL-EI
Unavailable
2
TUBE, OUTER 2
(248-23136-00-35)
Unavailable
3
SPRING, SUB
(248-23152-00-00)
Unavailable
4
CYLINDER, FRTFRK
(248-23170-01-00)
Unavailable
5
. SPRING, FRONT FORK
318-23141-00-00
Unavailable
6
SEAT, SPRING UPPER
(248-23142-00-00)
Unavailable
7
SPACER
(248-23118-00-00)
Unavailable
8
TUBE, INNER 1
(248-23124-00-00)
Unavailable
9
SPACER, OIL LOCK
(248-23166-00-00)
Unavailable
10
. METAL, SLIDE 1
(137-23125-01-00)
Unavailable
11
. O-RING
137-23147-00-00
Unavailable
12
OUTER NUT
(193-23150-40-00)
Unavailable
14
SEAL, DUST
248-23144-00-00
Unavailable
15
COVER, OUTER 1
(261-23122-60-00)
Unavailable
16
COVER, OUTER 1
(261-23122-60-00)
Unavailable
17
. GASKET (LAMP STAY)
291-23163-61-00
Unavailable
18
GUIDE, COVER LOWER
(248-23116-01-00)
Unavailable
19
COVER, UPPER 1
(248-23121-00-46)
Unavailable
20
COVER, UPPER 2
(248-23131-00-46)
Unavailable
21
GUIDE, COVER UPPER
(248-23115-01-00)
Unavailable
22
PACKING(O-RING)
146-23114-00-00
Unavailable
23
WASHER, CAP
(177-23112-00-00)
Unavailable
24
BOLT, CAP
(2K5-23111-00-00)
Unavailable
25
UNDER BRACKET
(248-23340-00-33)
Unavailable
26
HOLDER, CABLE 1
(256-23318-60-00)
Unavailable
27
BOLT 1
122-23346-02-00
Unavailable
28
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
29
GASKET
(214-23158-00-00)
Unavailable
30
BOLT,SOCKET
91314-08020-00
Unavailable
31
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
32
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
33
BOLT (682)
97013-08025-00
Unavailable
34
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
35
RACE, BALL 1
B6E-23411-00-00
Unavailable
36
BALL
93501-04011-00
Unavailable
37
RACE, BALL 2
B6E-23412-00-00
Unavailable
38
RACE, BALL 2
BP2-23412-00-00
Unavailable
39
BALL
93503-16003-00
Unavailable
40
RACE, BALL 1
BP2-23411-00-00
Unavailable
41
COVER, BALL RACE
122-23416-00-00
Unavailable
42
NUT
90179-25004-00
Unavailable
43
CROWN, HANDLE
(248-23435-03-33)
Unavailable
44
SEAL, DUST
164-23462-00-00
Unavailable
45
BOLT, HEXAGON
97013-08030-00
Unavailable
46
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
47
BOLT, HEXAGON
97013-08050-00
Unavailable
48
NUT, CROWN
95303-08800-00
Unavailable
49
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
50
BOLT
90101-14113-00
Unavailable
51
WASHER, SPECIAL SHAPE
90209-14022-00
Unavailable
52
HOLDER, HANDLE LWR
(214-23442-02-00)
Unavailable
53
HOLDER, HANDLE UPR
(315-23441-00-93)
Unavailable
54
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
55
BOLT, HEXAGON
97013-08030-00
Unavailable
56
NUT(3BM)
95314-10600-00
Unavailable
57
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
58
FENDER, FRONT
(214-21510-00-35)
Unavailable
58
FENDER, FRONT
(248-21510-00-35)
Unavailable
59
BRACKET, FENDER
(214-21512-00-93)
Unavailable
59
BRACKET, FENDER
(248-21512-00-93)
Unavailable
60
STAY, FENDER 1
(214-21513-00-00)
Unavailable
60
STAY, FENDER 1
(248-21513-00-00)
Unavailable
61
STAY, FENDER 2
(214-21514-00-00)
Unavailable
61
STAY, FENDER 2
248-21514-00-00
Unavailable
62
BOLT(3DM)
97024-06020-00
Unavailable
63
COLLAR (J10)
90387-06026-00
Unavailable
64
GROMMET 839774310000
90480-14023-00
Unavailable
65
WASHER, PLATE
90201-06380-00
Unavailable
66
WASHER, SPRING
92995-06100-00
Unavailable
67
NUT, HEXAGON
95380-06600-00
Unavailable
68
NUT (J17)
95380-06800-00
Unavailable
69
BOLT (661)
97013-06012-00
Unavailable
70
WASHER, SPRING
92995-06100-00
Unavailable
71
REFLECTOR, FRONT 1
(233-85111-00-00)
Unavailable
72
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
73
. WASHER, PLAIN
92990-05200-00
Unavailable
74
BRACKET, LICENSE
(263-21685-00-35)
Unavailable
75
BOLT, HEXAGON
97013-08050-00
Unavailable
76
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
77
WASHER, PLAIN
92990-08200-00
Unavailable
78
BOLT (661)
97013-06012-00
Unavailable
79
NUT, HEXAGON
95380-06600-00
Unavailable
80
WASHER, SPRING
92995-06100-00
Unavailable
