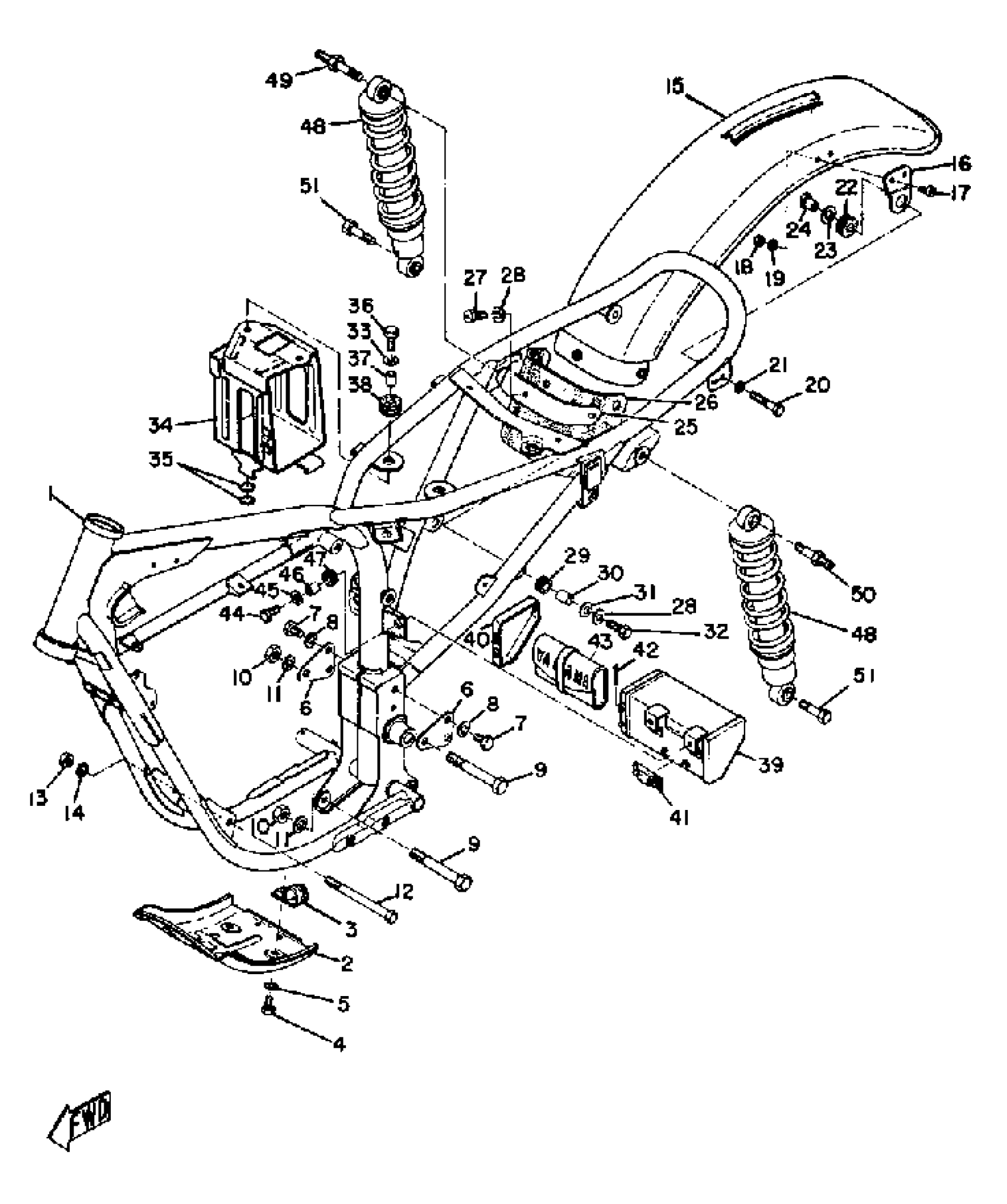

Yamaha AT1M (AT1E_AT1M) 1969 FRAME & REAR FENDER Diagram

#

Description
Price

1

WASHER PLATE 248217570000

90201-06074-00

$9.49

1

TOOL

UNA-VAILA-BL-EI

Unavailable

2

PROTECTOR, ENGINE

(248-21471-00-33)

Unavailable

3

BRACKET, PROTC FRT

(214-21433-00-33)

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

STAY, ENGINE 2

(248-21315-00-00)

Unavailable

7

BOLT, HEXAGON

97013-08016-00

$1.01

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

BOLT, HEXAGON

97321-10090-00

Unavailable

10

NUT(3BM)

95314-10600-00

$2.39

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

BOLT, FLANGE(2UJ)

95814-08110-00

$7.49

13

NUT(6L2)

95333-08600-00

$2.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

FENDER, REAR

(248-21610-00-35)

Unavailable

16

STAY, FENDER 1

(248-21613-00-91)

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

BOLT

97013-08045-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

22

DAMPER, FRONT

168-21638-00-00

Unavailable

23

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

24

NUT, REAR FENDER

248-21635-00-00

Unavailable

25

BAND, FLAP

(248-21622-00-33)

Unavailable

26

GUARD, MUD

(248-21629-00-00)

Unavailable

27

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

GROMMET 839774310000

90480-14023-00

Unavailable

30

COLLAR (J10)

90387-06026-00

Unavailable

31

WASHER, PLATE

90201-06380-00

Unavailable

32

BOLT, HEXAGON

97017-06025-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

BOX, BATT.

(248-21240-00-33)

Unavailable

34

BOX, BATT.

(261-21240-00-33)

Unavailable

35

O-RING (137)

93210-12014-00

Unavailable

36

BOLT, HEXAGON

97017-06025-00

Unavailable

37

COLLAR (J10)

90387-06026-00

Unavailable

38

DAMPER

248-21717-00-00

Unavailable

39

BOX, TOOL

(248-21170-00-33)

Unavailable

40

CAP, TOOL BOX

(248-21399-00-00)

Unavailable

41

DAMPER

(248-21746-00-00)

Unavailable

42

PIN, COTTER(6L5)

91490-25030-00

Unavailable

43

TOOL KIT

(315-W2810-10-00)

Unavailable

44

BOLT(3DM)

97024-06020-00

Unavailable

45

WASHER, PLATE

90201-06380-00

Unavailable

46

COLLAR (J10)

90387-06026-00

Unavailable

47

GROMMET 839774310000

90480-14023-00

Unavailable

48

SHOCK ABS ASSY, REAR

291-22210-71-00

Unavailable

49

BOLT ROUND 214222410000

90106-10025-00

Unavailable

49

BOLT, STUD

(90116-10116-00)

Unavailable

50

BOLT, STUD

(90116-10115-00)

Unavailable

51

SEAT, SPRING UPPER

(214-22213-00-00)

Unavailable

51

SEAT, SPRING UPPER

(291-22213-71-00)

Unavailable

51

BOLT, DOME HEAD

(90106-10026-00)

Unavailable
