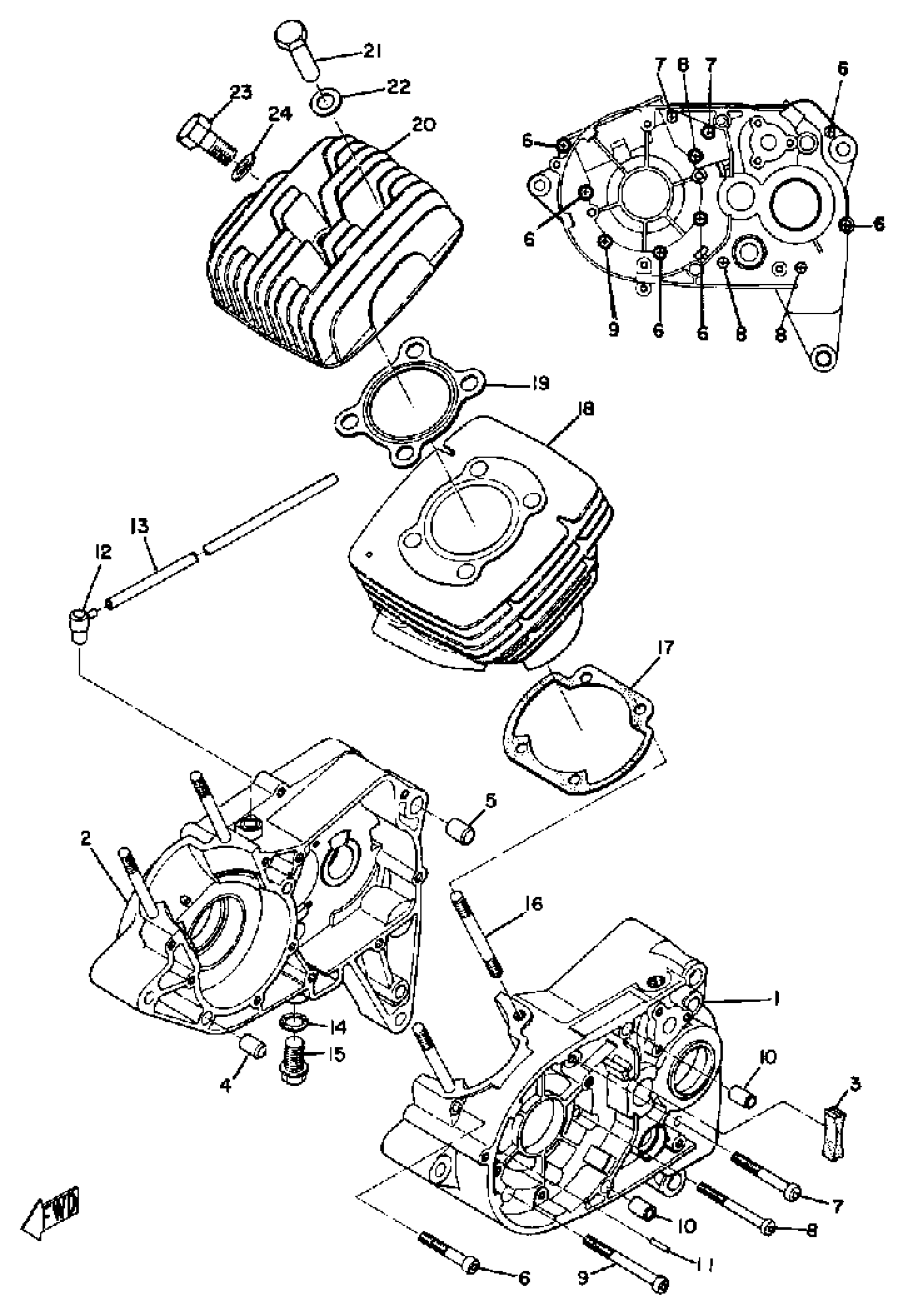

Yamaha AT1M (AT1E_AT1M) 1969 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(248-15111-02-00)

Unavailable

2

CRANKCASE 2

(444-15121-01-00)

Unavailable

3

GROMMET

248-15357-00-00

$7.99

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

5

PIN, DOWEL

99530-14016-00

$3.80

6

SCREW PAN HEAD

98580-06545-00

$5.60

7

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

8

SCREW PAN HEAD

98580-06565-00

Unavailable

9

SCREW PAN HEAD

98580-06570-00

$18.99

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

PIN, DOWEL

93603-14026-00

$8.49

12

BREATHER

583-15371-00-00

$6.99

13

HOSE(7EG)

90446-07241-00

$10.49

14

GASKET (3JD1)

90430-12207-00

$7.99

15

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

16

BOLT (248-11361-00)

90116-08064-00

Unavailable

17

GASKET, CYLINDER

1WE-11351-00-00

Unavailable

18

CYLINDER 1

(248-11311-00-00)

Unavailable

18

CYLINDER 1

(248-11311-70-00)

Unavailable

19

GASKET, CYLINDER HEAD

248-11181-00-00

Unavailable

20

HEAD, CYLINDER 1

(248-11111-02-00)

Unavailable

20

HEAD, CYLINDER 1

(248-11111-71-00)

Unavailable

21

NUT (3V6)

90179-08303-00

Unavailable

22

WASHER PLATE 278111750000

90201-12362-00

Unavailable

23

PLUG, BLIND

90340-14022-00

Unavailable

24

GASKET

214-11198-01-00

Unavailable

24

GASKET KIT AT1

(248-00000-20-00)

Unavailable
