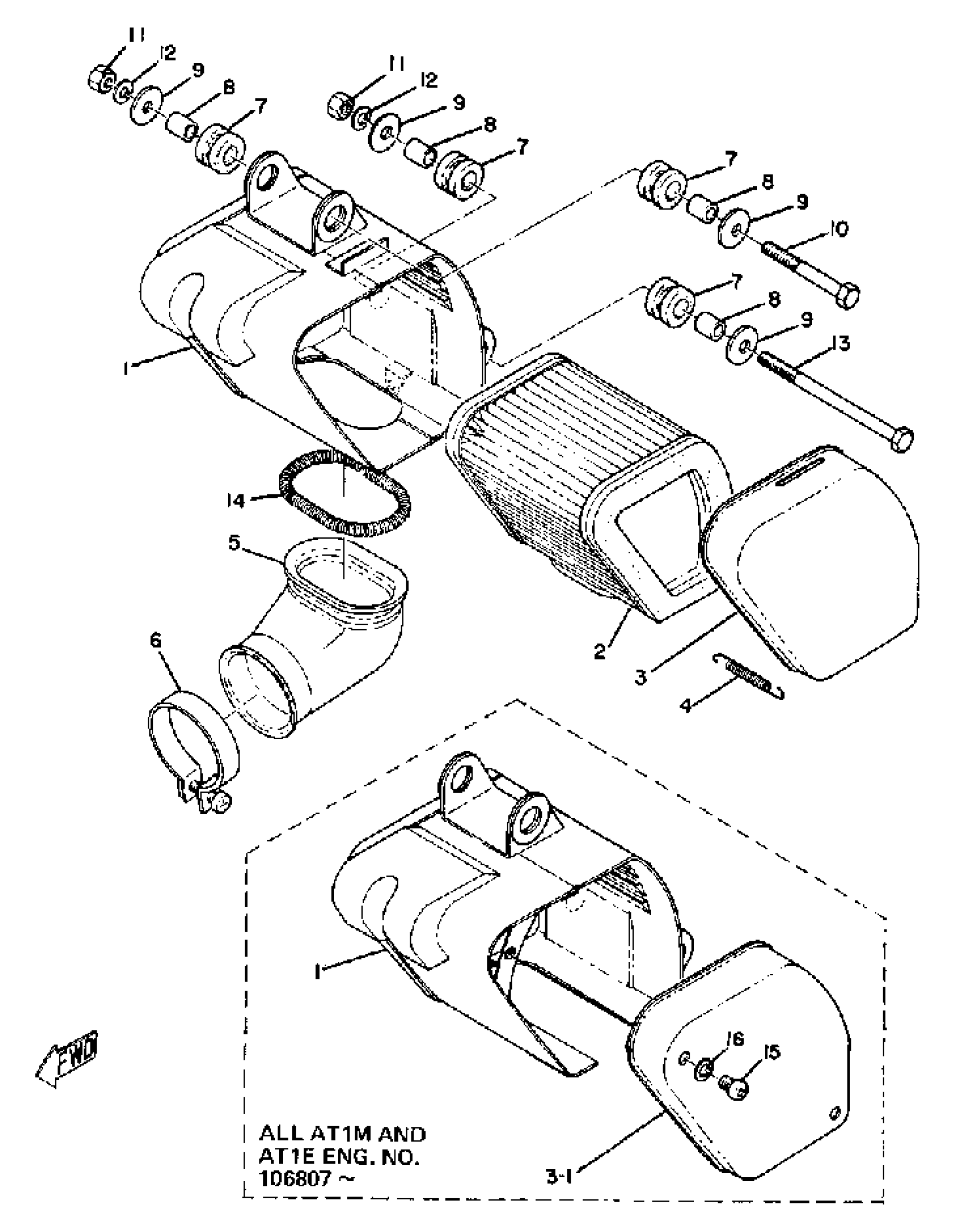

Yamaha AT1M (AT1E_AT1M) 1969 AIR CLEANER Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

(248-14411-01-33)

Unavailable

2

ELEMENT, AIR CLNR

248-14451-00-00

Unavailable

3

CAP, CLEANER CASE 1

(248-14412-01-33)

Unavailable

4

HOLDER, WIRE

(248-14415-00-00)

Unavailable

5

JOINT, AIR CLNR 1

248-14453-00-00

Unavailable

6

CLAMP, H0SE (29R)

90460-49248-00

$24.99

7

GROMMET 839774310000

90480-14023-00

$7.49

8

COLLAR (J10)

90387-06026-00

$8.49

9

WASHER, PLATE

90201-06380-00

$0.60

10

BOLT(62J)

97013-06070-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

BOLT(3GG)

97017-06090-00

$2.82

14

SPRING TENSION 220144550000

90506-06106-00

$9.49

15

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

16

. WASHER, PLAIN

92990-05200-00

Unavailable
