Description

Price

10a1

Fixed Flange Ass'y

417224332

$209.99

10a2

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

417225158

$349.99

10a2b

Bushing

293250389

$21.99

10a2c

Circlip

293370137

$3.28

10a2d

Interior Pulley Roller

417225138

$70.99

10a2f

Pulley Roller Ext

417224916

$31.99

10a2g

Pin

417224510

$9.95

10a2h

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10a3

Drive Pulley Spider Ass'y | Includes 10a3 to 10a3h

417225180

$209.99

10a3b

Stopper Spring

417224910

$10.16

10a3c

Spring Guide

417224614

$10.49

10a3d

Pulley Roller Ass'y

417225136

$33.99

10a3f

Axle - 10mm

417224204

$10.49

10a3g

Thrust Washer

417224868

$2.32

10a3h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10b

Clutch Spring

417224166

$28.49

10c

Seat Spring

417224003

$10.38

10d

Circlip

293370116

$3.28

10f1

Ramp 951

417224038

$32.99

10f2

RH Lever

417224086

$9.10

10f3

LH Lever

417224114

$5.61

10f4

Pivot 38mm

417224222

$5.79

10f5a

Molded Cam

417224113

$8.89

10f6

Weight

417224363

$4.44

10g

Pin Ramp

417224694

$10.49

10h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10j

Spacer

417224757

$24.49

10k

VIbration Damper

417224682

$149.99

10m

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Drive Pulley Bolt

417300651

$32.99

100a

Fixed Sheave Driven Pulley Ass'y | Includes 100a to 100a6

417127945

$539.99

100a3

Pulley Roller

417128056

$47.99

100a4

Pivot Stud

417127294

$14.49

100a5

Lock Washer 8 mm

250200009

$2.11

100a6

Spring Pin

250400070

$2.00

100b

Sheave Driven Pulley Sliding Ass'y | Includes 100b to 100b3

417127659

$379.99

100b2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100b3

Circlip

293370049

$4.99

100c

Cam Ass'y | Includes 100c to 100c3

417127672

$159.49

100c2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100c3

Circlip

293370049

$4.99

100d

Black, Return Spring

417127039

$46.49

100f

Swivel Abutment

417127116

$9.39

100g

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100h

Calibration Ass'y

415129604

$21.49

100j

Socket Screw M5 X 25

250000981

$1.68

100k

Flat Washer M5

234051410

$0.53

100m

Elastic Stop Nut M5

232551414

$0.87

100n

Washer

417127155

$8.26

100p

Ball Bearing

504152574

$35.99

100q

Serrated Lock Washer INT.EXT.M8

250200199

$3.17

200

Drive Belt

417300571

$239.99

300

Belt Guard Ass'y | Includes 300 to 300d

417300621

$77.99

300d

Avex Rivet

390909200

$0.30

101

QRS XD Roller Kit (2)

861805577

$82.99

102

PDrive Torque Rollers Maintenance Kit

861805576

$158.99

103

Pdrive Rampes Rollers Maintenance Kit

861805561

$121.99

310

Torx Screw M6 X 35

250000541

$2.11

320

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

350

Guide

417300622

$11.49

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

420

Washer

250200140

$1.01

500

Rear Guard Support

417300615

$14.49

550

Stopper

417300632

$5.99

560

Avex Rivet

390909200

$0.30

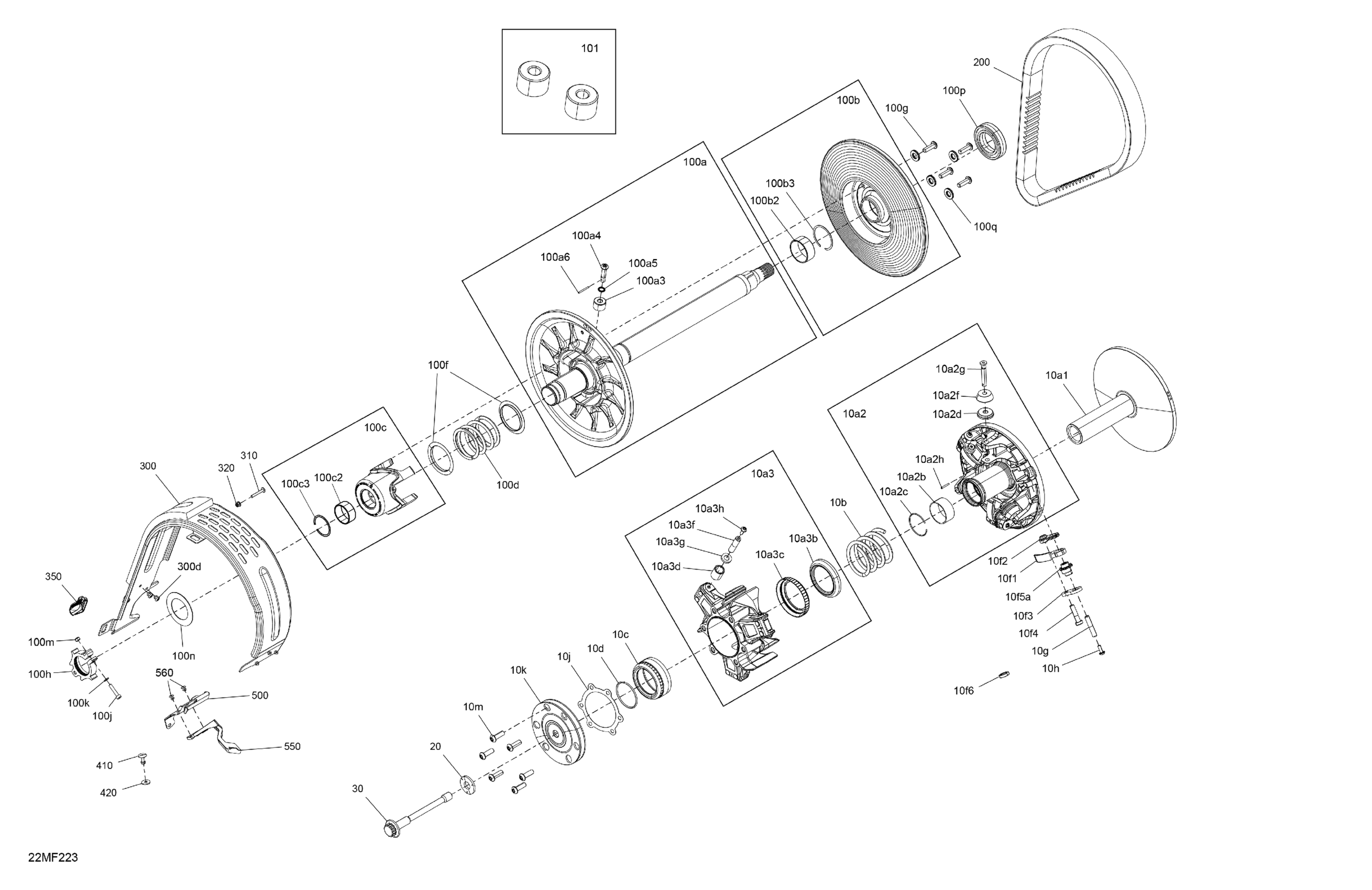

Ski-Doo Asia - FREERIDE - STD - 850 E-TEC Turbo R - VKTG - Scandi Blue - 15X146X2.5P Track, 2026 04- Drive - Pulley Diagram

Fixed Flange Ass'y

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

Bushing

Circlip

Interior Pulley Roller

Pulley Roller Ext

Pin

Spring Pin 2.6MM X 20.5MM

Drive Pulley Spider Ass'y | Includes 10a3 to 10a3h

Stopper Spring

Spring Guide

Pulley Roller Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Seat Spring

Circlip

Ramp 951

RH Lever

LH Lever

Pivot 38mm

Molded Cam

Weight

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

Spacer

VIbration Damper

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Drive Pulley Bolt

Fixed Sheave Driven Pulley Ass'y | Includes 100a to 100a6

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Sheave Driven Pulley Sliding Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Black, Return Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Serrated Lock Washer INT.EXT.M8

Drive Belt

Belt Guard Ass'y | Includes 300 to 300d

Avex Rivet

QRS XD Roller Kit (2)

PDrive Torque Rollers Maintenance Kit

Pdrive Rampes Rollers Maintenance Kit

Torx Screw M6 X 35

Hex. Flange Elastic Nut M6 x 1.0

Guide

Black, Pop Rivet 3/16 X ,550

Washer

Rear Guard Support

Stopper

Avex Rivet
