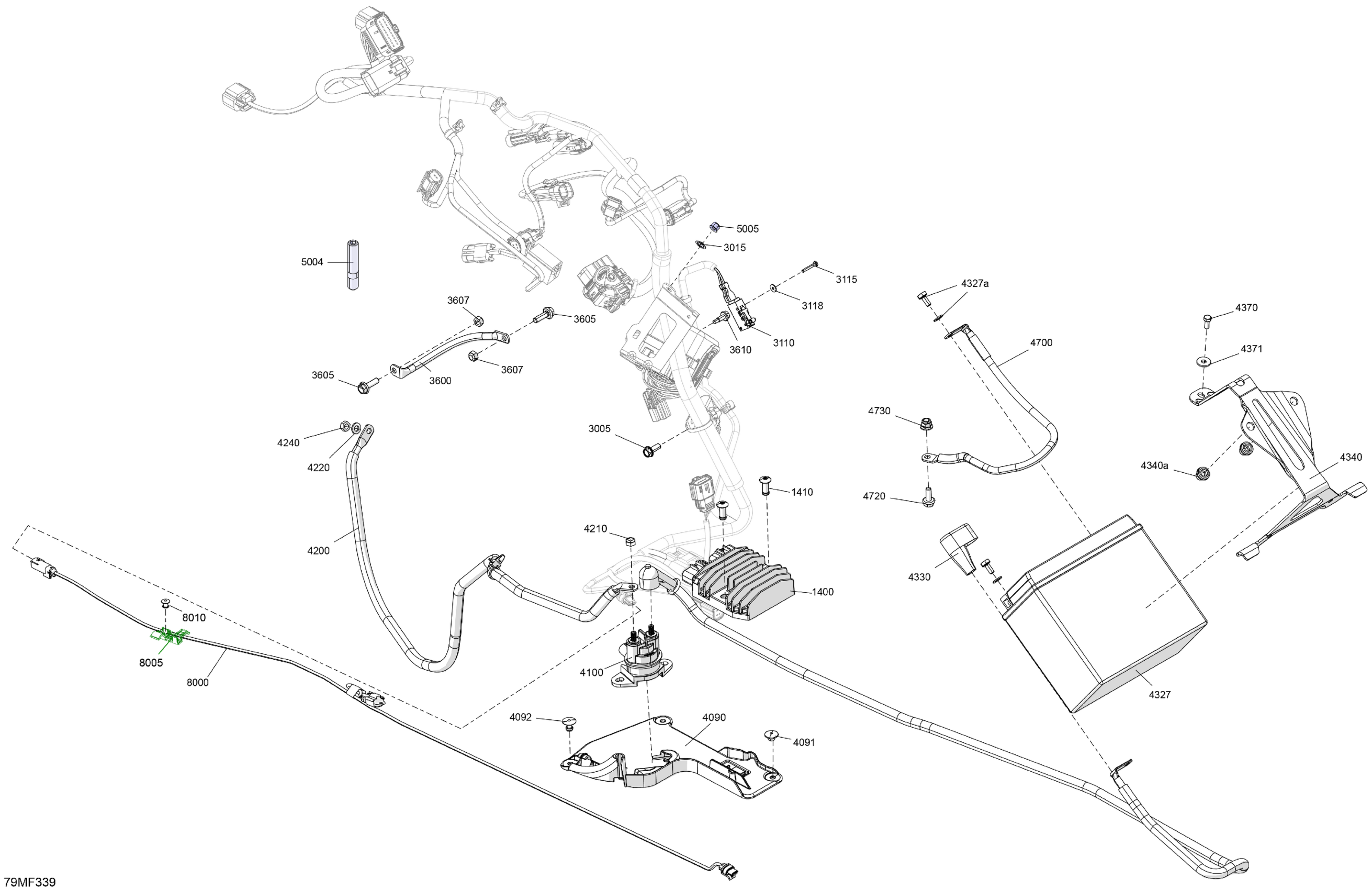

Ski-Doo Asia - EXPEDITION - SPORT - 600 ACE - KCTC - Neo Yellow - 16X154X1.5CH Track, 2026 08- Electric - Lower Section Diagram

Description

Price

1400

Voltage Regulator

710010539

$103.99

1410

Monobolt Rivet 6.4

293150182

$3.09

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3015

Push Nut

250100034

$1.29

3110

Switch Ass'y

515177460

$46.99

3115

Hex Screw M3 X 20

207132044

$2.11

3118

Flat Washer M3, Stainless

234032600

$0.55

3600

Ground Wire

515178338

$16.49

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4090

Starter Relay Support

515178244

$3.49

4091

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

4092

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

4100

Starter Relay

278003012

$42.49

4200

Battery Wire

515178336

$47.99

4210

Elastic Stop Nut M6

232561414

$0.55

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561414

$0.55

4327

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$146.94

4327a

Battery Bolt Kit

715500541

$3.29

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$0.90

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$26.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11

5004

Double End Stud M5X0.8X16

515180100

Unavailable

5005

Hex. Flange Elastic Nut M5

233251414

$1.04

8000

Taillight Wiring Harness

515179915

$94.99

8005

Wiring Harness Support

515179630

$11.01

8010

Pop Rivet 3/16 X ,425

293150293

$0.35
