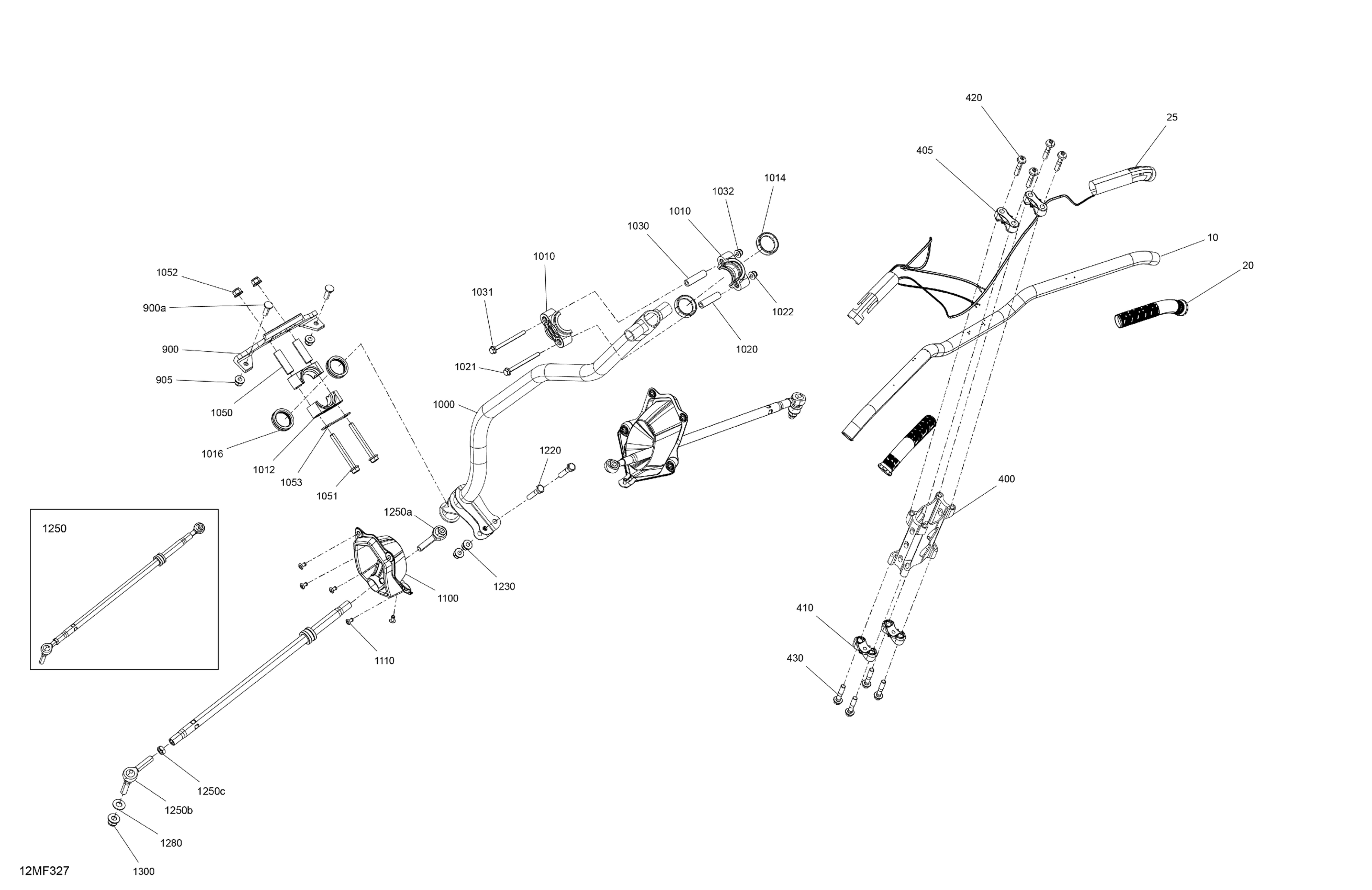

Ski-Doo Asia - EXPEDITION - SPORT - 600 ACE - KCTC - Neo Yellow - 16X154X1.5CH Track, 2026 03- Mechanic - Steering Diagram

Description

Price

Deep Black, Handlebar

506153377

$67.99

Grip 148 mm

506153134

$23.49

Heating Element 28W

506153403

$39.99

400

Riser Kit 145

860201718

$67.99

405

Steering Support

506152894

$14.49

410

Steering Support

506152894

$14.49

420

Button Head Torx Screw M8 X 38

250000904

$2.11

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

900

Support Plate | Includes 900 to 900a

506152787

$37.99

900a

Clinch Stud

250300038

$4.29

905

Hex. Elastic Flange Nut M8

233281416

$1.48

1000

Main Tube

506153014

$209.99

1010

Upper Half Housing

506152219

$1.79

1012

Lower Half Housing

506153048

$6.92

1014

Upper Vibration Ring

506152292

$0.74

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506153249

$12.99

1021

Hex. Flange Screw M6 x 75

250001114

$4.44

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1030

Housing Bushing

506153249

$12.99

1031

Hex. Flange Screw M6 x 75

250001114

$4.44

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506153248

$12.99

1051

Hex. Flange Screw M8 X 70

207687044

$7.41

1052

Hex. Elastic Flange Nut M8

233281416

$1.48

1053

Stopper Plate

506152938

$12.99

1100

Cap

506153294

$26.99

1110

Pop Rivet 3/16"

293150008

$0.50

1220

Hex. Screw M8 X 40

207084044

$1.15

1230

Hex. Elastic Flange Nut M8

233281416

$1.48

1250

Rod Ass'y | Includes 1250 to 1250c

506153056

$80.49

1250a

LH Threaded Ball Joint

506152344

$41.49

1250b

RH Threaded Ball Joint

506152684

$44.49

1250c

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
