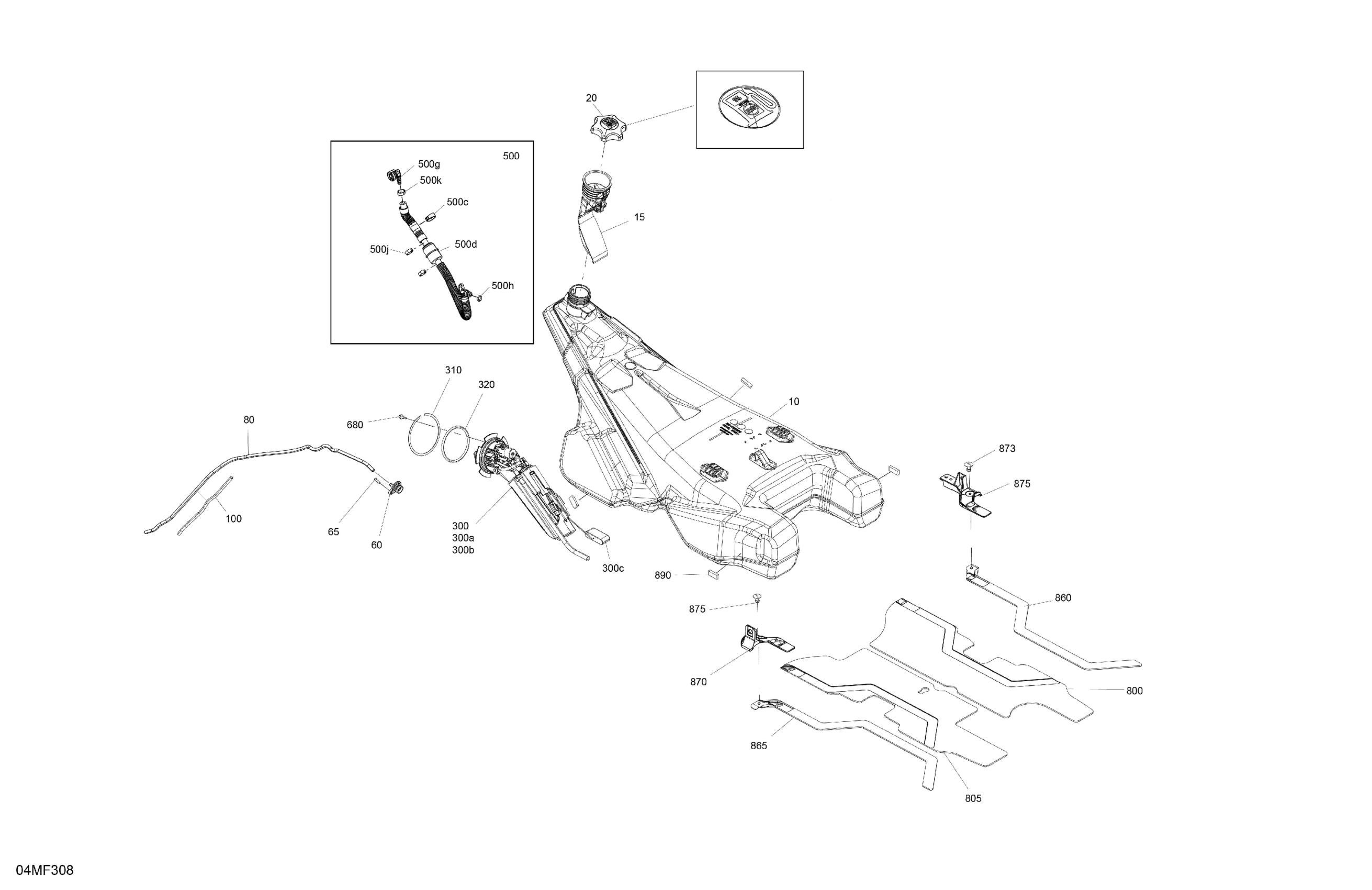

Ski-Doo Asia - EXPEDITION - LE - 900 ACE TURBO - ACTH - Neo Yellow - 20X154X1.5CSS Track, 2026 Engine - Fuel Diagram

Description

Price

Fuel Tank

513034100

$256.12

Tube Ass'y

513033959

$26.89

Fuel Tank Cap

513034170

$25.35

Check Valve

513033849

$36.89

Truss Torx Screw K40 X 16

250000918

$2.06

Polyurethane Hose 10000Mm Long

219704410

$46.12

100

Protector Tube | Not shown

503195447

$12.58

300

Fuel Pump Ass'y | Includes 300 to 300c

513034083

$257.66

300a

Canister

415130507

$80.74

300b

Filter

415130508

Unavailable

300c

Fuel Level Sensor

415130727

$136.89

310

Circlip

513034097

$12.83

320

O-Ring

513033862

$17.66

500

Hose Ass'y | Includes 500 to 500k

513034257

$71.51

500c

Ring

513033910

$6.86

500d

Fuel Filter

513034047

$20.89

500g

Elbow Fitting 90°

293710105

$10.58

500h

O-Ring

513033668

$9.45

500j

Crimp Clamp, 15.3-706R

293650047

$2.64

500k

Crimp Clamp

293650053

$2.42

680

Hex. Flange Screw M5 X 16

250000911

$0.70

800

RH Insulated Foam

513034052

$10.77

805

LH Insulated Foam

513034053

$10.77

860

RH Foam

513033981

$4.43

865

LH Foam

513033982

$4.43

870

LH Trim

513034242

$7.80

873

RH Trim

513034243

$7.80

875

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

890

Tank Guard

513034038

$4.03
