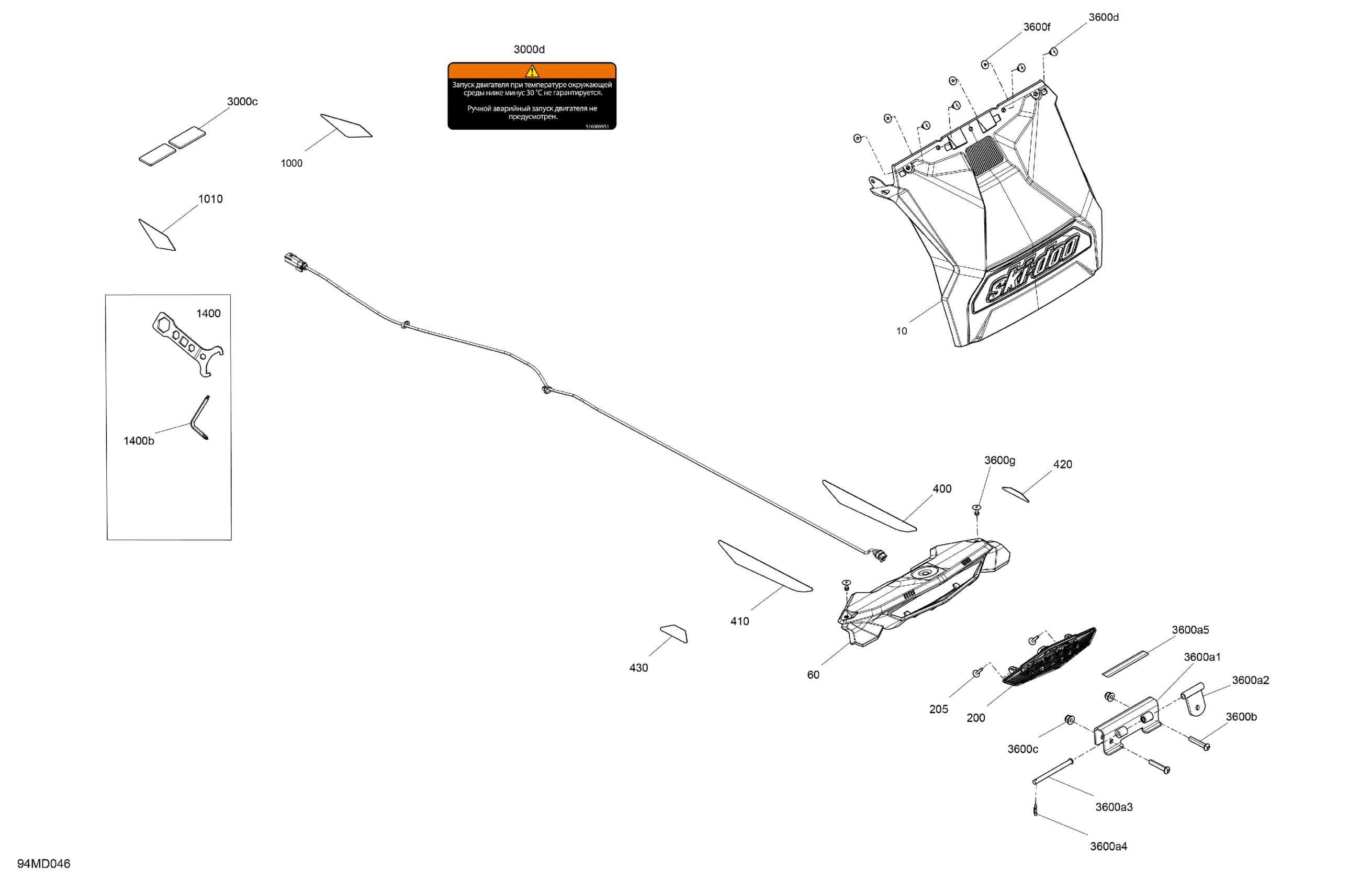

Ski-Doo Asia - EXPEDITION 600 ACE - SPORT - KCRB - Neo Yellow - 154X16X1.5CH Track, 2024 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001863

$137.49

Light Fairing

520001487

$20.99

200

Tail Light

520002710

$78.49

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

420

Amber, LH Rear Reflector

520001862

$4.99

430

Amber, LH Rear Reflector

520001861

$4.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3000c

Amber, Reflector

520002680

$20.99

3000d

Warning Decal, Security

516009951

Unavailable

3600a1

Support

511000768

$31.99

3600a2

Hitch Plate Welded

511000521

$16.33

3600a3

Lock Pin

511001451

$9.49

3600a4

Cotter Pin

371800200

$0.53

3600a5

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600b

Socket Head Screw M8 X 45

205484566

$1.58

3600c

Elastic Flange Nut M8

233281466

$1.01

3600d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3600f

Washer

517124300

$0.19

3600g

Pop Rivet 3/16"

293150100

$1.09
