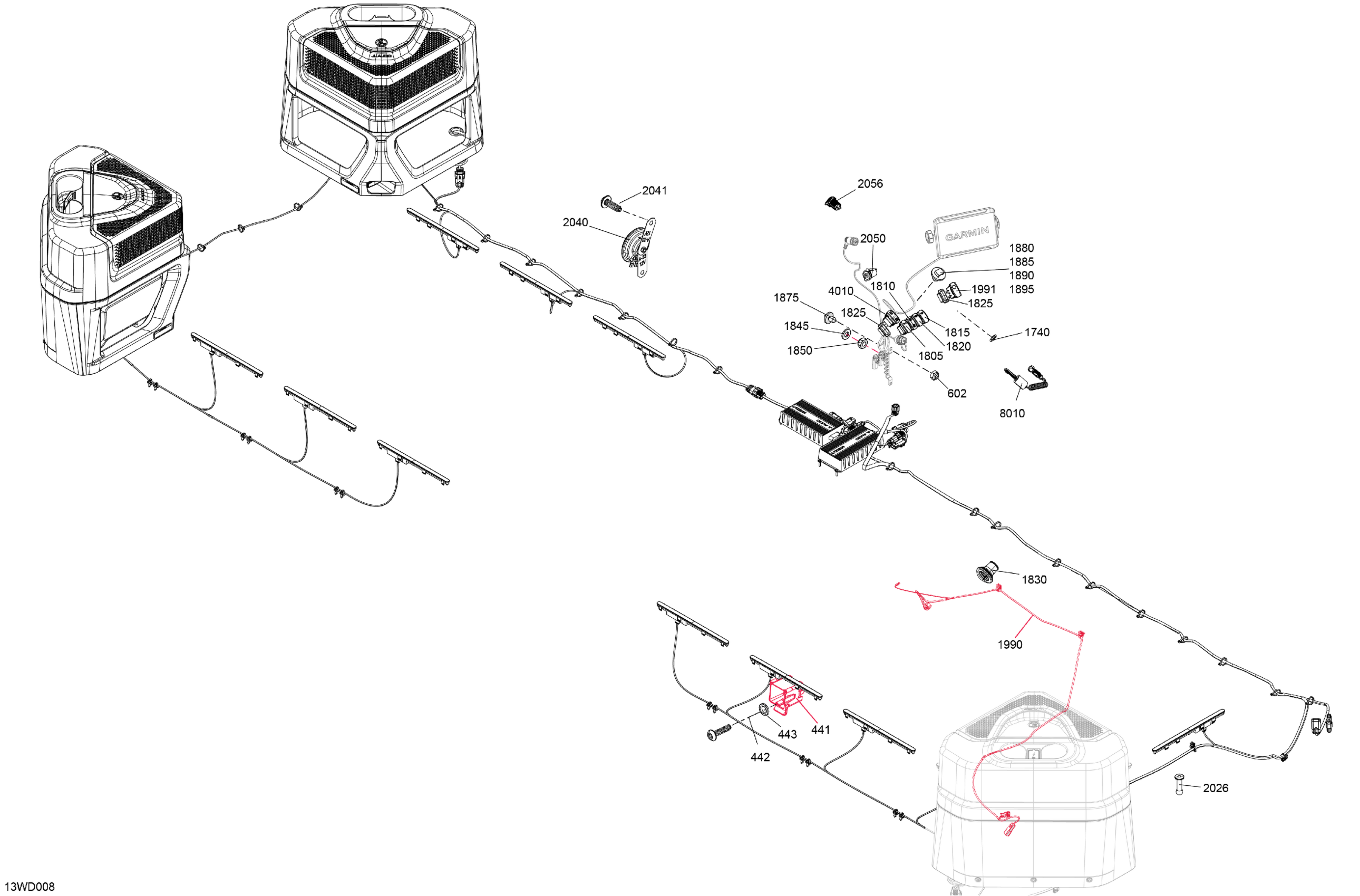

Sea-doo Asia - CRUISE 21 - 230 - 45RT - Blue - Trailer Galv - CAT2B, 2024 02- MECHANICS - Electric - Upper Section Diagram

Description

Price

441

Switch Support

278004308

$19.99

442

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

443

Sealing Washer

250200114

$4.44

602

Elastic Stop Nut M6, Brass

232561200

$4.23

1601

Hex. Flange Screw K50 X 20

241152060

$1.99

1740

Specialized Nut

278004274

$3.28

1805

Horn Switch

278003690

$52.99

1810

Nav & Anchor Light Switch

278003691

$35.49

1815

Pump Switch

278003692

$55.99

1820

Vent Switch

278003693

$46.49

1825

Plug

278004279

$3.29

1830

Cable Boot

293720134

$12.69

1845

Stainless Flat Washer M6

234061600

$0.33

1850

Elastic Stop Nut M6, Brass

232561200

$4.23

1875

Mount Dart

710008294

$1.04

1880

Mount Dart

710008294

$1.04

1885

Mount Dart

710008294

$1.04

1890

Mount Dart

710008294

$1.04

1895

Mount Dart

710008294

$1.04

1990

Extinguisher System Wiring Harness

278004226

$78.99

1991

Pilot Light

278004190

$57.99

2001

Anchorage Tie Wrap

293750103

$4.65

2026

Pop Rivet 3/16"

293150005

$0.52

2040

Horn

278003906

$54.99

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

2045

Stainless, Flat Washer 8 mm

234081600

$0.55

2050

12V Power Outlet

710005374

$33.99

2056

USB Outlet

219400510

$42.99

4010

Courtesy Light Switch

278003822

$33.99

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$31.99
