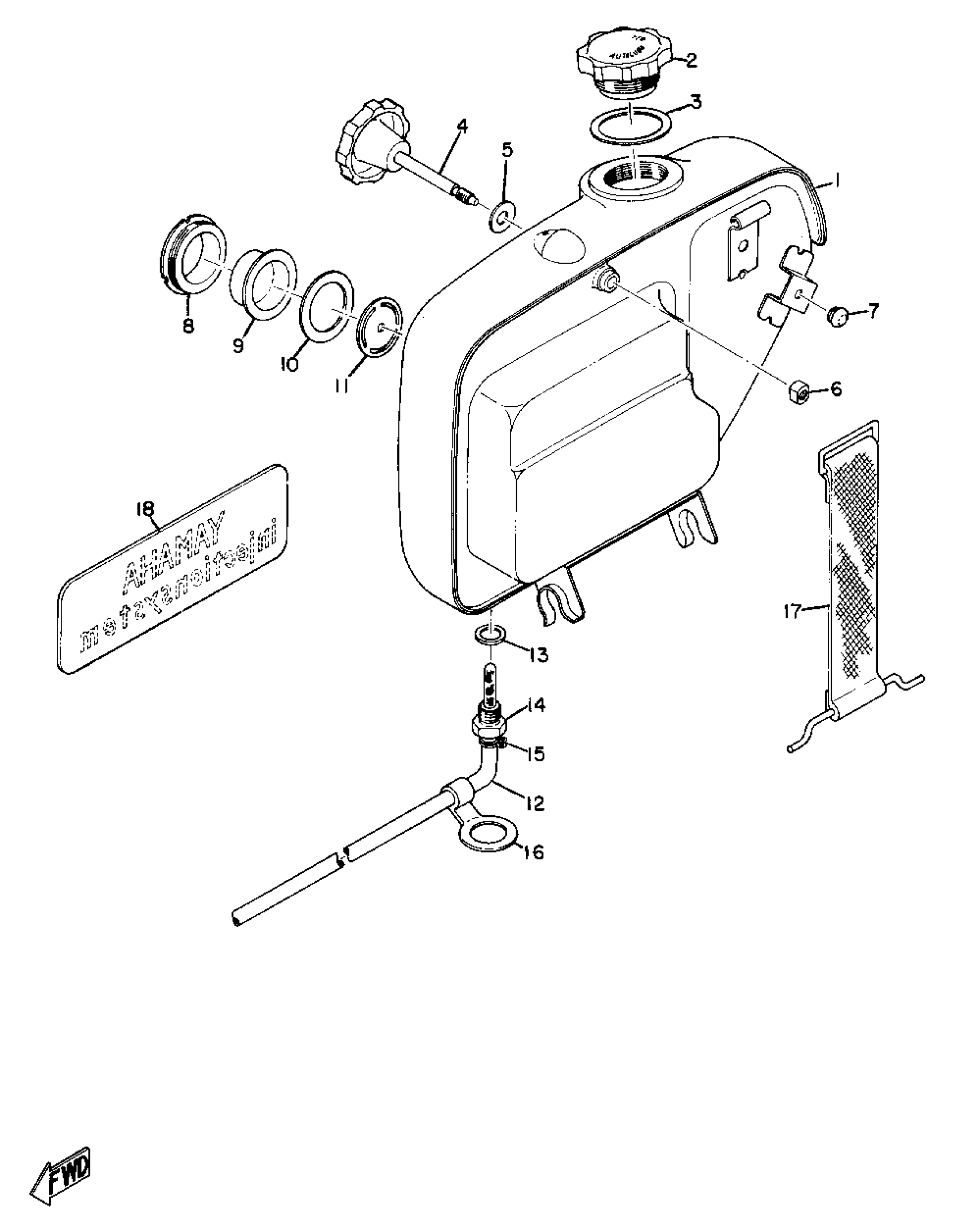

Yamaha AS2C (AS2C) 1969 OIL TANK Diagram

#

Description

Price

1

TANK, OIL

(183-21751-00-01)

Unavailable

1

TANK, OIL

(183-21751-00-02)

Unavailable

2

OIL TANK CAP ASSY

183-21770-12-00

Unavailable

3

GASKET 214217720000

90430-29114-00

$8.49

4

KNOB, SIDE COVER 1

(183-21714-00-00)

Unavailable

5

WASHER PLATE 122217250000

90202-07015-00

$8.49

6

NUT(650)

95380-06700-00

$8.49

7

DAMPER, LOCATING 1

(137-21778-00-00)

Unavailable

8

NUT,SPEC'L SHAPE

90179-36107-00

Unavailable

9

LENS, LEVEL GAUGE

137-21764-00-00

Unavailable

10

GASKET, LEVEL GAUGE

(137-21763-00-00)

Unavailable

11

GAUGE, LEVEL

(137-21761-00-00)

Unavailable

12

PIPE 2

3YR-24312-00-00

$18.49

13

GASKET

(90430-10029-00)

Unavailable

14

SCREW, UNION

(137-21768-01-00)

Unavailable

15

CLIP 101235600

90467-08003-00

Unavailable

16

CLAMP

(90464-09007-00)

Unavailable

17

BAND, TANK FITTING

(174-21776-00-00)

Unavailable

18

EMBLEM 2

(117-21782-00-00)

Unavailable
