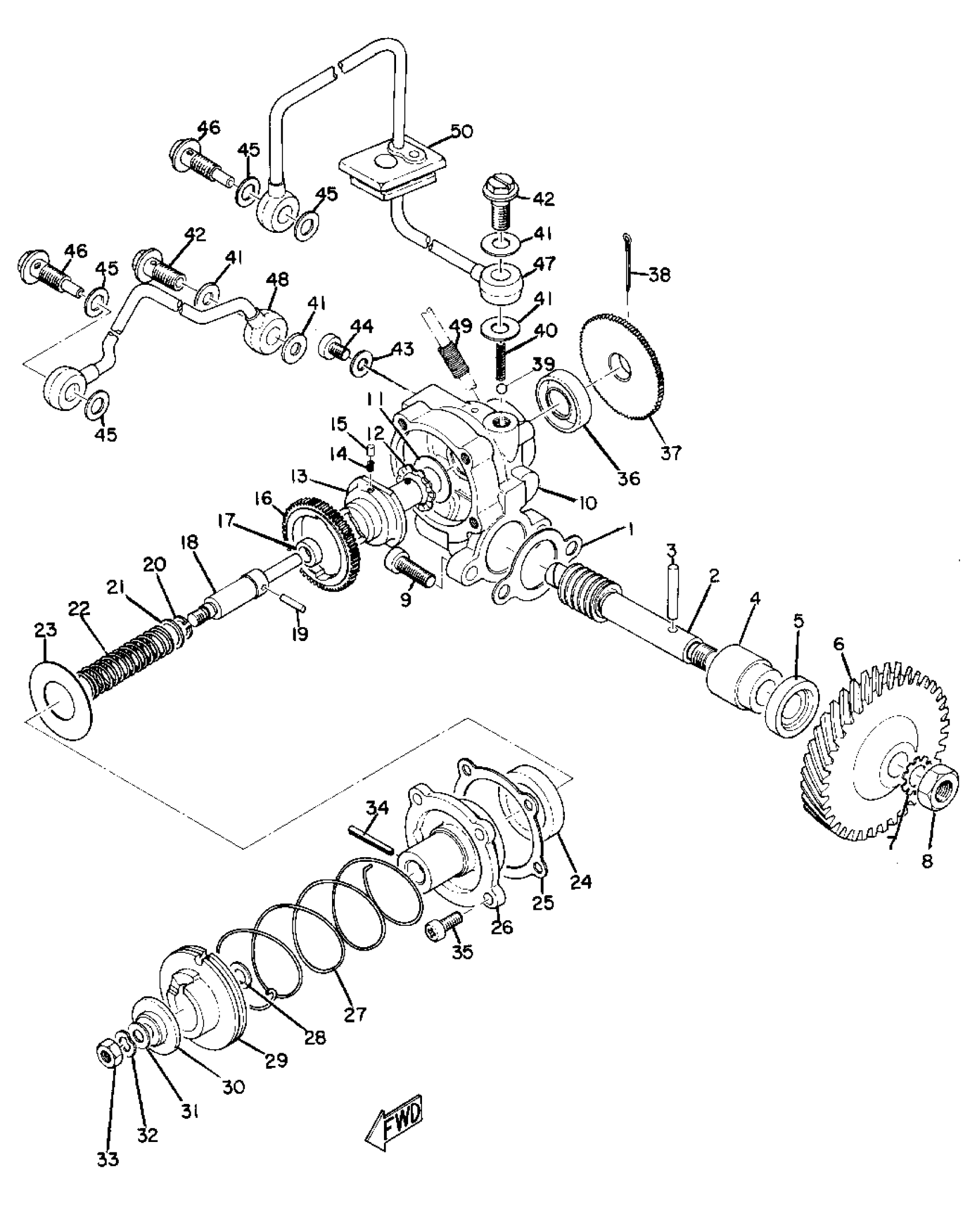

Yamaha AS2C (AS2C) 1969 OIL PUMP Diagram

#

Description

Price

1

OIL PUMP ASSEMBLY

(183-13101-02-00)

Unavailable

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SHAFT, WORM

(174-13175-00-00)

Unavailable

3

PIN,DOWEL (137)

93603-22028-00

$3.76

4

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

5

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

6

GEAR, PUMP DRIVE

(132-13178-01-00)

Unavailable

7

WASHER (688)

92990-08400-00

Unavailable

8

. NUT

95380-08700-00

Unavailable

9

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

PLATE, CAM THRUST

137-13148-00-00

Unavailable

12

WASHER, WAVE (137)

90206-11016-00

Unavailable

14

SPRING, COMPRESSION

(90501-02016-00)

Unavailable

15

PIN, DOWEL

(93602-04029-00)

Unavailable

16

GEAR, WORM WHEEL

(115-13124-60-00)

Unavailable

17

OIL SEAL

93104-04114-00

Unavailable

19

PIN,DOWEL (137)

93603-12030-00

Unavailable

20

. CIRCLIP, PLUNGER

93440-08001-00

Unavailable

21

SEAT, SPRING

(137-13134-00-00)

Unavailable

22

SPRING, PLNGR RTRN

(137-13135-00-00)

Unavailable

23

PLATE, WORM WHEEL

(137-13127-00-00)

Unavailable

24

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

25

. GASKET, PUMP CASE COVER

137-13142-00-00

Unavailable

27

. SPRING, TORSION (156-13145-00)

90508-10013-00

Unavailable

28

SHIM,PLUNGER

137-13137-00-10

Unavailable

29

PULLEY, ADJUSTING

(132-13144-00-00)

Unavailable

30

PLATE, ADJUSTING

137-13138-01-00

Unavailable

31

SHIM,PLUNGER

137-13137-00-10

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

NUT, HEXAGON (663)

95380-05600-00

Unavailable

34

. PIN

91608-20010-00

Unavailable

35

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

36

OIL SEAL (J10)

93101-10090-00

Unavailable

37

PLATE, STARTER

(137-13128-00-00)

Unavailable

38

. PIN, COTTER

91401-12018-00

Unavailable

39

BALL

93505-32002-00

Unavailable

40

SPRING, COMPRESSION

(90501-02017-00)

Unavailable

41

GASKET(3FP)

90430-06224-00

Unavailable

42

BOLT UNION 137131650000

90401-06001-00

Unavailable

43

GASKET 137131870000

90430-04004-00

Unavailable

44

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

45

GASKET(3FP)

90430-06224-00

Unavailable

46

BOLT, UNION

90401-06011-00

Unavailable

47

PIPE, DELIVERY 1

(183-13161-00-00)

Unavailable

48

PIPE, DELIVERY 2

(183-13171-00-00)

Unavailable

49

SPRING, OIL PIPE

(126-13184-00-00)

Unavailable

50

HOLDER, OIL PIPE

(293-13174-00-00)

Unavailable
