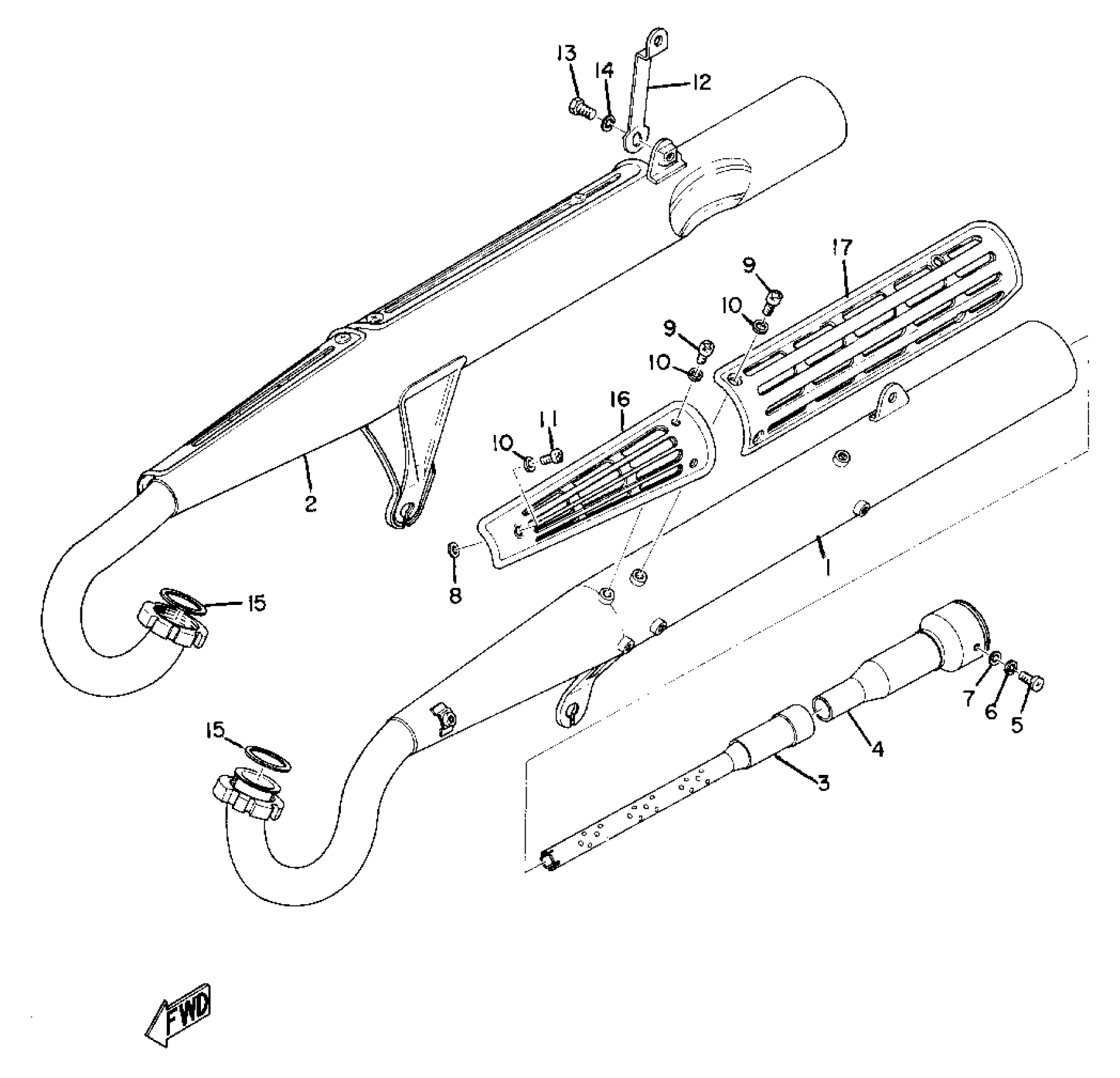

Yamaha AS2C (AS2C) 1969 MUFFLER Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(218-14610-30-00)

Unavailable

2

EXHAUST PIPE ASSEMBLY R

(218-14620-30-00)

Unavailable

3

SILENCER, EXHAUST

(218-14753-30-00)

Unavailable

4

PIPE, OUTLET

(178-14752-00-00)

Unavailable

5

SCREW, BIND(1JK)

98980-06010-00

$5.47

6

WASHER, SPRING

92995-06100-00

$2.95

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

8

WASHER, PLATE(3MT)

90202-05188-00

$5.76

9

SCREW, BIND(2TV)

98980-06008-00

$0.58

10

WASHER, PLATE(3MB)

90202-05187-00

$1.01

11

SCREW, BIND(1JK)

98980-06010-00

$5.47

12

STAY, MUFFLER 1

(183-14771-30-00)

Unavailable

13

BOLT, HEXAGON

97013-08016-00

$1.24

14

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

15

GASKET, EXHAUST PIPE

3MT-14613-00-00

$8.92

16

PROTECTOR, MUFF 1

(183-14718-30-00)

Unavailable

17

PROTECTER, MUFF 2

(183-14728-30-00)

Unavailable
