1969 Yamaha AS2C (AS2C) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

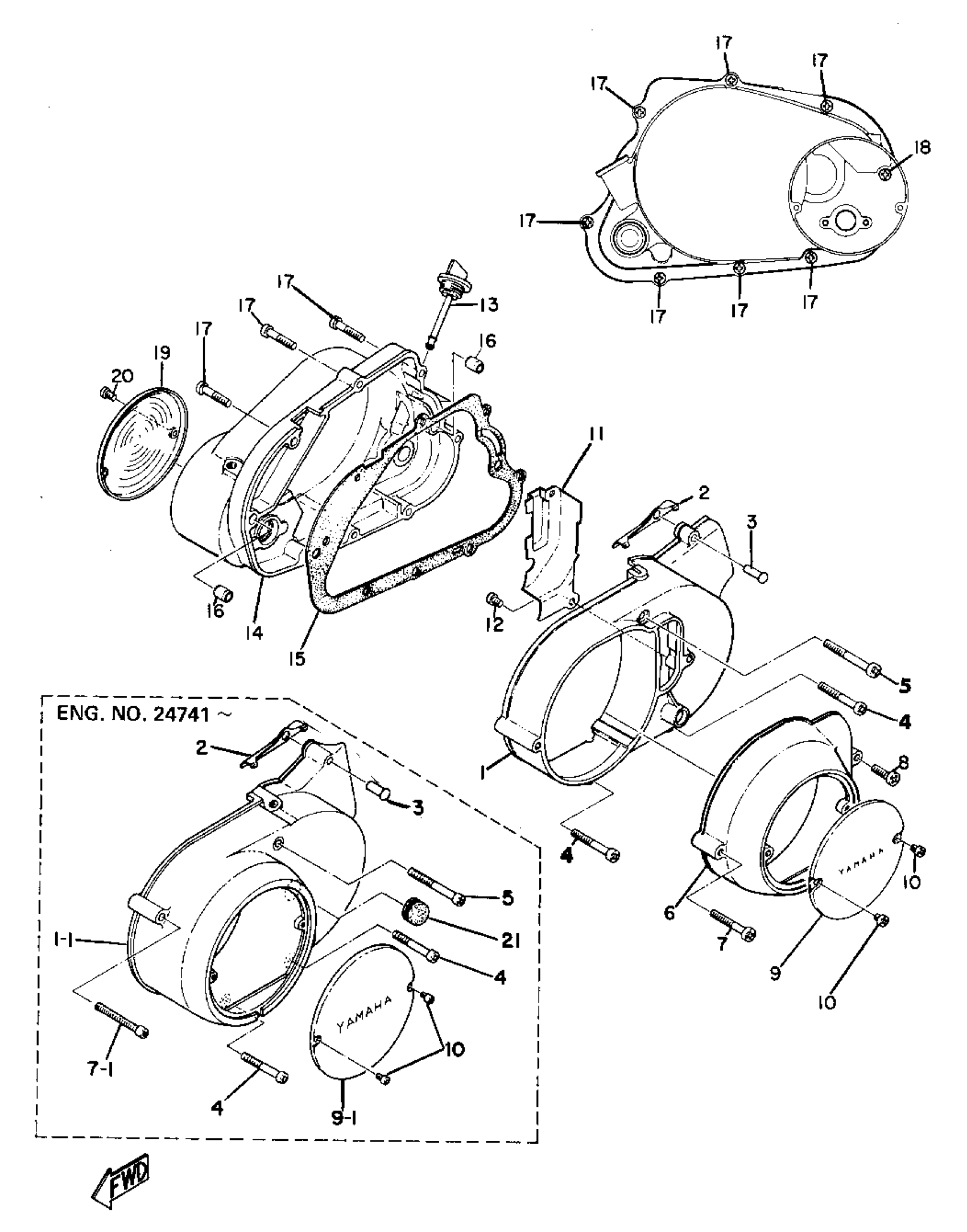

1969 Yamaha AS2C (AS2C) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRCS COVER ASSEMBLY L

(183-15410-01-00)

1
Out of stock

1

CRCS COVER ASSEMBLY L

(241-15410-00-00)

1
Out of stock

1

COVER,GENERATOR

372-15415-00-00

1
Out of stock

1

SCREW, PAN HEAD

98517-06140-00

1
Out of stock

2

COVER, CHAIN CASE

(183-15418-01-00)

1
Out of stock

3

RIVET

(90266-06005-00)

1
Out of stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

6

COVER, GENERATOR R

(183-15425-02-00)

1
Out of stock

7

SCREW,PAN

98507-06120-00

1
Out of stock

8

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

9

COVER, GENERATOR (1)

164-15415-00-00

1

$22.02

In stock

10

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

11

SEAL, DUST

(174-18428-00-00)

1
Out of stock

12

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

13

PLUG, OIL

(174-15363-00-00)

1
Out of stock

14

COVER, CRANKCASE R

(183-15421-01-00)

1
Out of stock

15

GASKET,CRCS COVER

132-15451-09-00

1
Out of stock

16

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock

17

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

18

SCREW PAN HEAD

98580-06040-00

—

$6.17

In stock

19

COVER, OIL PUMP

(132-15416-00-00)

1
Out of stock

20

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

21

COVER, CAP

(241-15417-00-00)

1
Out of stock
