HEAD LAMP, SPEEDOMETER & TAIL LAMP

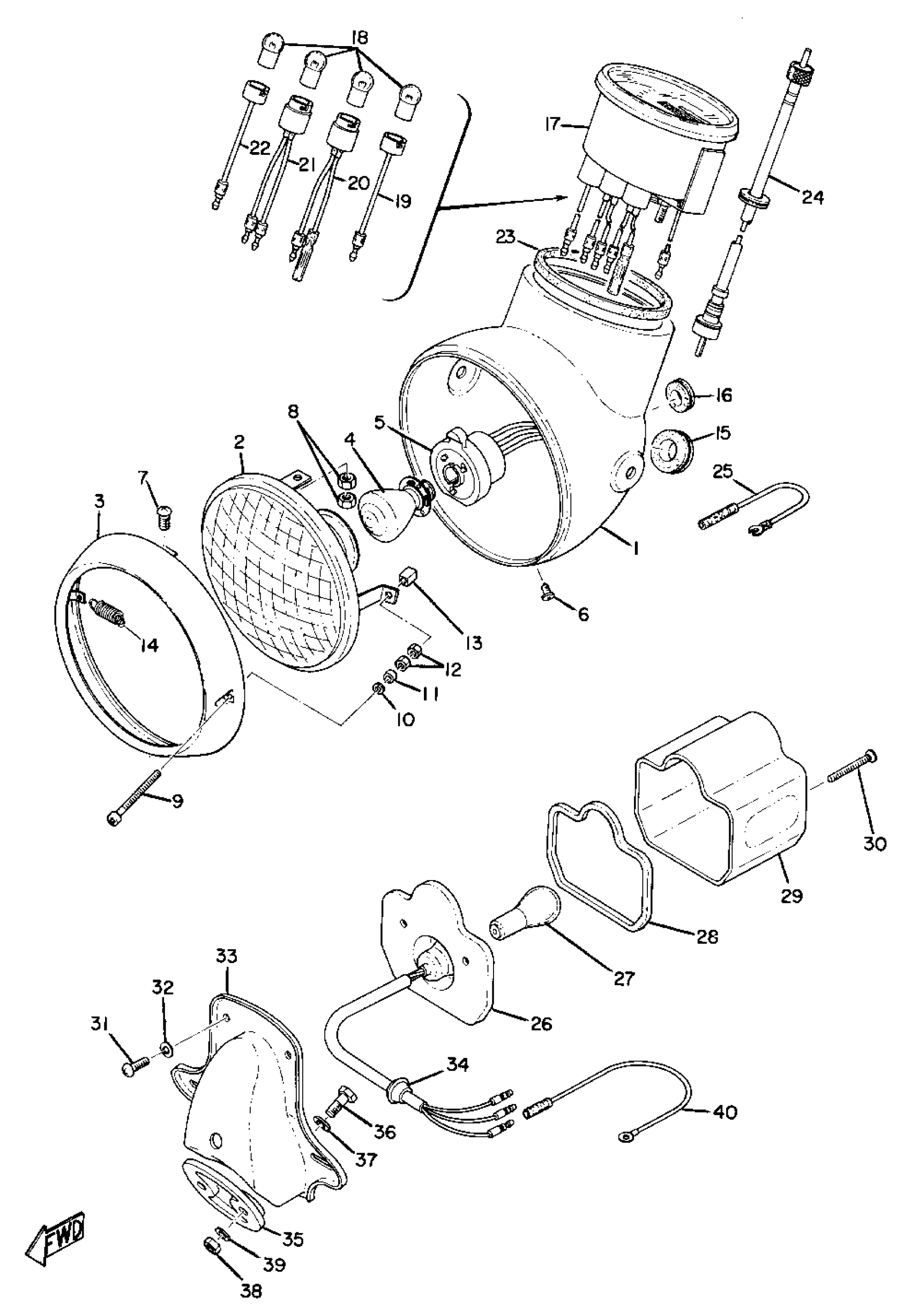

Yamaha AS2C (AS2C) 1969 HEAD LAMP, SPEEDOMETER & TAIL LAMP Diagram
#
1
BODY ASSEMBLY
(183-84330-00-62)
Unavailable
1
BODY ASSEMBLY
(183-84330-00-65)
Unavailable
1
TAILLIGHT UNIT ASSEMBLY
(202-84710-60-00)
Unavailable
2
LENS ASSEMBLY
(183-84320-60-00)
Unavailable
3
RIM, HEADLIGHT
(183-84315-61-00)
Unavailable
4
. BULB, HL12V35/35W
183-84314-60-00
Unavailable
5
SOCKET
(183-84312-60-00)
Unavailable
9
SCREW, RIM ADJUSTING
(198-84331-60-00)
Unavailable
11
. SPACER
132-84328-60-00
Unavailable
12
NUT(6L4)
95380-04700-00
Unavailable
14
SPRING
(132-84335-60-00)
Unavailable
15
GROMMET
(168-84354-00-00)
Unavailable
16
GROMMET
(183-84353-00-00)
Unavailable
17
SPEEDOMETER ASSEMBLY
(183-83510-70-00)
Unavailable
18
BULB (12V-3.4W)
123-83516-21-00
Unavailable
19
. SOCKET, METER
(164-83536-20-00)
Unavailable
20
SOCKET, NEUTRAL
(183-83537-20-00)
Unavailable
21
SOCKET, FLASHER
(183-83538-20-00)
Unavailable
22
SOCKET, HIGH-BEAM
(183-83529-70-00)
Unavailable
23
DAMPER
(183-83513-00-00)
Unavailable
24
SPEEDOMETER CABLE
167-83550-01-00
Unavailable
25
WIRE, EARTH
(173-84313-00-00)
Unavailable
26
. BASE, TAILLIGHT
(202-84711-60-00)
Unavailable
27
BULB(12V32/3CP)1157
137-84714-61-XX
Unavailable
28
SEAT, BASE
(168-84712-60-00)
Unavailable
29
. LENS, TAILLIGHT
(168-84721-60-00)
Unavailable
30
. SCREW, RIM ADJUSTING
3AA-84331-00-00
Unavailable
31
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
BRACKET, LICENSE
(164-84751-60-35)
Unavailable
34
GROMMET 152845180000
90480-12013-00
Unavailable
35
DAMPER
(174-84753-00-00)
Unavailable
36
BOLT 168217380000
90109-06017-00
Unavailable
37
WASHER, PLATE (5J0)
90201-085E6-00
Unavailable
38
NUT, HEXAGON
95380-06600-00
Unavailable
39
WASHER, SPRING
92995-06100-00
Unavailable
40
WIRE, EARTH LEAD
(183-84756-00-00)
Unavailable
