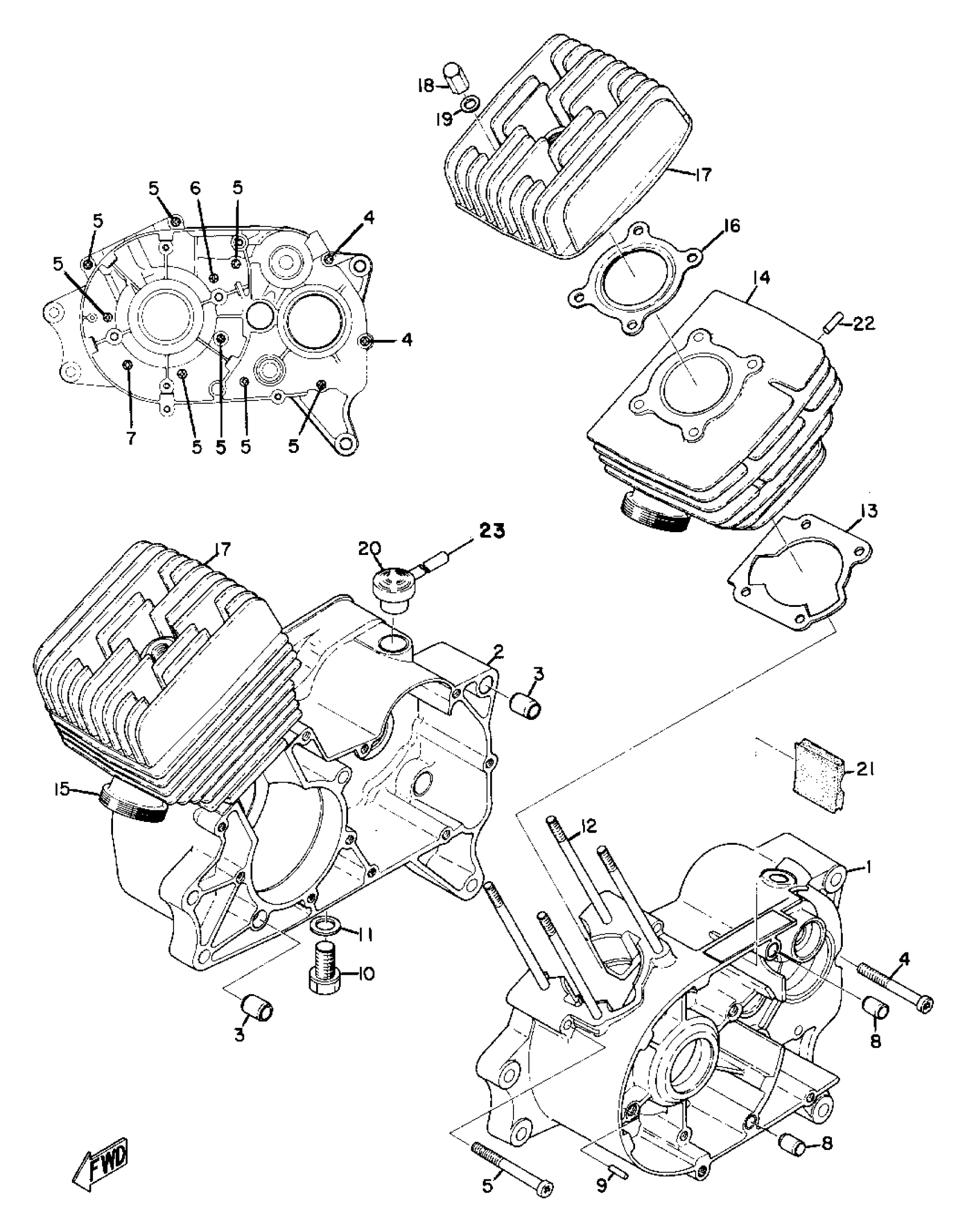

Yamaha AS2C (AS2C) 1969 CRANK CASE Diagram

#

Description
Price

1

CRANKCASE 1

(183-15111-02-00)

Unavailable

2

CRANKCASE 2

(183-15121-02-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

5

SCREW, BIND (JH1)

98580-06560-00

Unavailable

6

SCREW PAN HEAD

98580-06570-00

$18.99

7

SCREW, PAN HEAD

98580-06580-00

Unavailable

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

PIN, DOWEL

93603-14026-00

$8.49

10

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

12

BOLT, STUD 1221136100

90116-06100-00

$9.49

13

GASKET,CYLINDER

183-11351-09-00

Unavailable

14

CYLINDER 1

(183-11311-01-00)

Unavailable

15

CYLINDER 2

(183-11321-01-00)

Unavailable

16

GASKET, CYLINDER HEAD 1

183-11181-00-00

Unavailable

17

HEAD, CYLINDER 1

(217-11111-00-00)

Unavailable

18

NUT CAP 126111716000

90176-06002-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

BREATHER

583-15371-00-00

Unavailable

20

BREATHER

583-15371-00-00

Unavailable

21

GROMMET

(241-15357-01-00)

Unavailable

22

PIN, DOWEL

93602-10061-00

Unavailable

23

HOSE(7EG)

90446-07241-00

Unavailable
