- ARO 3 PRO/ARO 3 S PRO/ARO 3 PREMIUM/ARO 3 S PREMIUM ALL OPTIONS (R03) - J23UNCX/UNFX/UNGX/UNHX
SUSPENSION, SHOCK, FOX QS3 NAR 7046026 (3 S PREMIUM) - J23UNHX (602314)

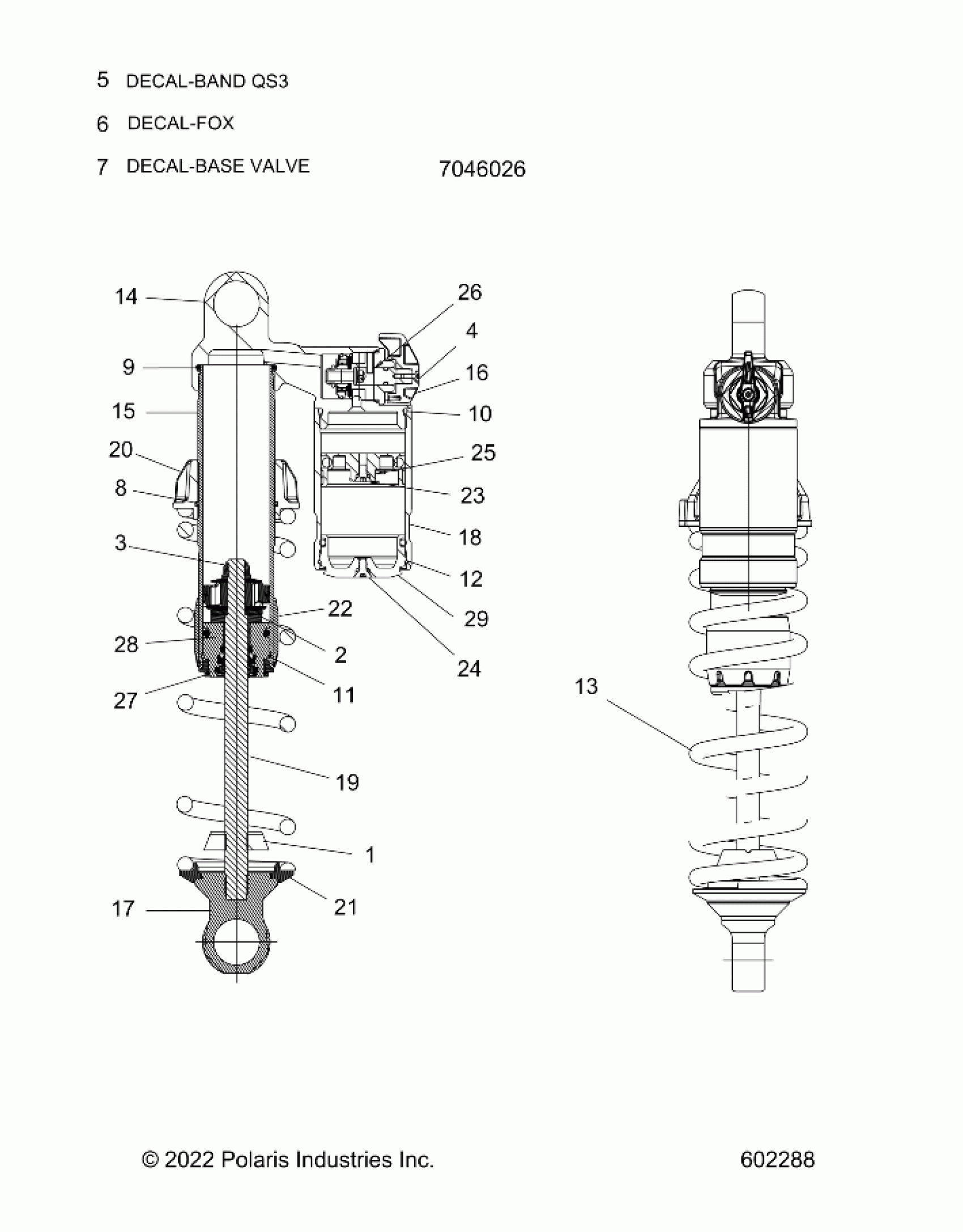

Polaris ARO 3 PRO/ARO 3 S PRO/ARO 3 PREMIUM/ARO 3 S PREMIUM ALL OPTIONS (R03) - J23UNCX/UNFX/UNGX/UNHX SUSPENSION, SHOCK, FOX QS3 NAR 7046026 (3 S PREMIUM) - J23UNHX (602314) Diagram
#
Description
Price
-
SHOCK-ARO S FOX QS3 NAR
7046026
Unavailable
1
Bumper, Rubber, Top Out
1500074
$5.65
2
BUMPER, .498x.40TLG
1501102
$12.94
3
NUT, LOCK, 3/8-24
1500016
$12.79
4
SCREW, #4, SS PAN
1501011
$13.59
5
DECAL-BAND QS3
1501239
Unavailable
6
DECAL-RESERVOIR
1501366
$39.99
7
DECAL-3 POS. BASE VALVE
1501367
$31.99
8
O-RING
1500997
$27.99
9
O-RING,.103W-1.549ID
1500108
$10.99
10
O-RING,.103W-1.737ID
1500623
$6.39
11
RING-RETAINING, WIRE 1.455
1504494
$4.03
12
RING-RETAINING, WIRE 2.050
1501015
$9.59
13
SPRING-COILOVER, 7.25L
1504517
Unavailable
14
BODY CAP
-------
Unavailable
15
BODY, 1.459x6.60TLG
1501200
$179.99
16
KNOB, DAMP. ADJ, BLK
1501108
$20.22
17
EYELET-SHAFT
1501370
$104.99
18
RESERVOIR, BLK
1501109
$111.33
19
SHAFT-
1501243
Unavailable
20
RING-SPRING PRELOAD
1501236
$32.37
21
RETAINER-SPRING, SLOTTED
1501245
$34.99
22
GUIDE, SPRING
1500930
$39.99
23
SCREW - BLACK, RES.
1501303
$26.39
24
SCREW
-------
Unavailable
25
ASM-PISTON, FLOATING
1501246
$59.99
26
DAMPING ADJUSTMENT ASSEMBLY
1501186
$280.78
27
ASM., BRNG. CAP, W/O-RING
1501113
$49.99
28
ASM., BEARING, FIST
1501114
$139.99
29
END CAP ASM.
-------
Unavailable
