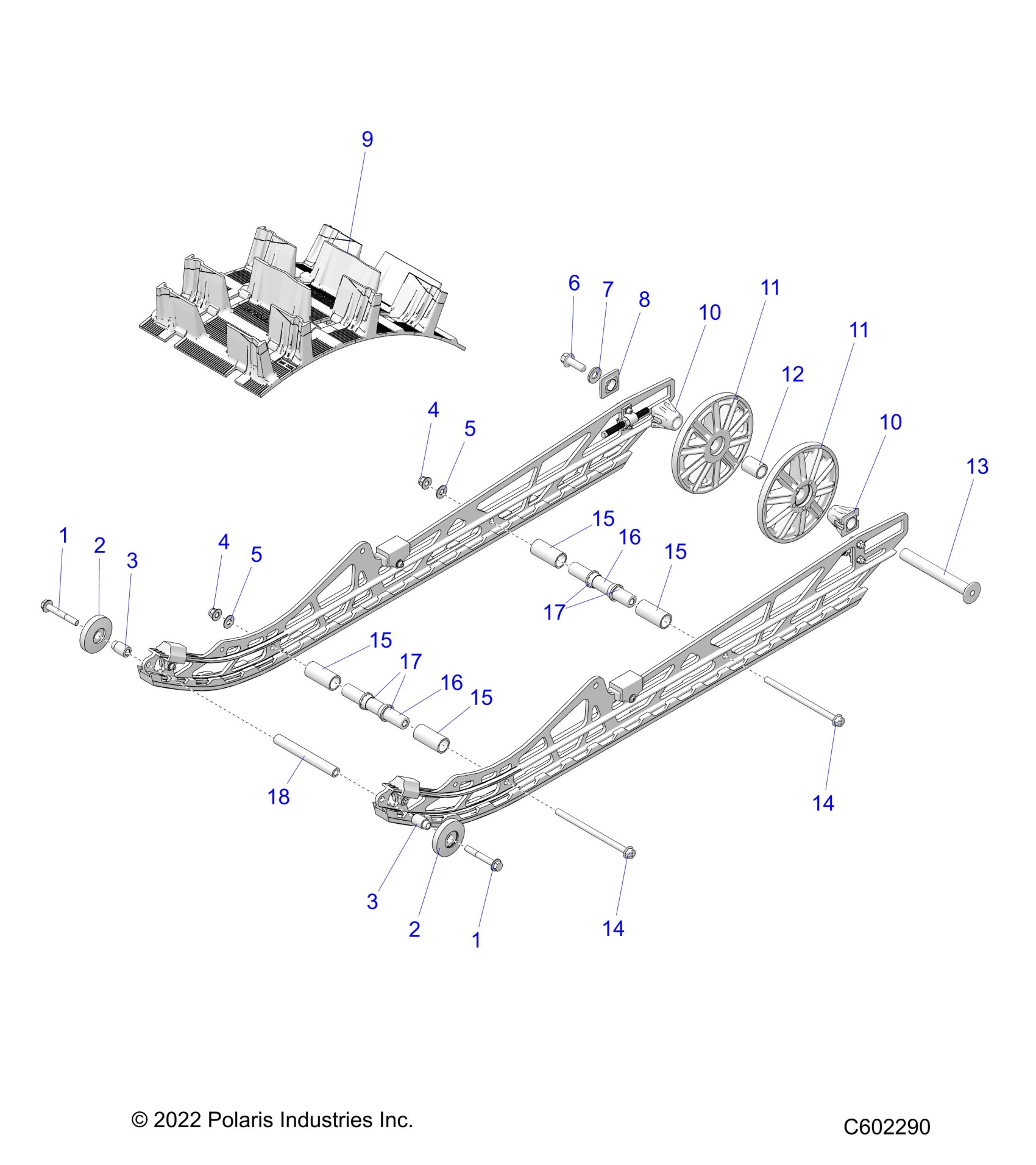

Polaris ARO 3 PRO/ARO 3 S PRO/ARO 3 PREMIUM/ARO 3 S PREMIUM ALL OPTIONS (R03) - J23UNCX/UNFX/UNGX/UNHX SUSPENSION, REAR ASM. - J23UNC/UNF/UNG/UNH (C602290) Diagram

SCR-HXFL-M10X1.5X70 10.9 ZFB

7528192

Unavailable

SCR-HXFL-M10X1.5X70 10.9 ZFB

7528192

Unavailable

ASM-WHEEL CARRIER 66.68

1590675

Unavailable

BEARING-6002 LLU

3514639

Unavailable

RING-RETAINING,1.25 ID HSNG

7710539

$2.39

ASM-WHEEL CARRIER 66.68

1590675

Unavailable

BEARING-6002 LLU

3514639

Unavailable

RING-RETAINING,1.25 ID HSNG

7710539

$2.39

SHAFT-WHEEL MOUNT

5144817

Unavailable

SHAFT-WHEEL MOUNT

5144817

Unavailable

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

SCR-M12X1.75X35 HXFL ZOD P30

7520123

$8.79

WSHR-DOMED 29X13X3 ZC DIN6796

7556929

$3.99

SPACER, IDLER

5436496

$6.39

TRACK-129X3.0X11.5 NAR TSLD

5417638

Unavailable

SPACER-IDLER

5432535

$11.99

SPACER-IDLER

5432535

$11.99

ASM., WHEEL, 7.25" [INCL. BEARING AND RETAINING RING]

1590431-070

$67.76

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

BEARING [1 PER WHEEL]

3514384

$19.84

ASM., WHEEL, 7.25" [INCL. BEARING AND RETAINING RING]

1590431-070

$67.76

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

BEARING [1 PER WHEEL]

3514384

$19.84

SPACER-AXLE REAR CENTER

5143069

Unavailable

AXLE-REAR NARROW

5144508

Unavailable

SCR-HXFL-M10X1.5X175,8.8,ZY3

7520971

$10.39

SCR-HXFL-M10X1.5X175,8.8,ZY3

7520971

$10.39

SPACER-SHOCK LOWER NARROW

5522334

Unavailable

SPACER-SHOCK LOWER NARROW

5522334

Unavailable

SPACER-SHOCK LOWER NARROW

5522334

Unavailable

SPACER-SHOCK LOWER NARROW

5522334

Unavailable

SHAFT-LOWER SHOCK NAR

5144509

Unavailable

SHAFT-LOWER SHOCK NAR

5144509

Unavailable

BUSHING-SHOCK FLANGE CHAMFER

5459489

Unavailable

BUSHING-SHOCK FLANGE CHAMFER

5459489

Unavailable

SHAFT-CROSS RAIL FRONT NARROW

5143700

Unavailable
