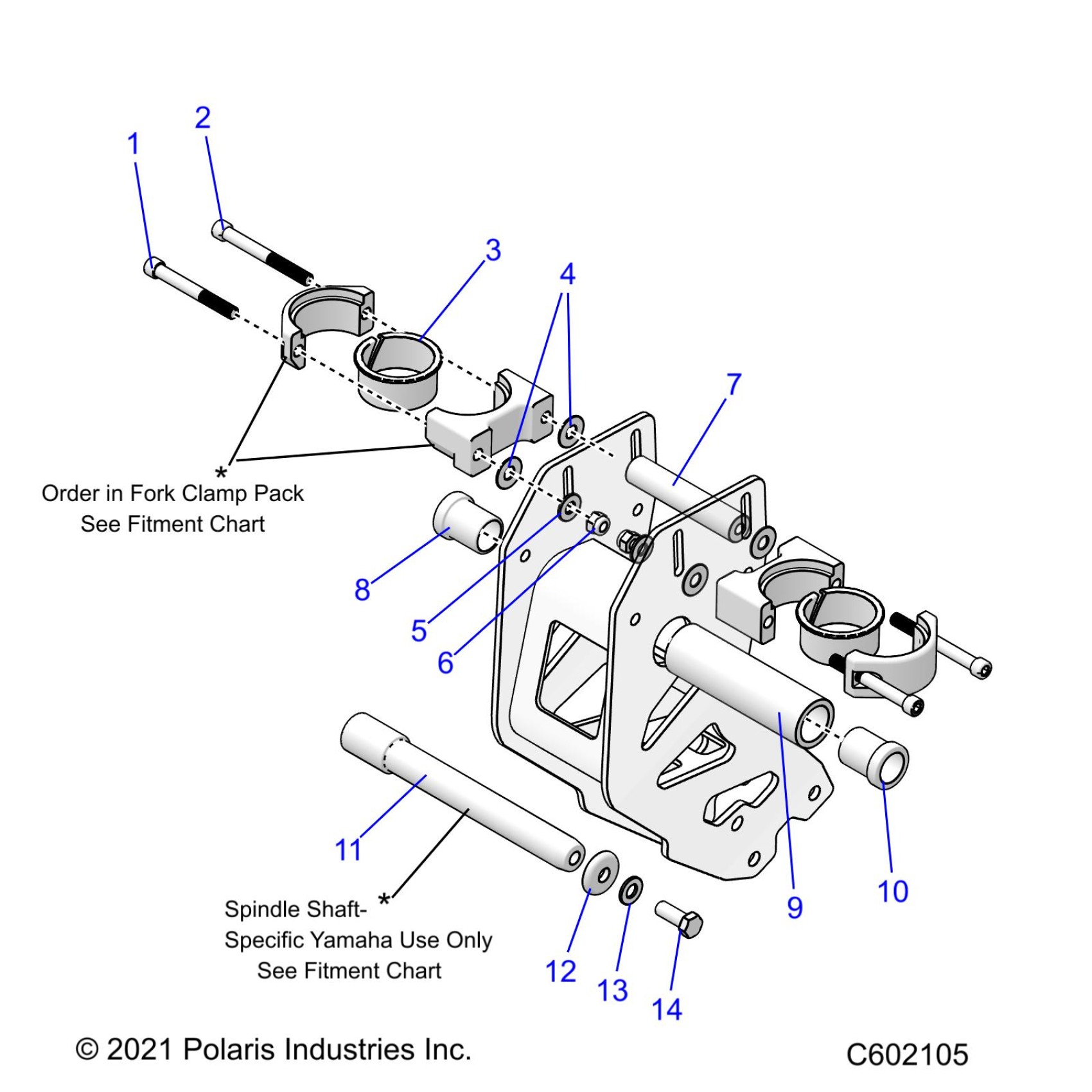

Polaris ARO 3 PRO/ARO 3 S PRO/ARO 3 PREMIUM/ARO 3 S PREMIUM ALL OPTIONS (R03) - J23UNCX/UNFX/UNGX/UNHX INSTALL KIT, SPINDLE - J23UNCX/UNFX/UNGX/UNHX (C602105) Diagram

#

Description

Price

1

SCREW-SH-5/16-18x2.75 ZY3

7520652

Unavailable

2

SCREW-SH-5/16-18x3 ZY3

7520653

Unavailable

3

BUSHING-SPLIT FORK CLAMP

5454081

Unavailable

4

SHIM, 3/8 QTY. AS REQ. FOR HONDA

7557031

Unavailable

5

WSHR-.344X.750X.062-Y

7555954

$4.79

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

SHAFT- SPINDLE SUPPORT CROSS

5141204

Unavailable

8

SPINDLE REDUCER, RH SEE FITMENT CHART

-------

Unavailable

9

SPINDLE REDUCER, CENTER SEE FITMENT CHART

-------

Unavailable

10

SPINDLE REDUCER, LH SEE FITMENT CHART

-------

Unavailable

11

SHAFT-YAM.14-15 YZF SPINDLE SPECIFIC YAMAHA USE ONLY

5141869

Unavailable

12

WASHER. LIMITER STRAP/SLIDE STOP WASHER

7557046

Unavailable

13

WASHER-3/8 SPRING-LOCK-MED-Y

7552603

$1.49

14

BOLT-3/8-16X1" HXHD,GR5,YZP

7520631

Unavailable
