- ARO 3 PRO/ARO 3 S PRO/ARO 3 PREMIUM/ARO 3 S PREMIUM ALL OPTIONS (R03) - J23UNCX/UNFX/UNGX/UNHX
CHASSIS, SUB FRAME ASM. - J23UNC/UNF/UNF/UNH (C602300)

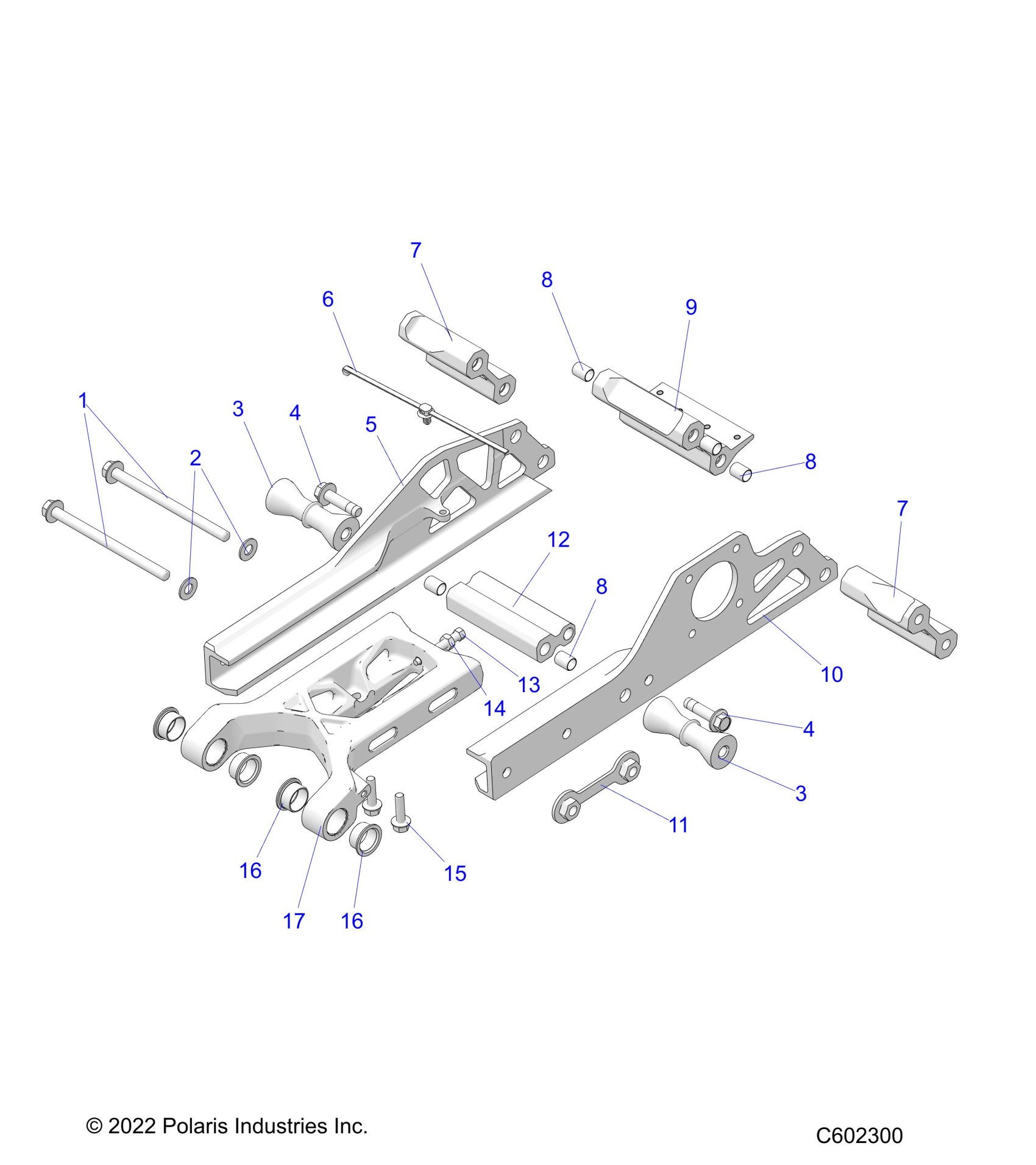

Polaris ARO 3 PRO/ARO 3 S PRO/ARO 3 PREMIUM/ARO 3 S PREMIUM ALL OPTIONS (R03) - J23UNCX/UNFX/UNGX/UNHX CHASSIS, SUB FRAME ASM. - J23UNC/UNF/UNF/UNH (C602300) Diagram
#
1
SCR-HXFL-M10X1.5X145,8.8,ZPC
7519954
Unavailable
2
WASHER-10.5X22.0X1.6 SPC
7556155
$5.22
3
SPACER-TUNNEL SIDE FRT RIOT B BLACK COLOR OPTION
5144093-458
Unavailable
3
SPACER-TUNNEL SIDE FRT RIOT W WHITE COLOR OPTION
5144093-133
Unavailable
3
SPACER-TUNNEL SIDE FRT RIOT R RED COLOR OPTION
5144093-293
Unavailable
3
SPACER-TUNNEL SIDE FRT RIOT OB ORANGE BURST COLOR OPTION
5144093-647
Unavailable
3
SPACER-TUNNEL SIDE FRT RIOT B BLACK COLOR OPTION
5144093-458
Unavailable
3
SPACER-TUNNEL SIDE FRT RIOT W WHITE COLOR OPTION
5144093-133
Unavailable
3
SPACER-TUNNEL SIDE FRT RIOT R RED COLOR OPTION
5144093-293
Unavailable
3
SPACER-TUNNEL SIDE FRT RIOT OB ORANGE BURST COLOR OPTION
5144093-647
Unavailable
4
SCR-HXFL M10X1.5X40 10.9 ZB P8
7521118
$3.19
4
SCR-HXFL M10X1.5X40 10.9 ZB P8
7521118
$3.19
5
FRAME-SUB MACH SHORT RH
5142706
Unavailable
6
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
7
BRACE-SUBFRAME SIDE REAR BLK BLACK COLOR OPTION
5142704-458
Unavailable
7
BRACE-SUBFRAME SIDE REAR WHT WHITE COLOR OPTION
5142704-133
Unavailable
7
BRACE-SUBFRAME SIDE REAR RED RED COLOR OPTION
5142704-293
Unavailable
7
BRACE-SUBFRAME SIDE REAR ORNG BRST ORANGE BURST COLOR OPTION
5142704-647
Unavailable
7
BRACE-SUBFRAME SIDE REAR BLK BLACK COLOR OPTION
5142704-458
Unavailable
7
BRACE-SUBFRAME SIDE REAR WHT WHITE COLOR OPTION
5142704-133
Unavailable
7
BRACE-SUBFRAME SIDE REAR RED RED COLOR OPTION
5142704-293
Unavailable
7
BRACE-SUBFRAME SIDE REAR ORNG BRST ORANGE BURST COLOR OPTION
5142704-647
Unavailable
8
DOWELL-HOLLOW 13X16.5
7662404
Unavailable
8
DOWELL-HOLLOW 13X16.5
7662404
Unavailable
8
DOWELL-HOLLOW 13X16.5
7662404
Unavailable
9
BRACE-SUBFRAME CNTR R TAIL BLACK BLACK COLOR OPTION
5142703-458
Unavailable
9
BRACE-SUBFRAME CNTR R TAIL WHT WHITE COLOR OPTION
5142703-133
Unavailable
9
BRACE-SUBFRAME CNTR R TAIL RED RED COLOR OPTION
5142703-293
Unavailable
9
BRACE-SUBFRAME CNTR R TAIL ORNG BRST ORANGE BURST COLOR OPTION
5142703-647
Unavailable
10
FRAME-SUB MACH SHORT LH
5142705
Unavailable
11
NUT PLATE, MBLK
1025326-458
Unavailable
12
BRACE-SUBFRAME CENTER MACH
5142765
Unavailable
13
SCR-HH-M8X1.25X50 FULL DP ZB
7520717
Unavailable
14
NUT-HEX-M8X1.25 8 ZPB.
7547076
$2.60
15
SCREW-HXFL-M8X1.25X30 10.9 ZPB
7518884
$1.99
16
BUSHING-FRAME MOUNT QTY. 2, OUTSIDE BUSHINGS ONLY FOR SHERCO SPECIFIC FORGING
5453986
Unavailable
16
BUSHING-FRAME MOUNT IGUS INSIDE BUSHINGS ONLY FOR SHERCO SPECIFIC FORGING
5456791
Unavailable
16
BUSHING-FRAME MOUNT QTY. 2, OUTSIDE BUSHINGS ONLY FOR SHERCO SPECIFIC FORGING
5453986
Unavailable
16
BUSHING-FRAME MOUNT IGUS INSIDE BUSHINGS ONLY FOR SHERCO SPECIFIC FORGING
5456791
Unavailable
17
FRAME-MOUNT FRONT MACH
5141041
Unavailable
