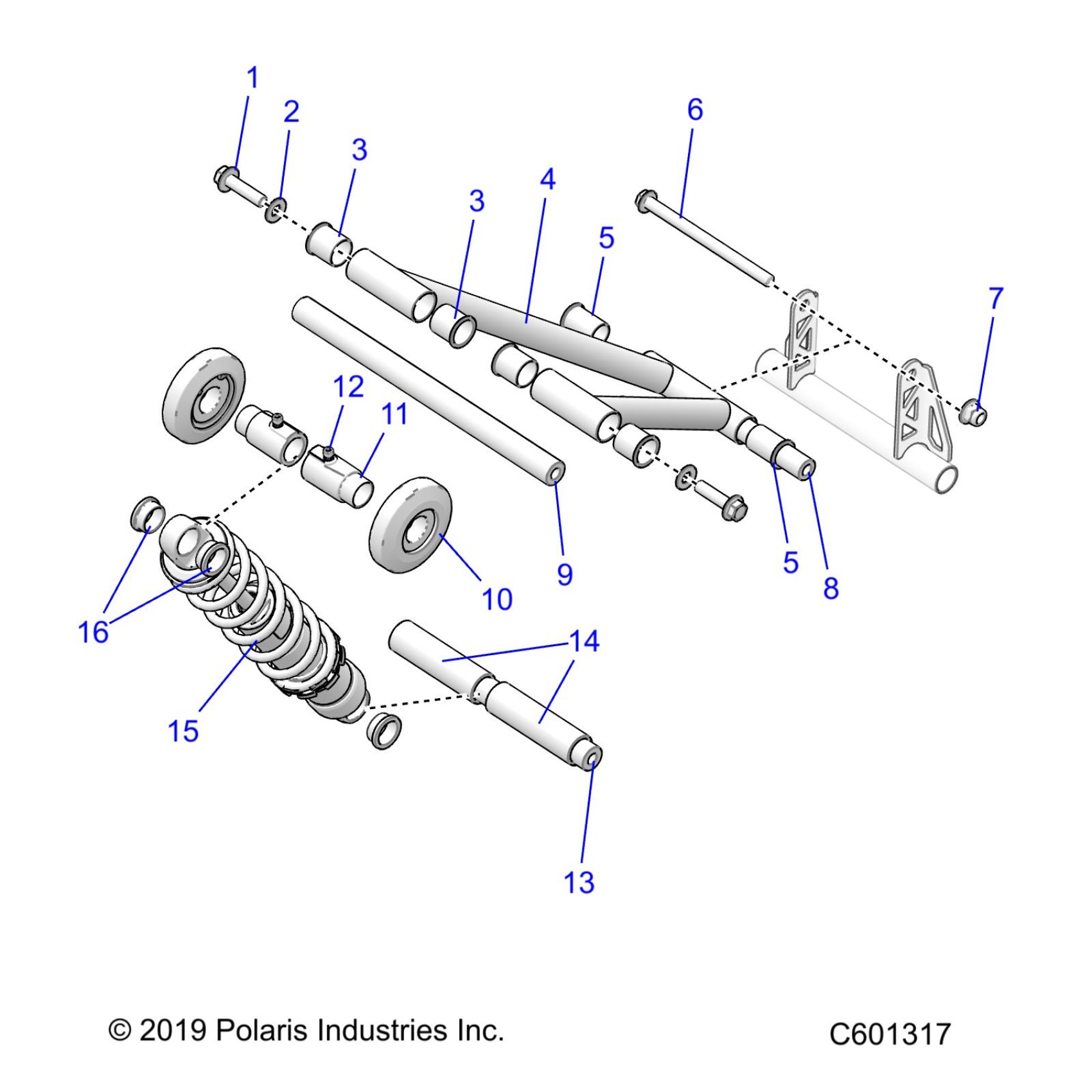

Polaris ARO 129 SPORT/129 S SPORT (R01) - J24UKBXXXA/UKEXXXA SUSPENSION, TORQUE ARM, REAR, AND SHOCK MNTG. - J24UKBX/UKEX (C601317) Diagram

#

Description

Price

1

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

2

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

3

BUSHING-SUSPENSION MOUNT

5453941

Unavailable

3

BUSHING-SUSPENSION MOUNT

5453941

Unavailable

4

REAR TORQUE ARM-MBLK TORQUE ARM ONLY

1543881-458

Unavailable

5

BUSHING-LWR TORQUE ARM

5453939

Unavailable

5

BUSHING-LWR TORQUE ARM

5453939

Unavailable

6

BOLT-M10X1.25X145,HXFLG-OLV D

7518858

$9.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

8

SHAFT-PIVOT ARM

5141372

Unavailable

9

SHAFT-SUSPENSION CROSS

5141050

Unavailable

10

WHEEL- 3.25"

1590579

Unavailable

11

BUSHING-CARRIER WHEEL SPACER

5454341

Unavailable

12

SET SCREW

7520679

Unavailable

13

SHAFT-LOWER SHOCK HOLLOW

5142862

Unavailable

14

SPACER-SHOCK CENTERING LOWER

5522312

Unavailable

15

SHOCK [SEE SUSPENSION, SHOCK PAGE FOR SVC PARTS]

-------

Unavailable

16

BUSHING-SHOCK FLANGE CHAMFER

5459489

Unavailable
