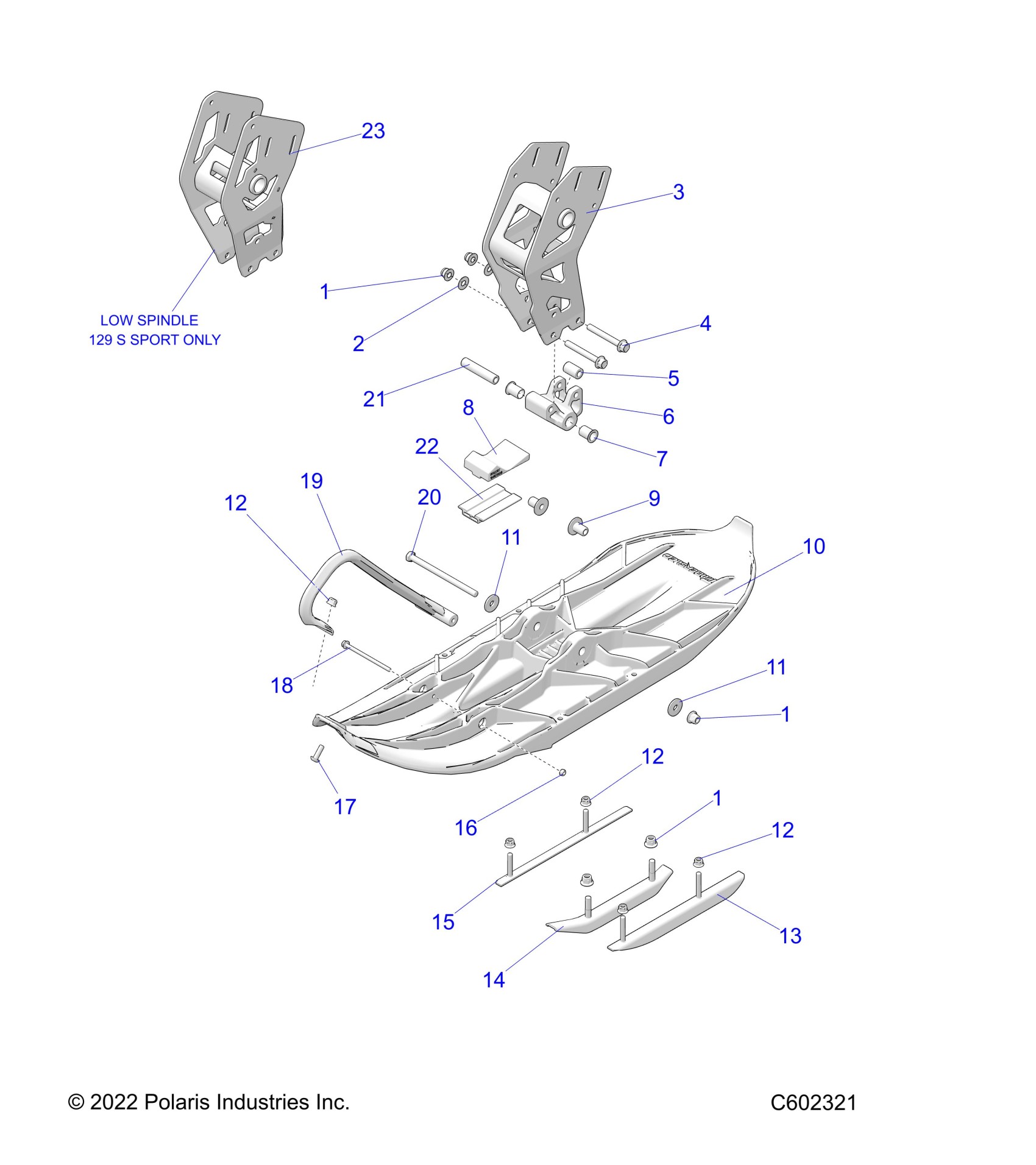

Polaris ARO 129 SPORT/129 S SPORT/137 PREMIUM (R01) - J23UKBX/UKEX/USGX STEERING, SKI ASM. - J23UKBX/UKEX/USGX (C602321) Diagram

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

SPINDLE, LWT BLACK UKBXXXA AND USGXXXT MODELS ONLY

1824637-458

Unavailable

SCR-HXFL-M10X1.5X80 10.9 ZY3

7519143

$10.39

SPACER-SPINDLE BLOCK CENTER

5141778

Unavailable

ASM-BLOCK SPINDLE WIDE [INCL. 7]

1830003

Unavailable

BUSHING-SKI PIVOT

5438460

$15.99

STOP-SKI RUBBER WIDE TSLD

5417309

Unavailable

BUSHING-PLASTIC SKI METRIC

5136908

$15.99

ASM-SKI, 11.5 WIDE HD, BLK [INCL. 9]

1824847-070

Unavailable

WASHER-.406X1.25X.125 BELLE-Y

7556130

$6.39

WASHER-.406X1.25X.125 BELLE-Y

7556130

$6.39

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SKAG-LH HARD ECOAT

1824919-329

Unavailable

SKAG-CENTER FORMED E-COAT

1825004-329

Unavailable

SKAG-RH HARD ECOAT

1824920-329

Unavailable

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

SCR-HXFL-M6X1.0X105 8.8 ZOD

7520233

$6.39

TOE-PLASTIC SKI,BLK

5435681-070

$40.46

SCR-HH M10X1.5X155 8.8 ZOD

7519098

$12.79

BUSHING-15.88X10.13X76.20

5136910

$7.99

BRKT-SUPPORT SKI RUBBER

5143604

Unavailable

WELD-SPINDLE LOW BLK UKEXXXA MODEL ONLY

1824944-458

Unavailable
