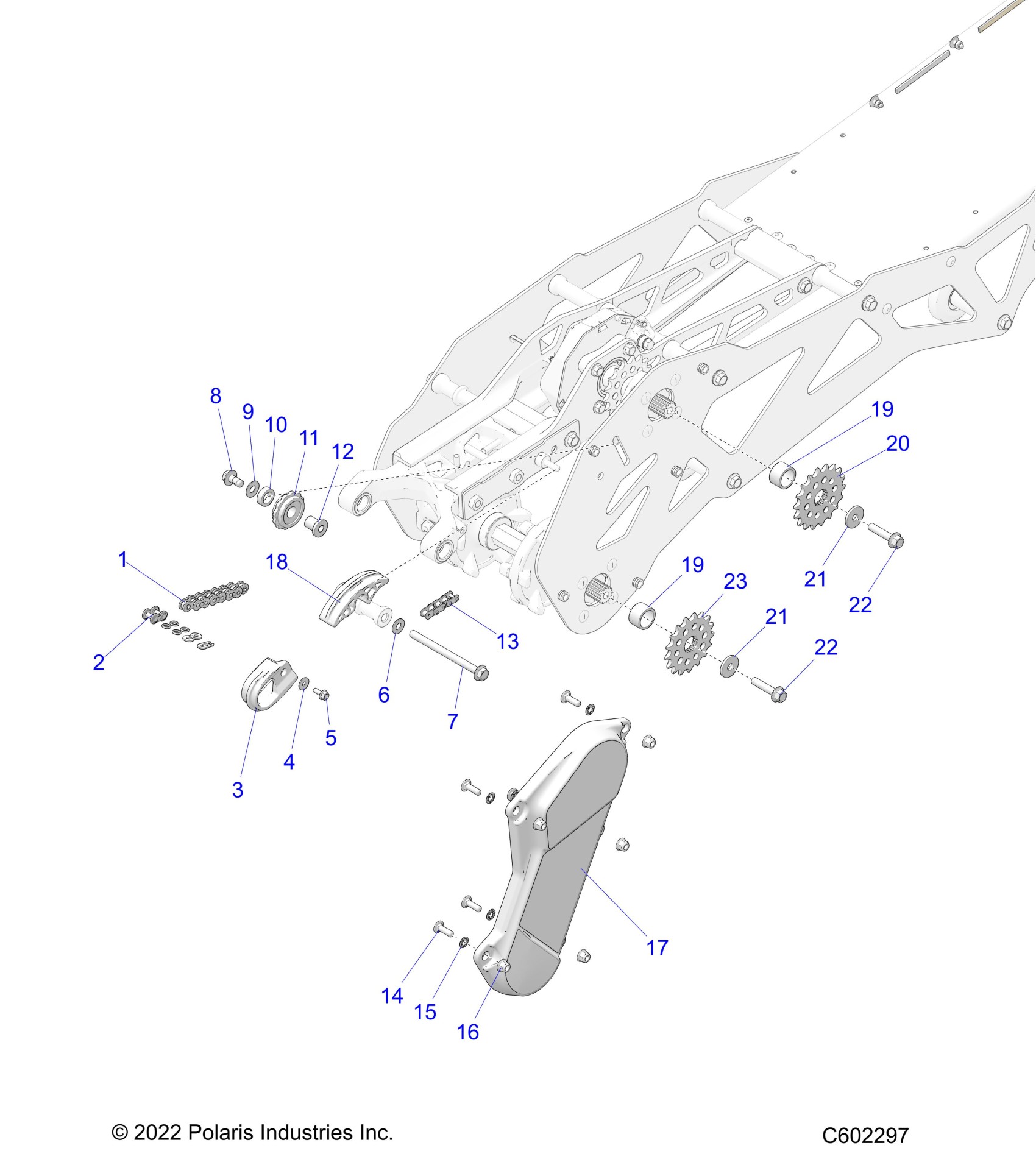

Polaris ARO 129 SPORT/129 S SPORT/137 PREMIUM (R01) - J23UKBX/UKEX/USGX DRIVE TRAIN, CHAIN DRIVE - J23UKBX/UKEX/USGX (C602297) Diagram

CHAIN-ENGINE 520P 70 W/ML ORNG [INCL. MASTER LINK]

3222352

Unavailable

LINK-MASTER NAXR "R"

2208962

Unavailable

K-CHAIN SLIDER FRONT SVC [INCL. 4,5]

2208727

Unavailable

ASM_SLIDER CHAIN FRONT MOD [SHERCO OPTION ONLY, INCL. 4,5]

2638899

Unavailable

WASHER-6.4X18.0X1.6 ZC

7556565

$2.39

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

SCR-HXFL-M10X1.5X130 ZBP80

7521116

Unavailable

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

SPACER-CHAIN CASE ROLLER

5141525

Unavailable

IDLER-SPROCKET CHAIN CASE

5458931

Unavailable

MOUNT-CHAIN CASE ROLLER

5141351

Unavailable

CHAIN-CASE 520P 52 CONT ORING

3222351

Unavailable

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7520297

$4.99

RETAINER-BOLT PUSHNUT M8X1.25

7710871

Unavailable

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

ASM-COVER CHAINCASE EXP

2637605

Unavailable

SLIDER-CHAIN FRAME PK

5457966

Unavailable

TUBE-SPACER LH

5141032

Unavailable

TUBE-SPACER LH

5141032

Unavailable

SPROCKET-SPLINED 16T 520 [OPTION]

3222291

Unavailable

SPROCKET-17T 520 SLW HD [OPTION]

3222362

Unavailable

SPROCKET-18T 520 SLW HD

3222363

Unavailable

WSHR-10.5X31.8X3.43 ZOD HRD

7556800

$7.19

WSHR-10.5X31.8X3.43 ZOD HRD

7556800

$7.19

SCR-HXFL-M10X1.25X45 ZOD P30

7520187

$3.99

SCR-HXFL-M10X1.25X45 ZOD P30

7520187

$3.99

SPROCKET-SPLINED 16T 520 [OPTION]

3222291

Unavailable

SPROCKET-17T 520 SLW HD

3222362

Unavailable

SPROCKET-18T 520 SLW HD [OPTION]

3222363

Unavailable
